Replaceable Hepa Filter Housing Box Cleanroom High Efficiency Air Supply

Product Details:
Place of Origin: china
Brand Name: alphaclean
Model Number: customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Polywood packing
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 1000sets
  • Detail Information
  • Product Description

Detail Information

HEPA Filter: Mini Pleat HEPA Filter Material: Extruded Aluminum
Inlet Duct Diameter: 250mm Or Others Air Volume: 1000m3/h
Gasket: EVA 5mm Name: HEPA Filter Boxes
High Light:

250mm Hepa Filter Housing Box


1000m3/h Hepa Filter Housing Box


Extruded Aluminum HEPA Filter Boxes

Product Description

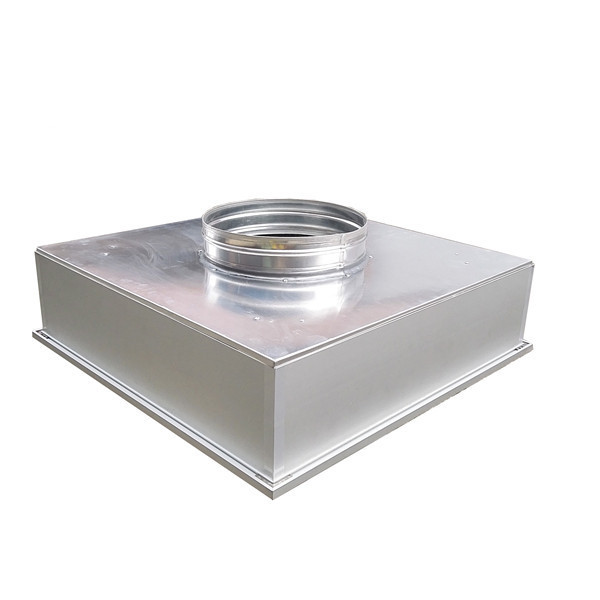

Cleanroom High Efficiency Air Supply Housing With Replaceable HEPA Filter



casing: extruded Aluminum frame

ceiling connect plate: galvanized or cooled-roll steel

Sealant: polyurethane

separator: Hot-melt

Gasket: EVA 5mm

Filter media:mini pleat Glass fiber

thermal insulation PEF fiber: on request

distribution plate: on request

Duct: 8cm height,

Diameter : 250 mm (10 inches )or 300 mm(12 inches )

(others duct diameter or request ; inlet collar designed

with continuous rib to help retain the ductwork on collar.)

Use the highest temperature, humidity:80℃,80%


     Optional: Alternative frame materials and size available on request.


Outside dimensions


Rated air flow


Initial resistance




Dust capacity


CYH-10J 610×610×150 1000 ≤220 ≥99.99 600
CYH-15J 915×610×150 1500 ≤220 ≥99.99 900
CYH-18J 1170×570×150 1800 ≤220 ≥99.99 1070
CYH-20J 1220×610×150 2000 ≤220 ≥99.99 1200
