Product Details:
|
|
| Place of Origin: | china |
|---|---|
| Brand Name: | alphaclean |
| Model Number: | customized |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Polywood packing |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000sets |
|
Detail Information |
|||
| HEPA Filter: | Mini Pleat HEPA Filter | Material: | Cold Rolled Steel Coated Casing |
|---|---|---|---|
| Diffusing Plate: | Cold Rolled Steel With Spray Coated | Air Volume: | 1000 M3/h |
| Air Supply Duct: | Top Or Side | Air Valve: | No |
| High Light: | Duct HEPA Filter Boxes,Cold Rolled Steel HEPA Filter Boxes,Laminar Flow Diffuser With Hepa Filter |
||
Product Description
casing:extruded Aluminum frame
ceiling connect plate: galvanized or cooled-roll steel
Sealant:polyurethane
separator:Hot-melt
Gasket:EVA 5mm
Filter media:mini pleat Glass fiber HEPA filter
thermal insulation PEF fiber : on request
distribution plate: on request
Duct: 8cm height,
Diameter : 250 mm (10 inches )or 300 mm(12 inches )
(others duct diameter or request ; inlet collar designed
with continuous rib to help retain the ductwork on collar.)
Use the highest temperature, humidity:80℃,80%

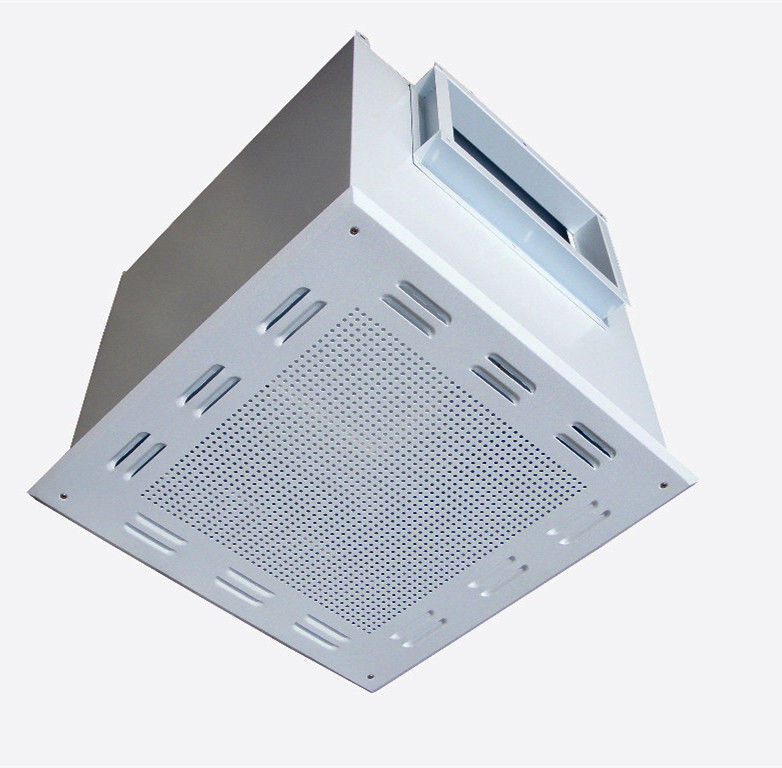

Cold Rolled Steel Duct HEPA Filter Boxes Laminar Flow Diffuser
Duct HEPA Laminar Flow Diffuser With High Efficiency Filter
Application :
Applied to the end filtration of high civilian or industrial clean site for cleanliness.such as: Electronics,semiconductor, precision machinery, pharmaceutical, hospital, food and other industries.
The box body is made of high quality cold rolled steel sheet.
Surface electrostatic spraying
easy to install and maintain
compact structure casing design as the clean room may be limited by the building's height
side or top inlet duct for choosing
The diffuser panels on the outlet surface are aluminium sprayed, cold rolled steel sprayed or stainless steel.
casing:extruded Aluminum frame
ceiling connect plate: galvanized or cooled-roll steel
Sealant:polyurethane
separator:Hot-melt
Gasket:EVA 5mm
Filter media:mini pleat Glass fiber HEPA filter
thermal insulation PEF fiber : on request
distribution plate: on request
Duct: 8cm height,
Diameter : 250 mm (10 inches )or 300 mm(12 inches )
(others duct diameter or request ; inlet collar designed
with continuous rib to help retain the ductwork on collar.)
Use the highest temperature, humidity:80℃,80%
|
Type for optional |
Mini pleat HEPA filter HBM Gel seal HEPA filter HBG pressure test hole HBP aerosol test hole HBA down regulating damper HBD
|
||
| Model |
Air flow ( m3/h ) |
Mini pleat HEPA filter W * H * D ( mm ) |
Box size W * H * D ( mm ) |
| HBM-320 | 300 - 450 | 320 * 320 * 96 | 390*390*380 |
| HBM-484 | 600 – 1000 | 484 * 484 * 96 | 554*554*380 |
| HBM-630 | 1000 – 1500 | 630 * 630 * 96 | 700*700*380 |
| HBM-915 | 2000 | 915 * 610 * 96 | 985*680*380 |
| HBM-1220 | 3000 | 1220 * 610 * 96 | 1290*680*380 |
