Alpha Clean Air Technology Co.,Ltd

extruded aluminum PU Insulation HEPA Filter Boxes 250mm inlet duct

Product Details:
Place of Origin: china
Brand Name: alphaclean
Model Number: customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Polywood packing
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 1000sets
  • Detail Information
  • Product Description

Detail Information

HEPA Filter: Mini Pleat HEPA Filter Material: Extruded Aluminum
Inlet Duct Diameter: 250mm Or Others Air Volume: 1000 Cubic Meter Per Hour
Air Supply Duct: Top Air Valve: No
High Light:

Insulation HEPA Filter Boxes

,

250mm Inlet HEPA Filter Boxes

,

250mm Inlet Air Filter Box

Product Description

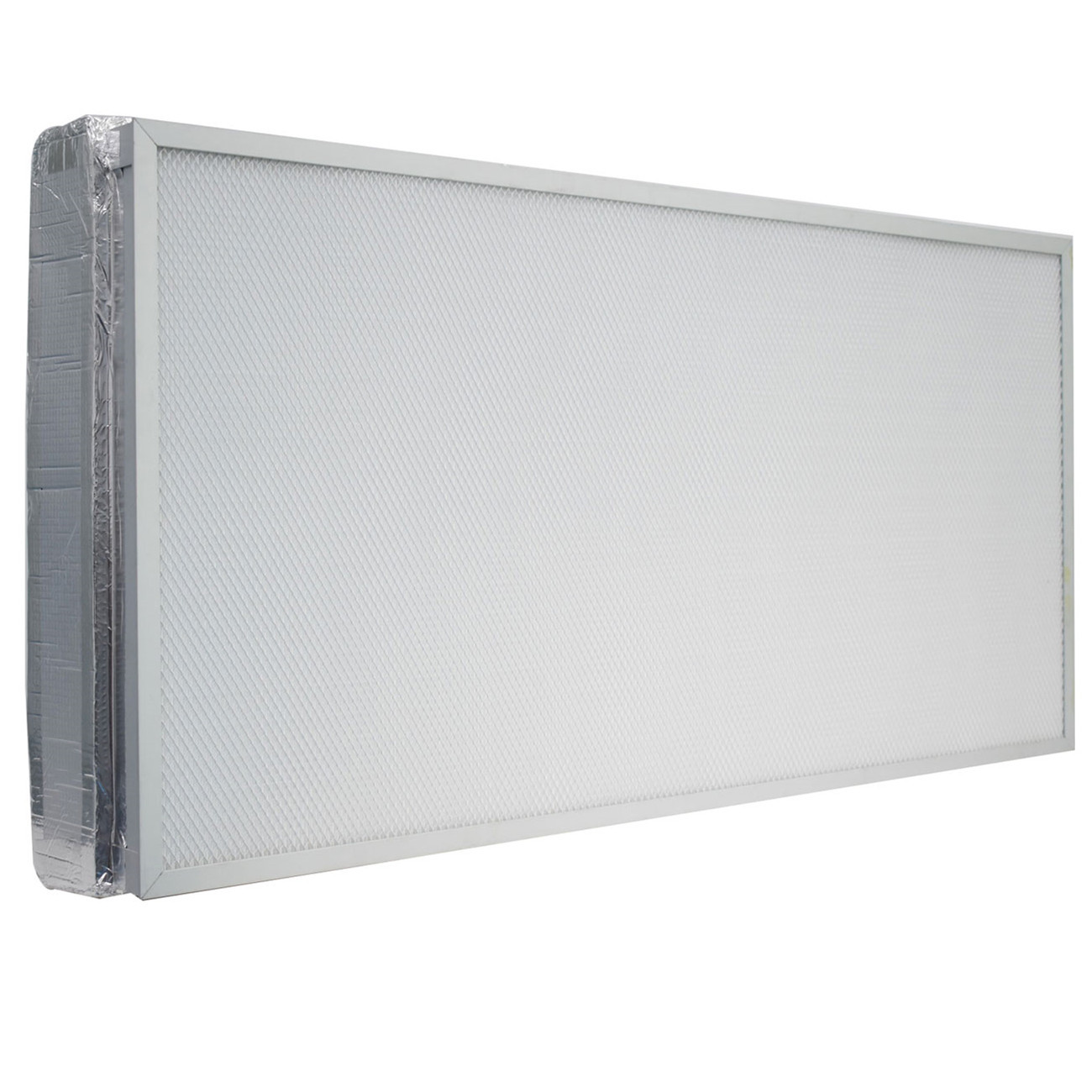

Extruded Aluminum PU Insulation HEPA Filter Boxes 250mm Inlet Duct



Cleanroom HEPA Unit Air Supply Housing With PU Insulations



The HEPA Replacement Air Filter ensures it yields only clean filtered air from the filter face, when connected to a duct system or fan via its spigot connection on the rear of the filter.



Terminal Cassette HEPA filter Modules are lightweight unitized low profile disposable ducted supply modules.

Alternative frame materials alumium profiles ,stainless steel , galvanized steel, aluminum plate



With a minipleat filter pack available in efficiencies from 99.99% on 0.30 micrometer size particles to 99.99999% on 0.12 micrometer size particles.


They are available in a complete range of standard frame styles, 2”, 3” and 4” pack depths and sizes to meet the needs of critical applications, where HEPA/ ULPA filtration is required.



Individual testing under rigid quality control and modern assembly methods ensures conformance to specifications.

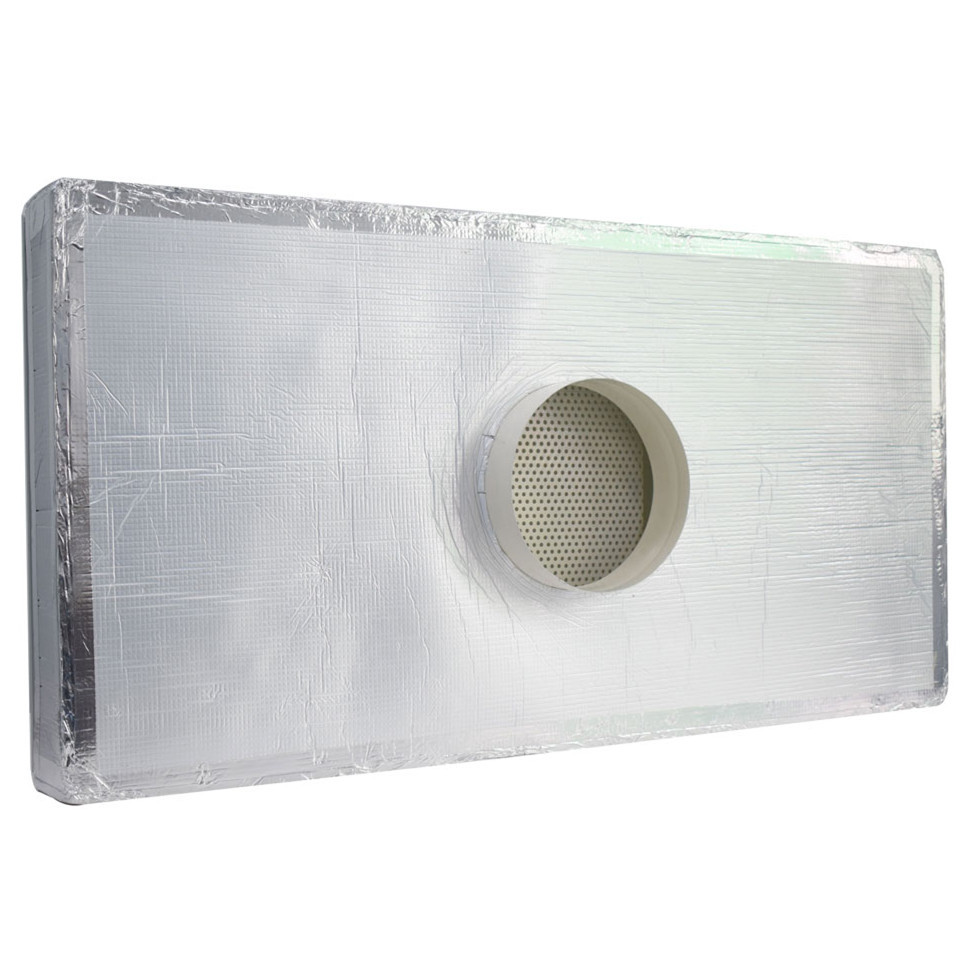

Thermal insulation board is attached to the surface of the static pressure box, which has good thermal insulation performance



Diameter : 250 mm (10 inches) or 300 mm(12 inches )

(others duct diameter or request ; inlet collar designed

with continuous rib to help retain the ductwork on collar.)



Use the highest temperature, humidity: 80℃,100%



recommended pressure drop : ≤ 600 Pa





Outside dimensions

(mm)

Rated air flow

(m3/h)

Initial resistance

(Pa)

Efficiency

(%)

Dust capacity(g)

CYH-10J 610×610×150 1000 ≤220 ≥99.99 600
CYH-15J 915×610×150 1500 ≤220 ≥99.99 900
CYH-18J 1170×570×150 1800 ≤220 ≥99.99 1070
CYH-20J 1220×610×150 2000 ≤220 ≥99.99 1200
