Product Details:
|
|
| Place of Origin: | china |
|---|---|
| Brand Name: | alphaclean |
| Model Number: | customized |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Polywood packing |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000sets |
|
Detail Information |
|||
| HEPA Filter: | Mini Pleat HEPA Filter | Material: | Cold Rolled Steel Coated Casing |
|---|---|---|---|
| Diffusing Plate: | Cold Rolled Steel With Spray Coated | Air Volume: | 1000 M3/h |
| Air Supply Duct: | Top Or Side | Air Valve: | No |
| High Light: | Duct Clean Room HEPA Filter Boxes,Polyurethane HEPA Filter Boxes,300mm Duct Fan Filter Box |
||
Product Description

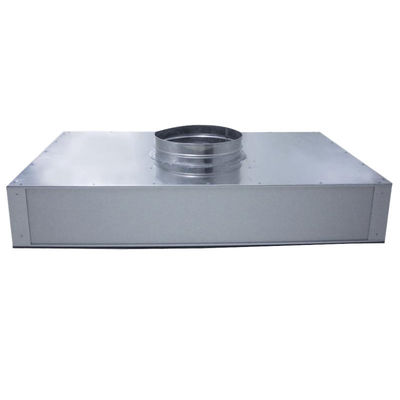

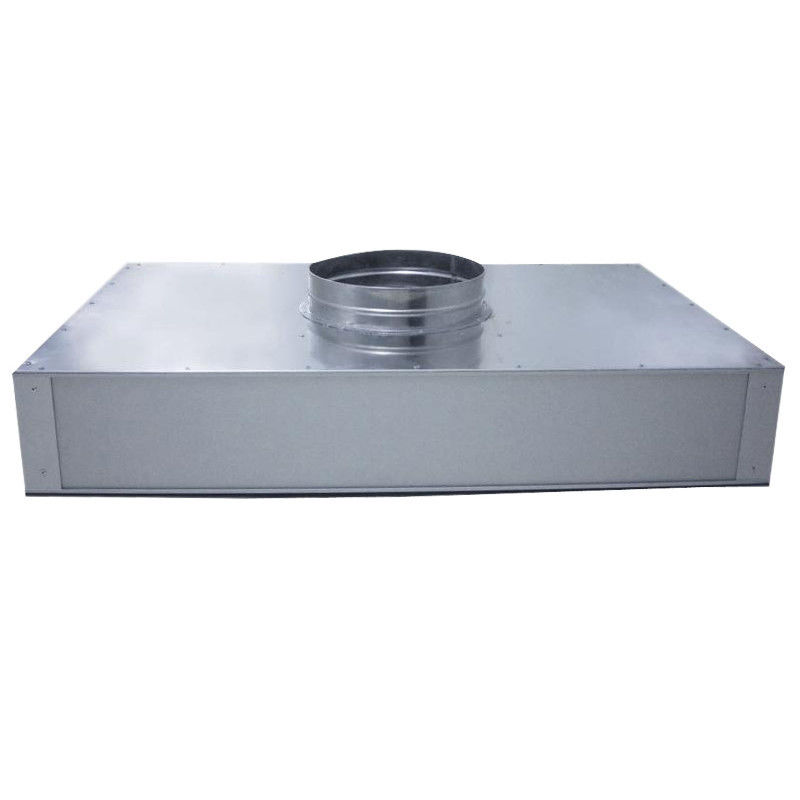

Disposable 300mm Duct Clean Room HEPA Filter Boxes Hot Melt Separator
Disposable Duct HEPA Filter Box Module In Clean Room
HEPA/ULPA Filter Modules are lightweight unitized low profile disposable ducted supply modules with a minipleat filter pack available in efficiencies from 99.99% on 0.30 micrometer size particles to 99.99999% on 0.12 micrometer size particles. They are available in a complete range of standard frame styles, 2, 3 and 4 inch pack depths and sizes to meet the needs of critical applications where HEPA/ ULPA filtration is required. Individual testing under rigid quality control and modern assembly methods ensures conformance to specification.
casing: extruded Aluminum frame
ceiling connect plate: galvanized or cooled-roll steel
Sealant: polyurethane
separator: Hot-melt
Gasket: EVA 5mm
Filter media: mini pleat Glass fiber HEPA filter
thermal insulation PEF fiber : on request
distribution plate: on request
Duct: 8cm height,
Diameter: 250 mm (10 inches) or 300mm (12 inches )
(others duct diameter or request ; inlet collar designed
with continuous rib to help retain the ductwork on collar. )
Use the highest temperature, humidity: 80℃, 80%
Optional: Alternative frame materials and size available on request.
|
Outside dimensions (mm) |
Rated air flow (m3/h) |
Initial resistance (Pa) |
Efficiency (%) |
Dust capacity (g) |
|
| CYH-10J | 610×610×150 | 1000 | ≤220 | ≥99.99 | 600 |
| CYH-15J | 915×610×150 | 1500 | ≤220 | ≥99.99 | 900 |
| CYH-18J | 1170×570×150 | 1800 | ≤220 | ≥99.99 | 1070 |
| CYH-20J | 1220×610×150 | 2000 | ≤220 | ≥99.99 | 1200 |
