Product Details:
|
|
| Place of Origin: | china |
|---|---|
| Brand Name: | alphaclean |
| Model Number: | customized |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Polywood packing |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000sets |
|
Detail Information |
|||
| HEPA Filter: | Mini Pleat HEPA Filter | Material: | Cold Rolled Steel Coated Casing |
|---|---|---|---|
| Diffusing Plate: | Cold Rolled Steel With Spray Coated | Air Volume: | 1000 M3/h |
| Air Supply Duct: | Top Or Side | Air Valve: | No |
| High Light: | HEPA Filter Ceiling Module,Ceiling HEPA Filter Module,HEPA Ceiling Module |
||
Product Description

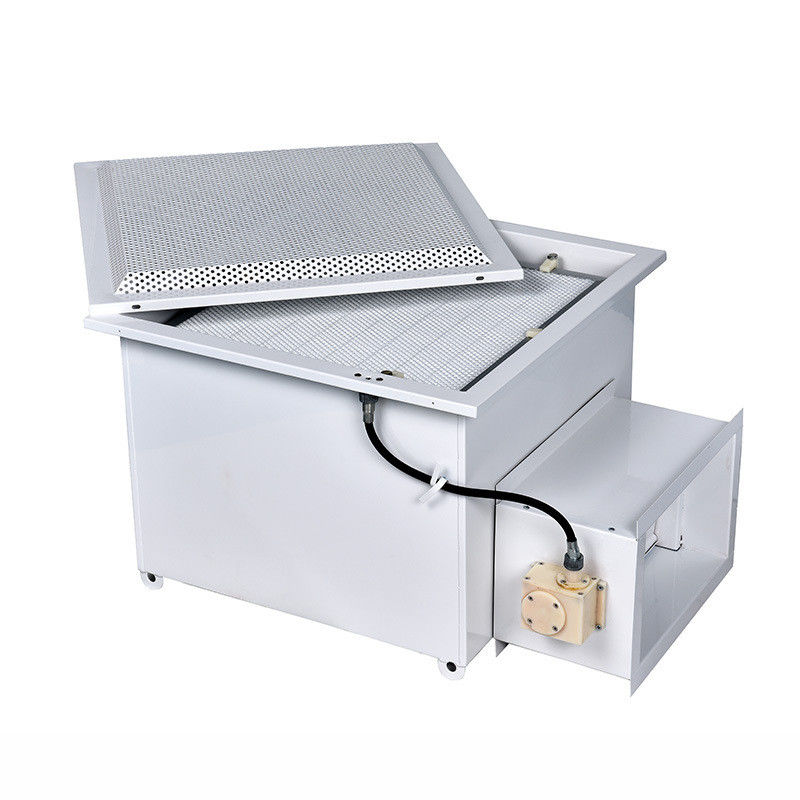

Down Side Regulating Air Volume Damper HEPA Filter Ceiling Module
HEPA Filter Module With Down Side Regulating Air Volume Damper
Ceiling Hepa filter units are used in air supply or extraction applications in air conditioning and ventilation installations in rooms requiring the highest standards of air purity.
Ceiling diffuser with a radial air discharge pattern where “room-side replaceable” HEPA or ULPA filters are required
Application :
Applied to the end filtration of high civilian or industrial clean site for cleanliness.such as: Electronics,semiconductor, precision machinery, pharmaceutical, hospital, food and other industries.
The box body is made of high quality cold rolled steel sheet.
Surface electrostatic spraying
easy to install and maintain
compact structure casing design as the clean room may be limited by the building's height
side or top inlet duct for choosing
The diffuser panels on the outlet surface are aluminium sprayed, cold rolled steel sprayed or stainless steel.
|
Type for optional |
Mini pleat HEPA filter HBM Gel seal HEPA filter HBG pressure test hole HBP aerosol test hole HBA down regulating damper HBD
|
||
| Model |
Air flow ( m3/h ) |
Mini pleat HEPA filter W * H * D ( mm ) |
Box size W * H * D ( mm ) |
| HBM-320 | 300 - 450 | 320 * 320 * 96 | 390*390*380 |
| HBM-484 | 600 – 1000 | 484 * 484 * 96 | 554*554*380 |
| HBM-630 | 1000 – 1500 | 630 * 630 * 96 | 700*700*380 |
| HBM-915 | 2000 | 915 * 610 * 96 | 985*680*380 |
| HBM-1220 | 3000 | 1220 * 610 * 96 | 1290*680*380 |
