Cleanroom High Efficiency 250mm HEPA Filter Boxes 5mm EVA Gasket

Product Details:
Place of Origin: china
Brand Name: alphaclean
Model Number: customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Polywood packing
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 1000sets
  • Detail Information
  • Product Description

Detail Information

HEPA Filter: Mini Pleat HEPA Filter Material: Extruded Aluminum
Inlet Duct Diameter: 250 Mm Or Others Air Volume: 1000 M3/h
Air Supply Duct: Top Gasket: EVA 5mm
High Light:

250mm HEPA Filter Boxes

,

EVA Gasket HEPA Filter Boxes

,

10 Inches HEPA Filter Housing

Product Description

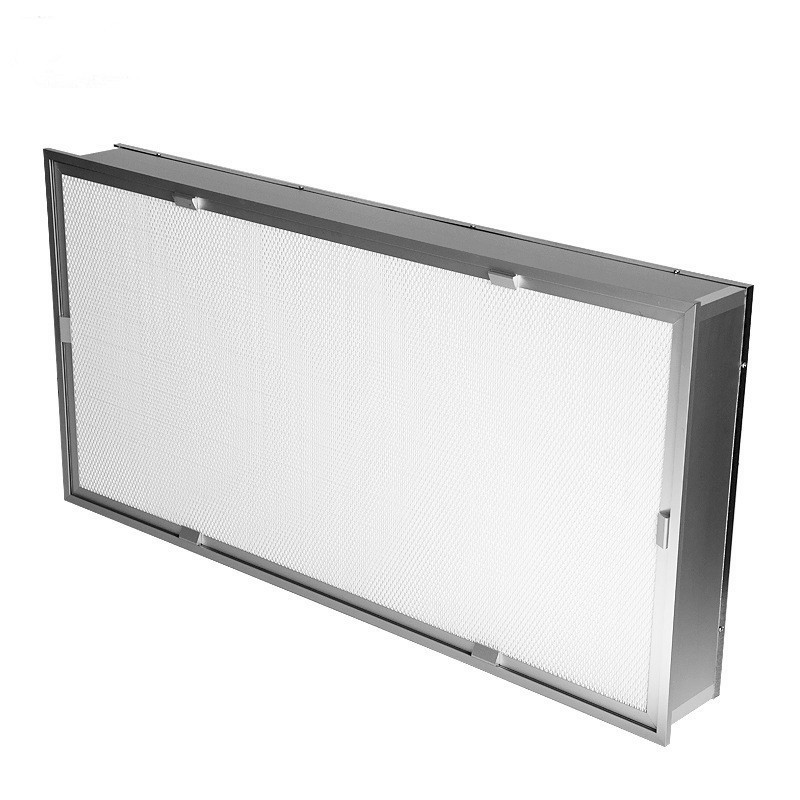

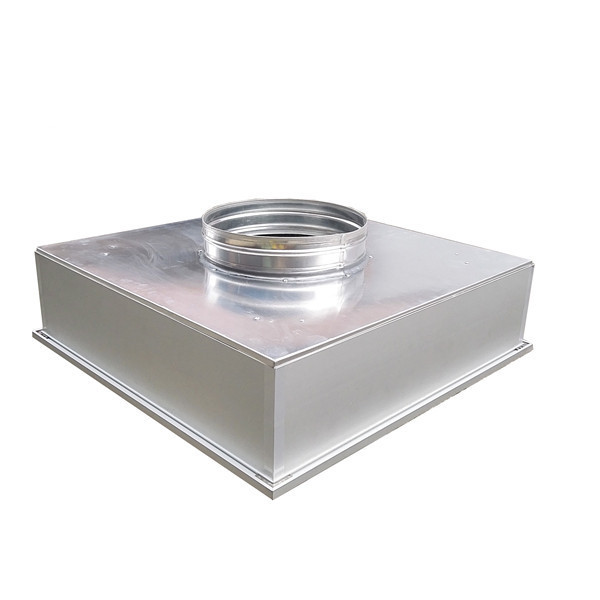

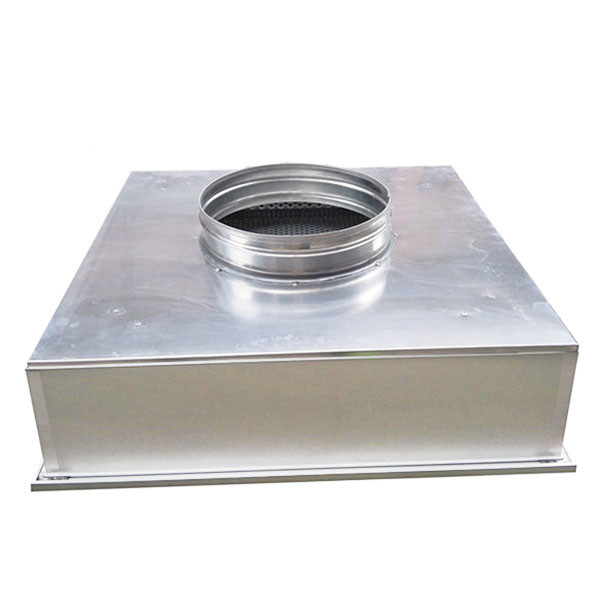

Cleanroom High Efficiency 250mm HEPA Filter Boxes 5mm EVA Gasket



Cleanroom High Efficiency Air Supply Housing With Replaceable HEPA Filter



The HEPA Replacement Air Filter ensures it yields only clean filtered air from the filter face, when connected to a duct system or fan via its spigot connection on the rear of the filter.



Terminal Cassette HEPA filter Modules are lightweight unitized low profile disposable ducted supply modules. With a minipleat filter pack available in efficiencies from 99.99% on 0.30 micrometer size particles to 99.99999% on 0.12 micrometer size particles.


They are available in a complete range of standard frame styles, 2”, 3” and 4” pack depths and sizes to meet the needs of critical applications, where HEPA/ ULPA filtration is required.



Individual testing under rigid quality control and modern assembly methods ensures conformance to specifications.



casing: extruded Aluminum frame

ceiling connect plate: galvanized or cooled-roll steel

Sealant: polyurethane

separator: Hot-melt

Gasket: EVA 5mm

Filter media:mini pleat Glass fiber

thermal insulation PEF fiber: on request

distribution plate: on request

Duct: 8cm height,

Diameter : 250 mm (10 inches )or 300 mm(12 inches )

(others duct diameter or request ; inlet collar designed

with continuous rib to help retain the ductwork on collar.)

Use the highest temperature, humidity:80℃,80%



     Optional: Alternative frame materials and size available on request.



Outside dimensions

(mm)

Rated air flow

(m3/h)

Initial resistance

(Pa)

Efficiency

(%)

Dust capacity

(g)

CYH-10J 610×610×150 1000 ≤220 ≥99.99 600
CYH-15J 915×610×150 1500 ≤220 ≥99.99 900
CYH-18J 1170×570×150 1800 ≤220 ≥99.99 1070
CYH-20J 1220×610×150 2000 ≤220 ≥99.99 1200
