Alpha Clean Air Technology Co.,Ltd

Stainless Steel Diffusing Plate Ceiling HEPA Housing Air Flow Supply

Product Details:
Place of Origin: china
Brand Name: alphaclean
Model Number: customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Polywood packing
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 1000sets
  • Detail Information
  • Product Description

Detail Information

HEPA Filter: Mini Pleat HEPA Filter Material: Cold Rolled Steel Coated Casing
Diffusing Plate: Stainless Steel Air Volume: 1000 M3/h
Air Supply Duct: Top Or Side Air Valve: No
High Light:

1000 m3 h Ceiling HEPA Housing


Stainless Steel HEPA Housing


Stainless Steel Hepa Filter Rack

Product Description

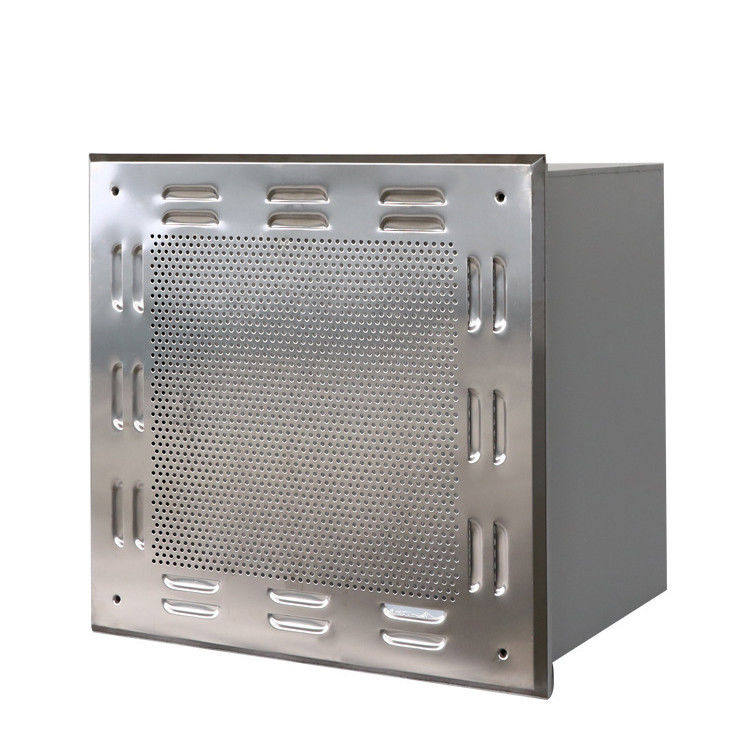

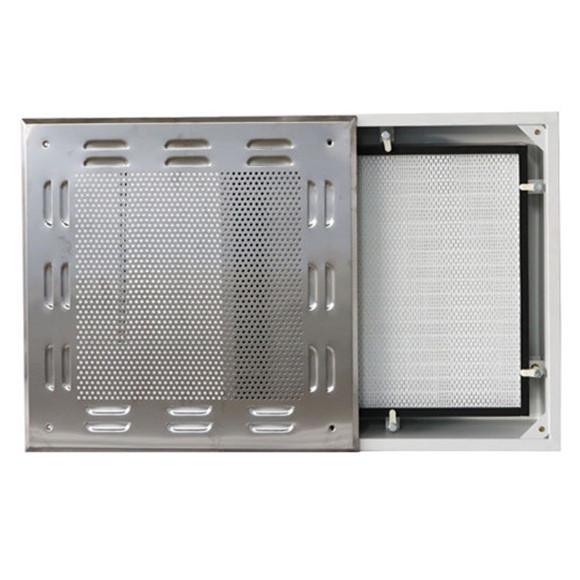

Stainless Steel Diffusing Plate Ceiling HEPA Housing Air Flow Supply


Stainless Steel Diffusing Plate Ceiling Air Flow Supply Box With HEPA Filter


Application :


Applied to the end filtration of high civilian or industrial clean site for cleanliness.such as: Electronics,semiconductor, precision machinery, pharmaceutical, hospital, food and other industries.


The box body is made of high quality cold rolled steel sheet.

Surface electrostatic spraying

Beautiful and generous, compact structure, easy to install and maintain

The  diffuser panels on the outlet surface are aluminium sprayed, cold rolled steel sprayed or stainless steel.


Type for optional


Mini pleat HEPA filter HBM

Gel seal HEPA filter HBG

pressure test hole HBP

aerosol test hole HBA

down regulating damper HBD



Air flow

( m3/h )

Mini pleat HEPA filter

W * H * D ( mm )

Box size

W * H * D ( mm )

HBM-320 300 - 450 320 * 320 * 96 390*390*380
HBM-484 600 – 1000 484 * 484 * 96 554*554*380
HBM-630 1000 – 1500 630 * 630 * 96 700*700*380
