0.3um Porosity ABS Frame H14 3V Compact HEPA Filter Replacement

Product Description

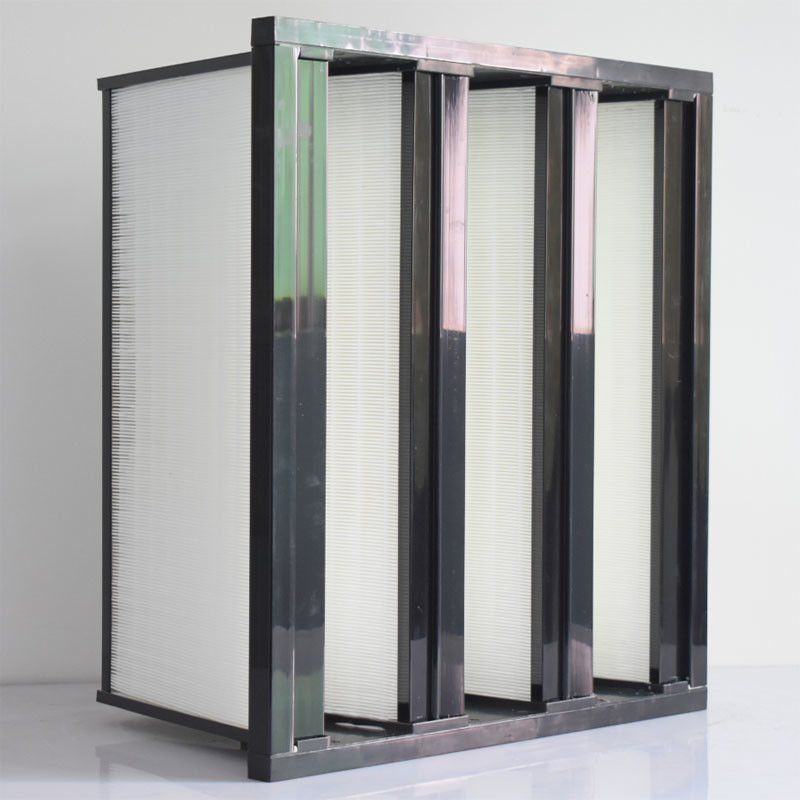

0.3um Porosity ABS Frame 3V H14 Compact HEPA Filter Replacement

3V Compact H14 HEPA Filter With ABS Frame 592 x 490 x 292

V Cell filters, also be called as v bank filters, rigid pocket filters,are the most important part in clean room ventilation systems when filtration level 100 or 10.

V cell filters are pre-filters before HEPA filters, the role and function are the same as pocket filters, but v bank filters offer more stable performance.

The ‘V’ design provides significantly more surface area than pocket filters, reducing the overall pressure drop in the system and extending HEPA filters life.

To enlarge the service life of HEPA filters, V bank filters need to remove most of the 0.5um particles with efficiency from 75-99%.

Normally, the v bank filters are made of ABS plastic frame, mini pleated glass fiber or pp pack, hot melt glue as the separator, they are manufactured in a doubleheader frame and are relatively lightweight when compared to the overall capacity of the products.

Compact V Cell H14 HEPA Filter With Abs Frame For Air Filtration System

Application: Air intake for gas turbines, compressors and large engines.
Type: High efficiency, incinerable compact filter.
Frame: Polypropylene and ABS.
Gasket: Expanded polyurethane placed on the downstream side (code 01).
Media: Glass fibre paper.
Separator: Hot-melt beads.
Sealant: Polyurethane.
Grid: Glass fibre reinforcement grid placed downstream.
EN 779:2002 efficiency: F7. F8 F9.
EN 1822 efficiency: H10.
Recommended final pressure drop: 600 Pa.
Temperature: 80°C maximum in continuous service.
N.B: Burst pressure: > 7500 Pa.
Optional: Alternative frame materials and size available on request.
