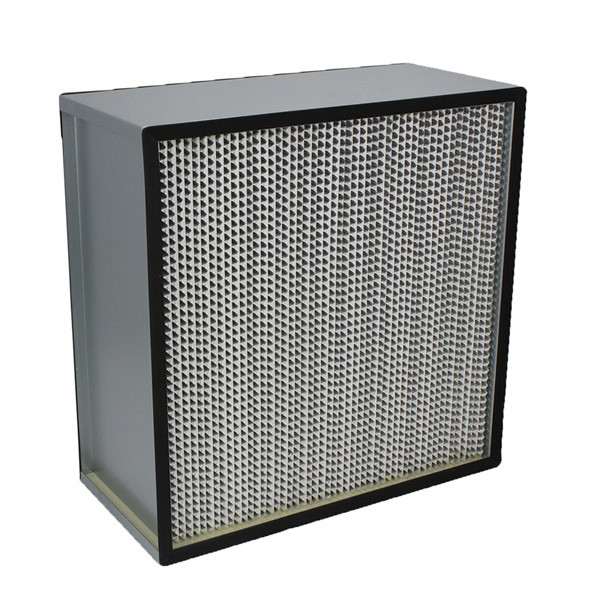

Fiberglass H13 Deep Pleat Cleanroom HEPA Filters With Separator

Product Description

Fiberglass H13 Deep Pleat Cleanroom HEPA Filters With Separator

H13 Deep Pleat Cleanroom HEPA Filters With Separator

Application: Final or return filtration for clean rooms

Type: HEPA filtering panel.

Frame: MDF Wood and anodised aluminium.

Gasket: as reqeust

Media: Glass fibre paper.

Separator: paper or aluminum

Sealant: Polyurethane.

Recommended final pressure drop: 600 Pa.

Temperature: 70°C maximum in continuous service.

Test: 100% individually scanned to EN 1822. system


Optional: Alternative frame materials and size available on request.

Top Gel Frame thickness :80mm,95mm,104mm

Side Gel Sealed Frame: 69mm,75mm,90mm,93mm, 96mm,100mm

Features:
-- low wind resistance,
-- high dust holding capacity,
-- high filtration precision,
-- processed into various sizes and shapes according to customer needs, and suitable for different models.

Standard specification

(1) Imported cellulose fiber or synthetic fiber for base media (80%cellulose and 20%polyester).

(2) Excellent filter efficiency.

(3) Wide pleat spacing, great filter surface.

(4) Electrochemical plate/stainless steel top and bottom, no rust.

(5) Perforated zinc galvanized metal inner core, allows good airflow.

(6) Specialty chlorine rubber gasket to ensure airtight sealing.
