Product Details:
|
|
| Place of Origin: | china |
|---|---|
| Brand Name: | alphaclean |
| Model Number: | 24*24*3" 610 * 610 * 70 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 pc |
| Price: | negotiation |
| Packaging Details: | Polywood packing |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200pcs per week |
|
Detail Information |
|||
| Material: | Fiberglass | Efficiency: | 99.99% |
|---|---|---|---|
| Usage: | Final Or Return Filtration For Clean Rooms | HEPA: | H13, H14, U15 |
| Porosity: | 0.3um,0.12 Um,0.5um | Frame: | MDF/Galvanized/Aluminium |
| Recommended Final Pressure Drop: | 600 Pa | Application: | Industrial Cleanroom,Free Dust Room,Hospital |
| High Light: | Mini Pleat Cleanroom HEPA Filters,U15 Cleanroom HEPA Filters,U15 HEPA Filter |
||
Product Description

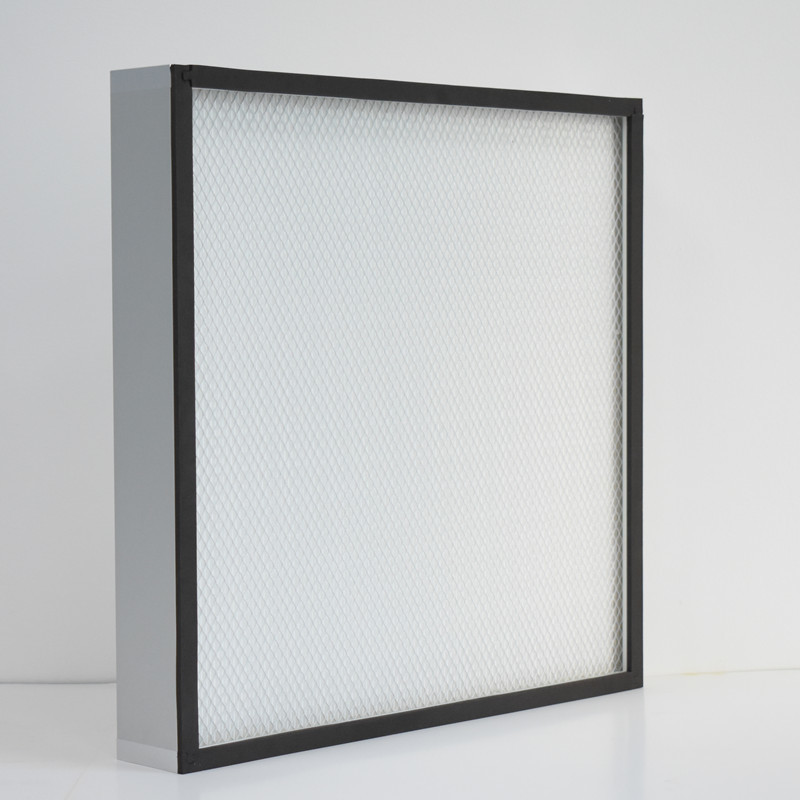

Fiberglass H13 U15 Mini Pleat Cleanroom HEPA Filters For Air Conditioner
H13 Mini Pleat Clean Room Hepa Filter For Air Purifier Air Conditioner
Application : Final or return filtration for clean rooms with turbulent flow.
Type: HEPA /ULPA filtering panel
Frame: Extruded and anodised aluminium.
Gasket: Half round continuous expanded polyurethane.
Media: Glass fibre paper.
Separator: Hot-melt beads.
Sealant: Polyurethane.
Grid: Mild steel painted grille upstream and downstream.
EN 1822 efficiency: H14.U15
MPPS efficiency: H14: ≥99.995%.; U15≥99.9995%.;
DOP efficiency: H14: ≥ 99.999%.; U15 ≥99.999%.;
Recommended final pressure drop: 600 Pa.
Maximum flow rate: See table, use nominal values otherwise a reduction in efficiency may
occur.
Temperature: 70°C maximum in continuous service.
Test: : 100% individually scanned to EN 1822.
Mounting system: Mechanical clamping structure, Terminal housings.
Optional: Alternative frame materials and size available on request.
| model |
Outside dimensions (mm) |
Rated airflow (m3/h) |
Initial resistance (Pa) |
Efficiency (%) |
Dust capacity (g) |
| GXW-7J | 610×610×50 | 700 |
≤220 For U14 ≤250 For U15 |
≥99.99 Or≥99.999 | 450 |
| GXW-10J1 | 915×610×50 | 1000 | ≥99.99 Or≥99.999 | 680 | |
| GXW-14J | 1220×610×50 | 1400 | ≥99.99 Or≥99.999 | 900 | |
| GXW-10J2 | 610×610×69 | 1000 | ≥99.99 Or≥99.999 | 560 | |
| GXW-15J | 915×610×69 | 1500 | ≥99.99 Or≥99.999 | 840 | |
| GXW-20J | 1220×610×69 | 2000 | ≥99.99 Or≥99.999 | 1120 | |
| GXW-12J | 610×610×80 | 1200 | ≥99.99 Or≥99.999 | 650 | |
| GXW-14J | 610×610×90 | 1400 | ≥99.99 Or≥99.999 | 750 | |
| GXW-16J | 610×610×100 | 1600 | ≥99.99 Or≥99.999 | 850 | |
| GXW-18J | 1170×570×69 | 1800 | ≥99.99 Or≥99.999 | 1000 | |
| GXW-22J | 1170×570×80 | 2200 | ≥99.99 Or≥99.999 | 1250 | |
| GXW-25J | 1220×610×80 | 2500 | ≥99.99 Or≥99.999 | 1300 | |
| GXW-28J | 1220×610×90 | 2800 | ≥99.99 Or≥99.999 | 1500 | |
| GXW-32J | 1220×610×100 | 3200 | ≥99.99 Or≥99.999 | 1700 | |
| GXW-36J | 1220×1220×69 | 3600 | ≥99.99 Or≥99.999 | 2000 |
