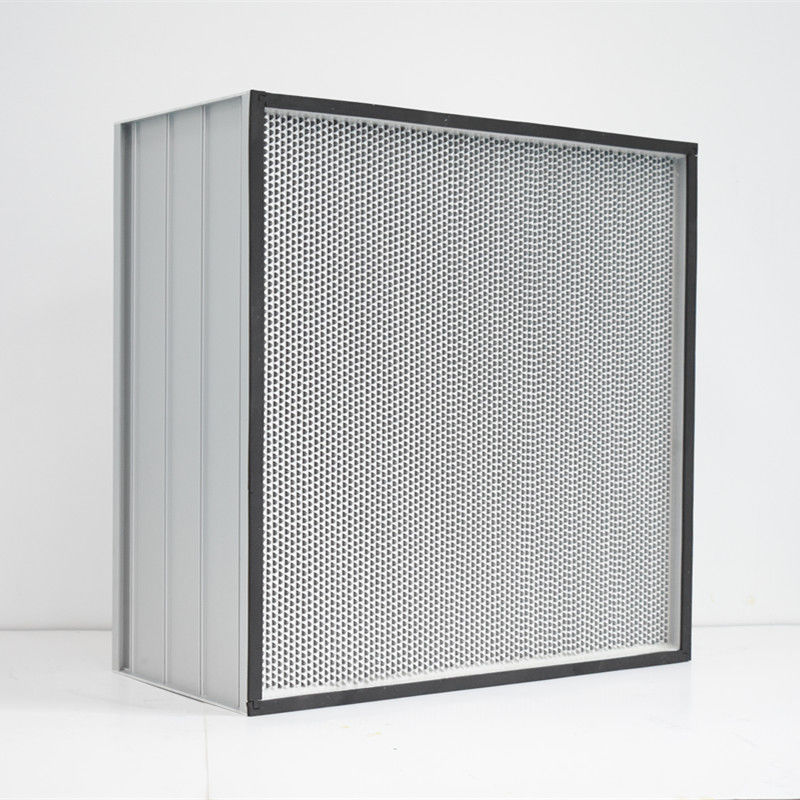

Glassfiber Media MDF Frame 600Pa Portable Hepa Filter GMP Workshop

Product Details:
Place of Origin: china
Brand Name: alphaclean
Model Number: 24*24*12" 595 * 595 * 292
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: negotiation
Packaging Details: Polywood packing
Delivery Time: 5-8 days
Payment Terms: L/C, T/T
Supply Ability: 200pcs per week
  • Detail Information
  • Product Description

Detail Information

Material: Fiberglass ,separator Efficiency: 99.99%
Recommended Final Pressure Drop: 600 Pa Construction: BOX Filter
Porosity: 0.3um,0.12 Um,0.5um Frame: MDF / Metal
Type: Hepa Filter/ ULPA Filter Application: Industrial Cleanroom,Free Dust Room,Hospital
High Light:

600Pa Portable Hepa Filter

,

600Pa Clean Room Filter

,

600Pa BOX Filter

Product Description

Glassfiber Media MDF Frame 600Pa Portable Hepa Filter GMP Workshop



MDF Frame Clean Hepa Filter With Glassfiber Media To Gmp Workshop



Application: Final or return filtration for clean rooms

Type: HEPA filtering panel .

Frame: MDF Wood and anodised aluminium.

Gasket: as reqeust

Media: Glass fibre paper.

Separator: paper or aluminum

Sealant: Polyurethane.

Recommended final pressure drop: 600 Pa.

Temperature: 70°C maximum in continuous service.

Test: 100% individually scanned to EN 1822. system

Optional: Alternative frame materials and size available on request.



Features:
-- low wind resistance,
-- high dust holding capacity,
-- high filtration precision,
-- processed into various sizes and shapes according to customer needs, and suitable for different models.



Standard specification

Model

Outside Dimensions

(mm)

Rated Air Flow

(m3/h)

Initial Resistance

(Pa)

Efficiency

(dust-spot)

(%)

Dust Capacity

(g)

GX-2.5J 305×305×150 250 ≤220 ≥99.99 200
GX-4J 320×320×220 400 ≤220 ≥99.99 350
GX-6J 484×484×150 600 ≤220 ≥99.99 400
GX-10J1 484×484×220 1000 ≤220 ≥99.99 600
GX-15J1 726×484×220 1500 ≤220 ≥99.99 900
GX-20J1 968×484×220 2000 ≤220 ≥99.99 1200
GX-10J2 610×610×150 1000 ≤220 ≥99.99 600
GX-15J2 915×610×150 1500 ≤220 ≥99.99 900
GX-20J2 1220×610×150 2000 ≤220 ≥99.99 1200
GX-16J 630×630×220 1600 ≤220 ≥99.99 900
GX-24J 945×630×220 2400 ≤220 ≥99.99 1400
GX-32J 1260×630×220 3200 ≤220 ≥99.99 1800
GX-22J 610×610×292 2200 ≤220 ≥99.99 1200
GX-33J 915×610×292 3300 ≤220 ≥99.99 1800
GX-44J 1220×610×292 4400 ≤220 ≥99.99 2400



(1) Imported cellulose fiber or synthetic fiber for base media (80%cellulose and 20%polyester).

(2) Excellent filter efficiency.

(3) Wide pleat spacing, great filter surface.

(4) Electrochemical plate/stainless steel top and bottom, no rust.

(5) Perforated zinc galvanized metal inner core, allows good airflow.

(6) Specialty chlorine rubber gasket to ensure airtight sealing.
