Product Details:
|
|
| Place of Origin: | china |
|---|---|
| Brand Name: | alphaclean |
| Certification: | CE |
| Model Number: | 24*24*12" 595 * 595 * 292 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 pc |
| Price: | negotiation |
| Packaging Details: | Polywood packing |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200pcs per week |
|
Detail Information |
|||
| Material: | Fiberglass ,separator | Efficiency: | 99.99% |
|---|---|---|---|
| Usage: | Final Or Return Filtration For Clean Rooms | Construction: | BOX Filter |
| Porosity: | 0.3um,0.12 Um,0.5um | Frame: | Stainless Steel |
| Type: | Hepa Filter/ ULPA Filter | Application: | Oven UV Drying Room,Baking Furnace |
| High Light: | Exhaust Cleanroom HEPA Filters,Baking Furnace Cleanroom HEPA Filters,0.3um Clean Air Hepa Filter |
||
Product Description

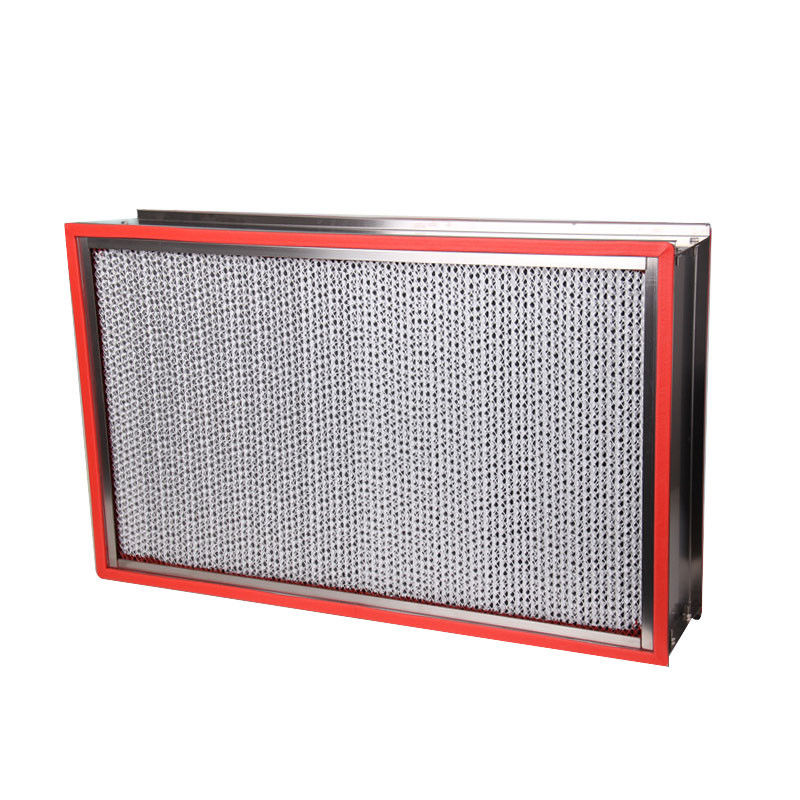

CE Baking Furnace Exhaust Cleanroom HEPA Filters Red Silicone Glue
250 ℃ Baking Furnace Exhaust Filter Clean Air Hepa Filter Red Silicone Glue
The high temperature resistant HEPA filter can be used continuously at a temperature of 250 degrees. It is assembled with a stainless steel frame and imported high temperature resistant sealant. Each filter is strictly tested to meet the high standard requirements of an environment that requires high temperature drying and high temperature sterilization.
Main application: high temperature resistant clean equipment (electronics, biopharmaceutical, medical, chemical, etc.)
Some special process high temperature air supply clean system
Performance description
Frame: SUS304
Filter material: special glass fiber filter paper
Filter separation: aluminum foil
Sealant: Special high-temperature resistant adhesive
Gasket: glass fiber, high temperature resistant polyurethane gasket
Efficiency: H14(EN 1822)99.995% at MPPS(0.3um)
Continuous operating temperature: ≤300 C
Humidity resistance: ≤80% RH
Recommended maximum final resistance: ≤580 Pa
Standard specification
| Model |
Outside Dimensions (mm) |
Rated Air Flow (m3/h) |
Initial Resistance (Pa) |
Efficiency (dust-spot) (%) |
Dust Capacity (g) |
| GX-2.5J | 305×305×150 | 250 | ≤220 | ≥99.99 | 200 |
| GX-4J | 320×320×220 | 400 | ≤220 | ≥99.99 | 350 |
| GX-6J | 484×484×150 | 600 | ≤220 | ≥99.99 | 400 |
| GX-10J1 | 484×484×220 | 1000 | ≤220 | ≥99.99 | 600 |
| GX-15J1 | 726×484×220 | 1500 | ≤220 | ≥99.99 | 900 |
| GX-20J1 | 968×484×220 | 2000 | ≤220 | ≥99.99 | 1200 |
| GX-10J2 | 610×610×150 | 1000 | ≤220 | ≥99.99 | 600 |
| GX-15J2 | 915×610×150 | 1500 | ≤220 | ≥99.99 | 900 |
| GX-20J2 | 1220×610×150 | 2000 | ≤220 | ≥99.99 | 1200 |
| GX-16J | 630×630×220 | 1600 | ≤220 | ≥99.99 | 900 |
| GX-24J | 945×630×220 | 2400 | ≤220 | ≥99.99 | 1400 |
| GX-32J | 1260×630×220 | 3200 | ≤220 | ≥99.99 | 1800 |
| GX-22J | 610×610×292 | 2200 | ≤220 | ≥99.99 | 1200 |
| GX-33J | 915×610×292 | 3300 | ≤220 | ≥99.99 | 1800 |
| GX-44J | 1220×610×292 | 4400 | ≤220 | ≥99.99 | 2400 |
