Product Details:
|
|
| Place of Origin: | china |
|---|---|
| Brand Name: | alphaclean |
| Model Number: | 24*24*12" 595 * 595 * 292 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 pc |
| Price: | negotiation |
| Packaging Details: | Polywood packing |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200pcs per week |
|
Detail Information |
|||
| Material: | Fiberglass ,separator | Efficiency: | 99.99% |
|---|---|---|---|
| Usage: | Final Or Return Filtration For Clean Rooms | Construction: | BOX Filter |
| Porosity: | 0.3um,0.12 Um,0.5um | Temperature Resistant: | 300℃ |
| Type: | Hepa Filter/ ULPA Filter | Application: | Oven UV Drying Room |
| High Light: | H14 Cleanroom HEPA Filters,H14 HEPA Filter,Ultrasonic Cleanroom HEPA Filters |
||
Product Description

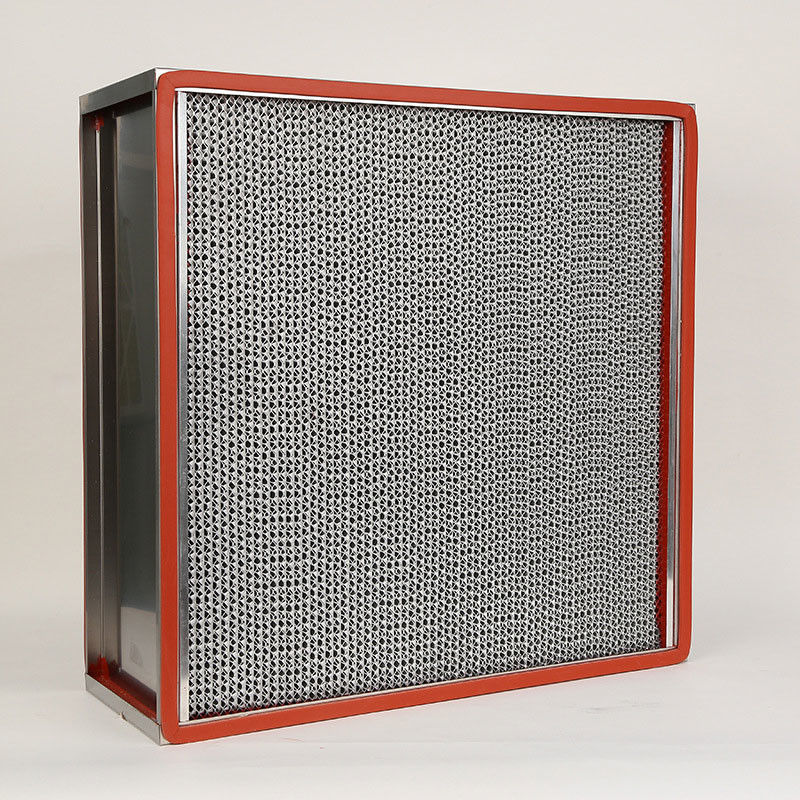

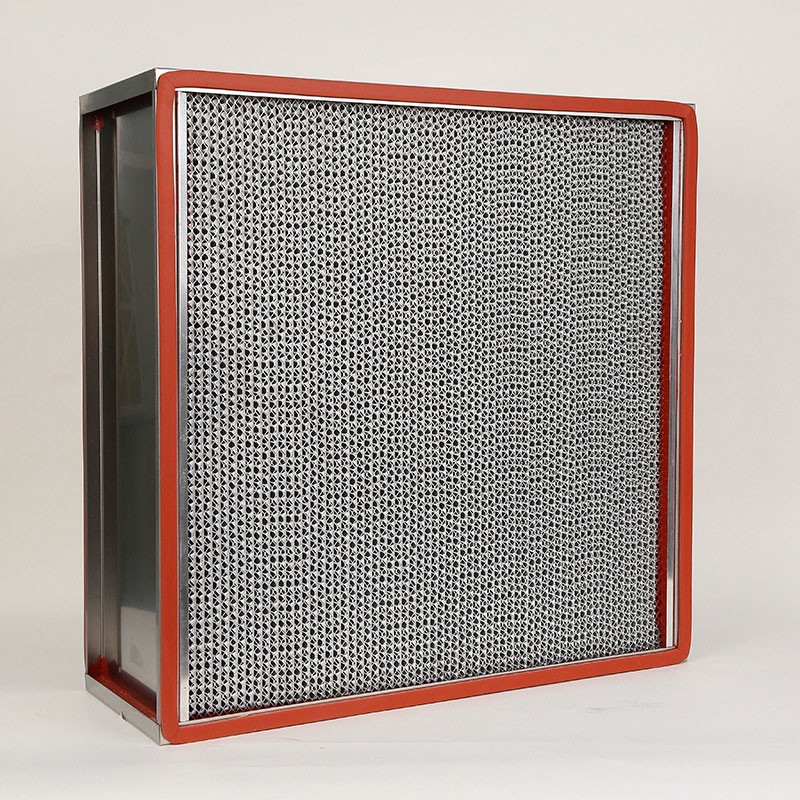

High Efficiency Ultrasonic H14 Cleanroom HEPA Filters Oven Drying Room
High Temperature High Efficiency / Air Filter Ultrasonic Filter For Oven UV Oven Drying Room
300℃ high temperature resistant high efficiency filter H14
Main application: high temperature resistant clean equipment (electronics, biopharmaceutical, medical, chemical, etc.)
Some special process high temperature air supply clean system
Performance description
Frame: SUS304
Filter material: special glass fiber filter paper
Filter separation: aluminum foil
Sealant: Special high-temperature resistant adhesive
Gasket: glass fiber, high temperature resistant polyurethane gasket
Efficiency: H14(EN 1822)99.995% at MPPS(0.3um)
Continuous operating temperature: ≤300 C
Humidity resistance: ≤80% RH
Recommended maximum final resistance: ≤580 Pa
Standard specification
| Model |
Outside Dimensions (mm) |
Rated Air Flow (m3/h) |
Initial Resistance (Pa) |
Efficiency (dust-spot) (%) |
Dust Capacity (g) |
| GX-2.5J | 305×305×150 | 250 | ≤220 | ≥99.99 | 200 |
| GX-4J | 320×320×220 | 400 | ≤220 | ≥99.99 | 350 |
| GX-6J | 484×484×150 | 600 | ≤220 | ≥99.99 | 400 |
| GX-10J1 | 484×484×220 | 1000 | ≤220 | ≥99.99 | 600 |
| GX-15J1 | 726×484×220 | 1500 | ≤220 | ≥99.99 | 900 |
| GX-20J1 | 968×484×220 | 2000 | ≤220 | ≥99.99 | 1200 |
| GX-10J2 | 610×610×150 | 1000 | ≤220 | ≥99.99 | 600 |
| GX-15J2 | 915×610×150 | 1500 | ≤220 | ≥99.99 | 900 |
| GX-20J2 | 1220×610×150 | 2000 | ≤220 | ≥99.99 | 1200 |
| GX-16J | 630×630×220 | 1600 | ≤220 | ≥99.99 | 900 |
| GX-24J | 945×630×220 | 2400 | ≤220 | ≥99.99 | 1400 |
| GX-32J | 1260×630×220 | 3200 | ≤220 | ≥99.99 | 1800 |
| GX-22J | 610×610×292 | 2200 | ≤220 | ≥99.99 | 1200 |
| GX-33J | 915×610×292 | 3300 | ≤220 | ≥99.99 | 1800 |
| GX-44J | 1220×610×292 | 4400 | ≤220 | ≥99.99 | 2400 |
