Product Details:
|
|
| Place of Origin: | china |
|---|---|
| Brand Name: | alphaclean |
| Model Number: | 24*24*12" 595 * 595 * 292 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 pc |
| Price: | negotiation |
| Packaging Details: | Polywood packing |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200pcs per week |
|
Detail Information |
|||
| Material: | Fiberglass , PP | Efficiency: | 99.99% |
|---|---|---|---|
| Usage: | Final Or Return Filtration For Clean Rooms | Construction: | BOX Filter |
| Porosity: | 0.3um,0.12 Um,0.5un | Frame: | Plastic / Metal |
| Type: | Hepa Filter/ ULPA Filter | Application: | Industrial Cleanroom,Free Dust Room,Hospital |
| High Light: | ABS Frame Cleanroom HEPA Filters,HEPA H14 Filter,99.99% Cleanroom HEPA Filters |
||
Product Description

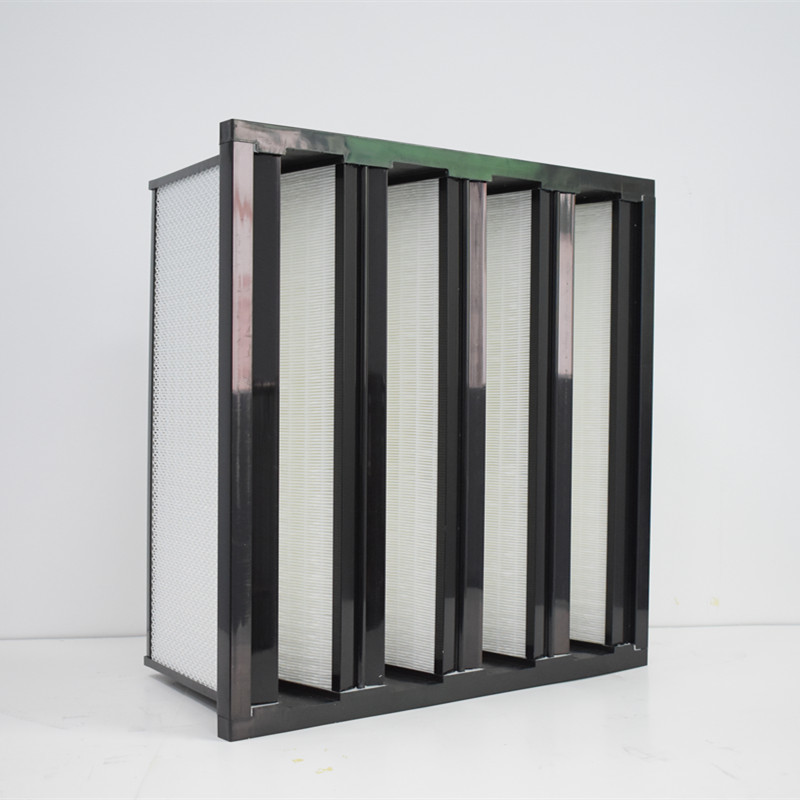

H14 V Cell Air Filtration 99.99% ABS Frame Cleanroom HEPA Filters
Compact V Cell H14 HEPA Filter With Abs Frame For Air Filtration System
Application: Air intake for gas turbines, compressors and large engines.
Type: High efficiency, incinerable compact filter.
Frame: Polypropylene and ABS.
Gasket: Expanded polyurethane placed on the downstream side (code 01).
Media: Glass fibre paper.
Separator: Hot-melt beads.
Sealant: Polyurethane.
Grid: Glass fibre reinforcement grid placed downstream.
EN 779:2002 efficiency: F7. F8 F9.
EN 1822 efficiency: H10.
Recommended final pressure drop: 600 Pa.
Temperature: 80°C maximum in continuous service.
N.B: Burst pressure: > 7500 Pa.
Optional: Alternative frame materials and size available on request.
Standard specification
| Model | Outside dimensions (mm) | Rated air flow (m3/h) | F8 | F9 | H10 | Filter materials |
| sv1-1 | 287×287×292 | 890 | 120 | 160 | 230 | 2v |
| sv3-1 | 490×287×292 | 1600 | 120 | 160 | 230 | 3v |
| sv3-3 | 490×490×292 | 2700 | 120 | 160 | 230 | 3v |
| sv4-3 | 592×490×292 | 3300 | 120 | 160 | 230 | 4v |
| sv4-2 | 592×287×292 | 2125 | 145 | 180 | 250 | 4v |
| sv4-4 | 592×592×292 | 4250 | 120 | 160 | 230 | 4v |
