Double Blower Cleaning Airlock 220V Air Showers For Clean Rooms

Product Details:
Place of Origin: china
Brand Name: alphaclean
Certification: ce
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Polywood packing
Delivery Time: 10 days
Payment Terms: L/C, T/T
Supply Ability: 200sets
  • Detail Information
  • Product Description

Detail Information

Voltage: 380/220V ,50/60hz Single Or 3phase Dimension(l*w*h): Customized
Material: Stainless Steel Air Shower Time: 0-99s
Type: For 1 - 2 Persons Door: Elctronic Interclock
Blowing Side: Double Side Warranty: 1 Year
High Light:

220V Air Showers For Clean Rooms


220V Air Shower Unit


Airlock Personnel Cleaning Booth

Product Description

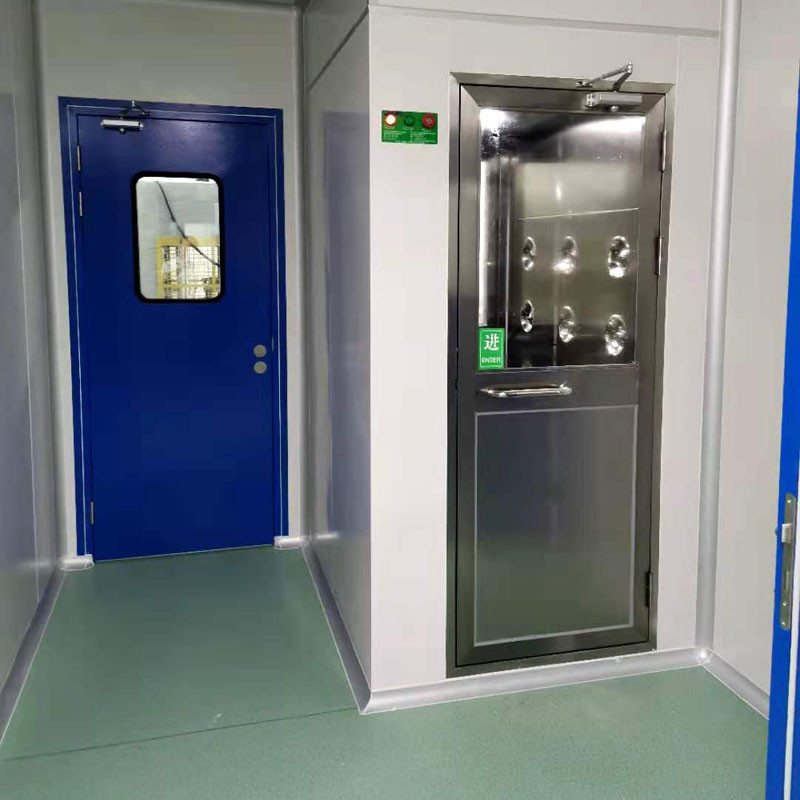

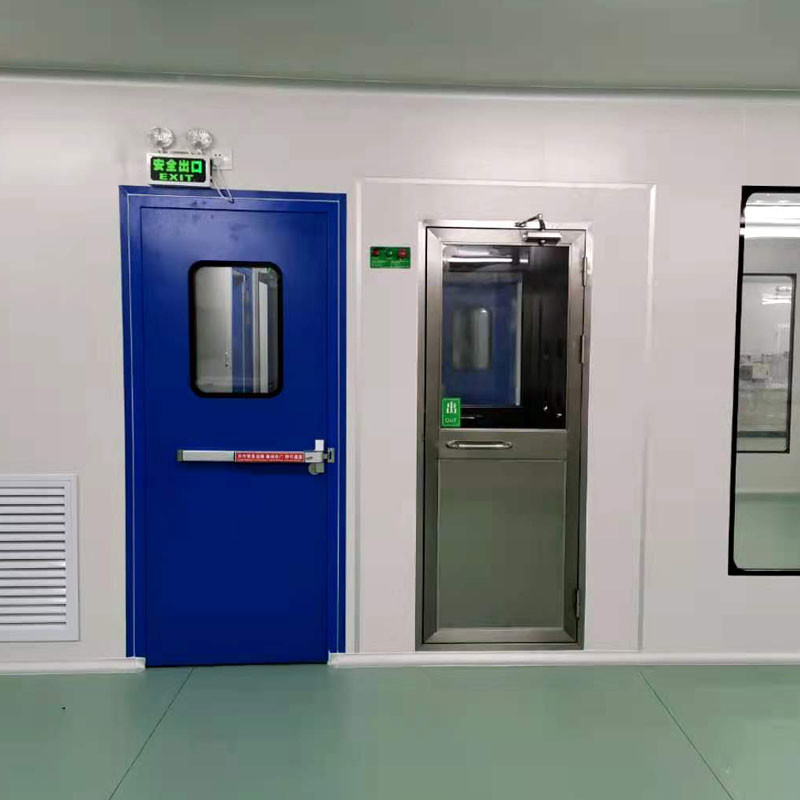

Double Blower Cleaning Airlock 220V Air Showers For Clean Rooms


Double Blower Air Shower Cleaning Airlock Room Equipment For Electronic Factory


Main characters

Material: Stainless Steel SUS304/201/Q195;


Electronic Interlock. When A door opens, B door is locking. A, B doors can not open when blowing;


Emergency off button is installed according to customers' needs in case of emergency happens. Once press, two doors open;


Color LCD screen, touch-point switch to control blowing time and lamp time.


Infrared sensor automatic blowing, automatic stop;


Two-side blowing, left and right, stainless steel nozzles. Three-side blowing can be provided according to customers' needs;


Germany Dorma door closer, stable. more door closers for choose;


360-degree rotatable nozzles are installed according to customers' needs to keep high efficiency for blowing off particles from personnel;


Feature :

Applicable Number of People:1 person

Materials: All Full Set Stainless SUS304 or coated cold rolled steel

Number of Nozzle: 12(Two Sides) Stainless Steel 304

Mouth Diameter of Nozzle: Φ30mm

Control panel: sus304 frame,LCD display, PLC control system

Speed of Air Flow at the Nozzle:>28m/s


Lock: Electronic Interlock,two door can't open at the same time.

Pre-Filter: 600*350*10(mm),2PCs,synthetic fiber with aluminum

HEPA Filter: 2PCs,600*600*100(mm),

FAN:2PCs,Power: 0.55KW, Air Volume:1000/PCS,Air Pressure:1200Pa

LAMP:1PCs LED light,Power:1*7W.

Shower Time: 0-99s adjustment


HEPA Filter Efficiency: H13,99.995%@0.38um.

Maximum Power Consumption: 1.1KW

Voltage available:380VAC / 5Phase, 50HZ(can make other standard voltage


Specifications FL1R115 FL1R1401 FL2R1402 FL3R1403 FL1800 FL2100
Air shower room size
1150×1000×2050 1400×1000×2050 1400×1600×2050 1400×2000×2050 1800×2000×2050 2100×2000×2050
The showing area size
790×910× 1930 790×910× 1930 790×1530×1930 790×1910× 1930 1200×1910× 1930 1500×1910× 1930
HEPA filter nos 610*610*100 mm 1 pc 610*610*100 mm 2 pcs 610*610*100 mm 2 pcs 610*610*100 mm 4 pcs 610*610*100 mm 4 pcs 610*610*100 mm 4 pcs
Nozzle number(pc) 6 12 18 24 24 24
Efficiency 99.99 % 0.3 um (H14)
Wind(m/s) 20~28
Power 3phase 380V 50HZ( option:220V ,3 phase or 220 V 1phase etc )
Power(KW) 0.75 1.5 2 2.2 3 4.5
Suitable Numbers 1~2 1~2 3 4 many many
