Full 304 Stainless Steel AC380V Air Shower System PLC Programming

Product Details:
Place of Origin: china
Brand Name: alphaclean
Certification: ce
Model Number: customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Polywood packing
Delivery Time: 10 days
Payment Terms: T/T, L/C
Supply Ability: 100sets
  • Detail Information
  • Product Description

Detail Information

Warranty: 1 Year Voltage: AC380V, 220V/ 50, 60hz,single Or 3phase
Type: Automatic Induction Access Door: Inside Open Sliding Door
Dimension(l*w*h): 1600*1300*2200 Product Name: Air Shower System,Clean Room Air Showers
High Light:

AC380V Air Shower System

,

SS304 Air Shower System

,

AC380V Clean Room Air Showers

Product Description

Full 304 Stainless Steel AC380V Air Shower System PLC Programming



Industry Cleanroom Stainless Steel Air Shower With Automatic Sliding Doors



1. Special ultra thin blowing tube housing and fan, match with rotatable embedded stainless steel nozzle, greatly increased the space utilization and blowing tube effect.

2. automatically showering with High quality infrared sensor;

2. Adopts single chip microcomputer control, LCD display working status;

3. Imported electronic interlock device, two doors can not opened at same time;

4. With G1 and HEPA filter to ensure the purification class;

5. Standard of the modular design, make field assembly faster and more convenient maintenance.

6. Functions and forms can be changed according to user needs and site conditions.



Open ways : sensor / switch / hand touch / card / fingerprint / face identification / auto-fast rolling door



Brand name Alphaclean Cleanliness level 99.99% 0.5 um
Product name Automatic sliding door air shower Air showering velocity 18-25 m / s
Frame SUS 304 Air showering time 0-99 S Adjustable
Rated consumption 1500 w Voltage 380 v/ 50 hz
Inner dimension 790*860*1930 Number of nozzles 12
Overall dimension 1600*1300*2200 Applicable persons 1 ~ 2
Way of control Infrared automatic sensing,electronic interlock,manual touch
Suitable for Laboratory ,pharmaceutical ,electric ,chemical ,Food processing, mechanical instruments, aviation, automobile, printing and other clean room workshops

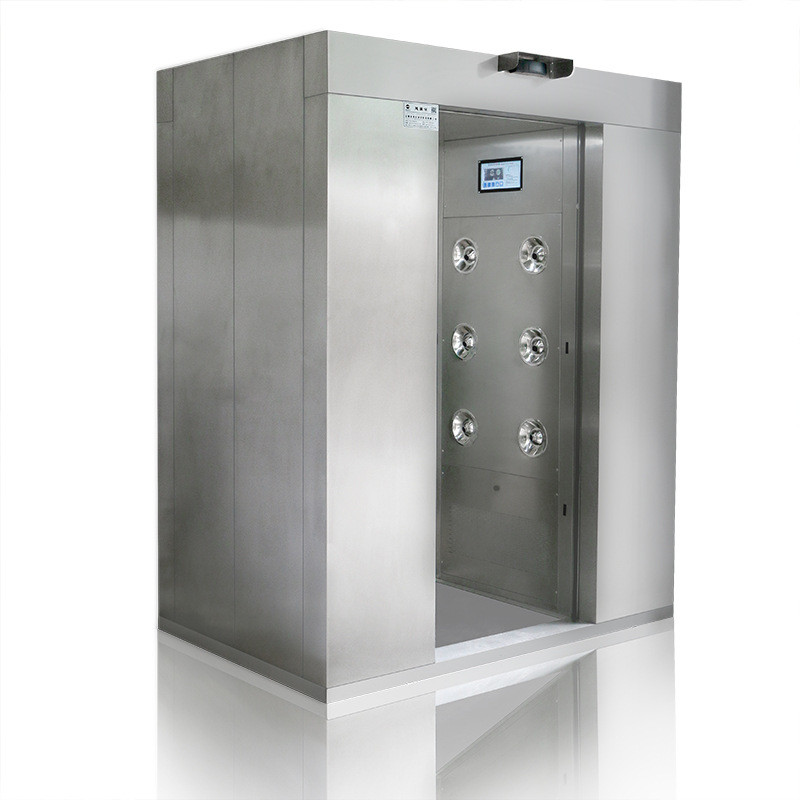

Full 304 Stainless Steel AC380V Air Shower System PLC Programming 0

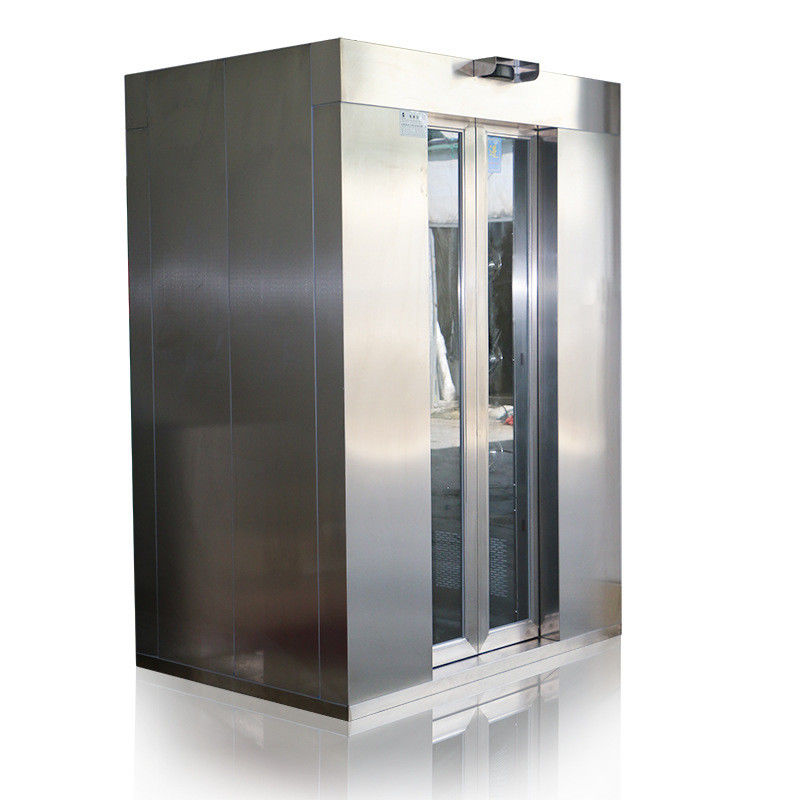

Full 304 Stainless Steel AC380V Air Shower System PLC Programming 1
