Alpha Clean Air Technology Co.,Ltd

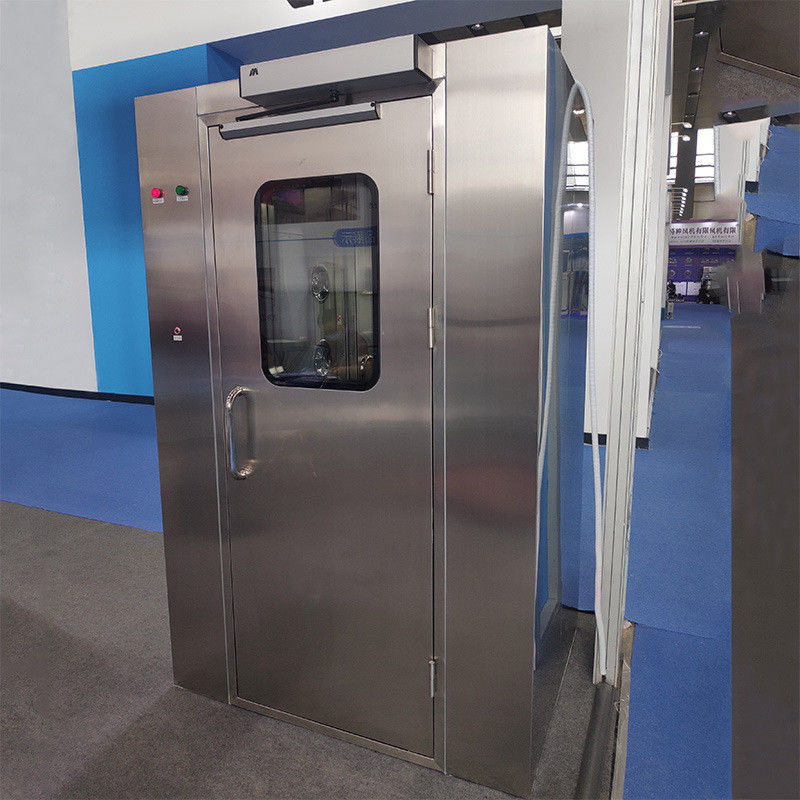

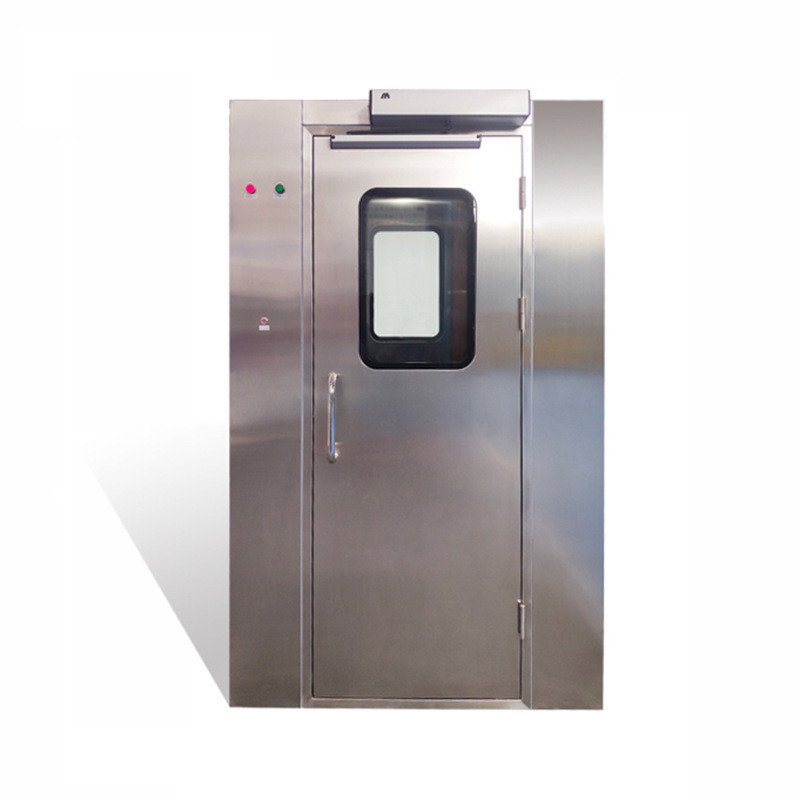

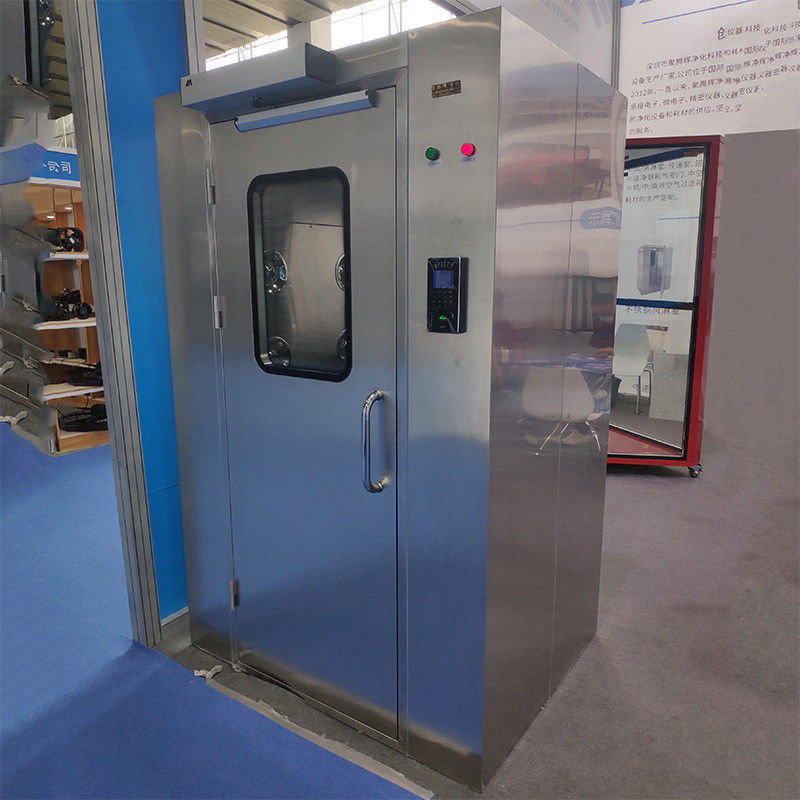

Auto Induction Swing Door 50HZ Air Shower Booth In Pharmaceutical Industry

Product Details:
Place of Origin: china
Brand Name: alphaclean
Certification: ce
Model Number: customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Polywood packing
Delivery Time: 10 days
Payment Terms: T/T, L/C
Supply Ability: 100sets
  • Detail Information
  • Product Description

Detail Information

Warranty: 1 Year Voltage: 380, 220v/ 50, 60hz,single Or 3phase
Type: Identificaiton System By Card,fingerprint,facial Recognition Door: Automatic Swing Door
Dimension(l*w*h): 1290 × 1000 × 2040 Product Name: Air Shower Booth
High Light:

50HZ Air Shower Booth


50HZ Air Shower In Pharmaceutical Industry


60HZ Air Shower Booth

Product Description

Auto Induction Swing Door 50HZ Air Shower Booth In Pharmaceutical Industry


Swing Door Auto Induction Open Clean Room Air Showers For Biological Engineering Laboratory


1. Special ultra thin blowing tube housing and fan, match with rotatable embedded stainless steel nozzle, greatly increased the space utilization and blowing tube effect.

2. automatically showering with High quality infrared sensor;

2. Adopts single chip microcomputer control, LCD display working status;

3. Imported electronic interlock device, two doors can not opened at same time;

4. With G1 and HEPA filter to ensure the purification class;

5. Standard of the modular design, make field assembly faster and more convenient maintenance.

6. Functions and forms can be changed according to user needs and site conditions.


Open ways : sensor / switch / hand touch / card / fingerprint / face identification / auto-fast rolling door


Cargo air showers offer a convenient and automated solution to cleaning the surfaces of work in progress or finished goods, as well as provide a buffer area between two areas of different cleanliness. Modern cargo air showers can be categorized into four main types:

(1) Manual Door Cargo Air Showers- Less common; mostly used for smaller items

(2) Automatic SWING Door Cargo Air Showers - Suitable for small trailers and/or channels that are double use for cargo and personnel

(3) Automatic SLIDING Door Cargo Air Showers - Suitable for forklifts and other large vehicles, as well as channels with high amounts of traffic

(4) Assembly Line Cargo Air Showers - Suitable for cleaning products moving along the assembly line


Model SHL1290
Overall dimension 1290 × 1000 × 2040 mm
Inside dimension 790 × 860 × 1900 mm
Nozzle numbers 12 pcs Φ 25mm
Showering time 10 -99 s adjustable (factory setting is 10s )
Casing material SUS304
Door SUS304 with transparent window door
HEPA filter size 610 × 610 × 50 * 2pcs
Pre filter size 2 pcs
Efficiency 99.5% 0.5 um
Fan consumption 550 w × 2
Air velocity 20- 25 m/s
light 6w 1 pcs
power 3phase,380v 50 hz
