Alpha Clean Air Technology Co.,Ltd

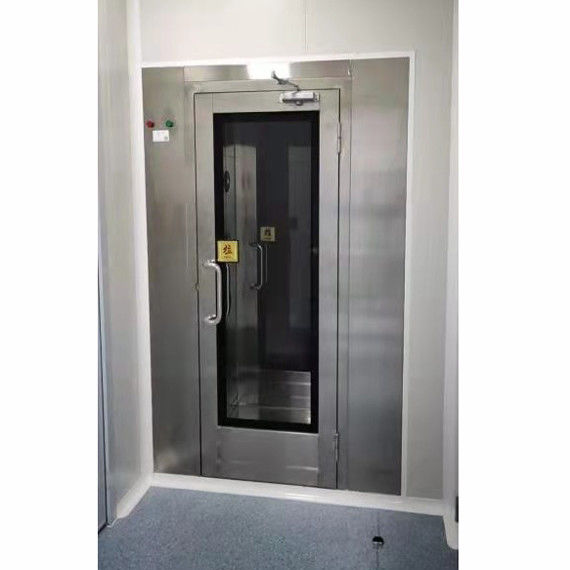

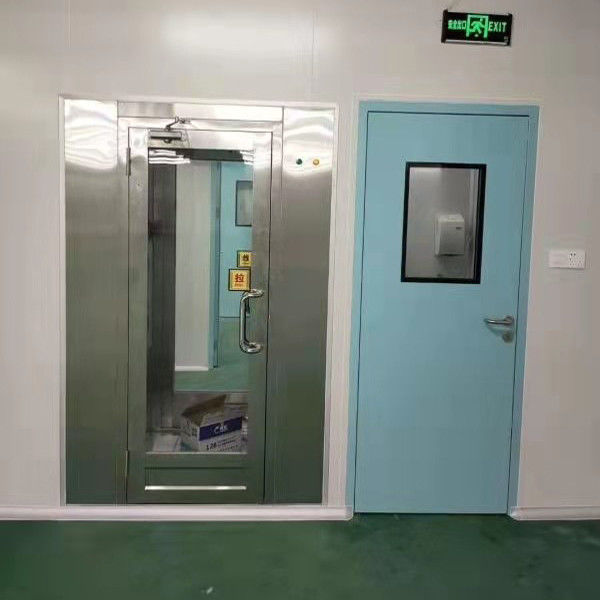

Single Person SUS304 220V Cleanroom Air Shower In Pharmaceutical Industry

Product Details:
Place of Origin: china
Brand Name: alphaclean
Certification: ce
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Polywood packing
Delivery Time: 10 days
Payment Terms: L/C, T/T
Supply Ability: 200sets
  • Detail Information
  • Product Description

Detail Information

Voltage: 380/220V ,50/60hz Single Or 3phase Dimension(l*w*h): Customized
Material: Stainless Steel SUS304/201/Q195; Air Shower Time: 0-99s
Door: Elctronic Interclock Blowing Side: Double Side
Warranty: 1 Year
High Light:

220V Cleanroom Air Shower


380V Filter Air Shower


Ce 2 Person Cleanroom Air Shower

Product Description

Single Person SUS304 Cleanroom Air Shower In Pharmaceutical Industry


single person clean door interlock air shower cleanroom use


Main characters


Material: Stainless Steel SUS304/201/Q195;


Electronic Interlock. When A door opens, B door is locking. A, B doors can not open when blowing;


Emergency off button is installed according to customers' needs in case of emergency happens. Once press, two doors open;


Color LCD screen, touch-point switch to control blowing time and lamp time.


Infrared sensor automatic blowing, automatic stop;


Two-side blowing, left and right, stainless steel nozzles. Three-side blowing can be provided according to customers' needs;


Germany Dorma door closer, stable. more door closers for choose;


360-degree rotatable nozzles are installed according to customers' needs to keep high efficiency for blowing off particles from personnel;

System: infrared Automatic reaction system,

Interlock: electric/ mechanical

Showering time: The 0-99 seconds adjustable (99s factory defaults)

Structure : open side by side or right-angle to open the door

External frame: Stainless steel or coated cold-roll steel

Door, floor, nozzle and panel: stainless steel

Filter : primary and hepa filter

Fan: low vibration, low noise, imported or domestic fan

Winds: 20~28 m/s

Power: 220v/110v/380v

Optional: Alternative frame materials and size available on request.


Specifications FL1R115 FL1R1401 FL2R1402 FL3R1403 FL1800 FL2100
Air shower room size
1150×1000×2050 1400×1000×2050 1400×1600×2050 1400×2000×2050 1800×2000×2050 2100×2000×2050
The showing area size
790×910× 1930 790×910× 1930 790×1530×1930 790×1910× 1930 1200×1910× 1930 1500×1910× 1930
HEPA filter nos 610*610*100 mm 1 pc 610*610*100 mm 2 pcs 610*610*100 mm 2 pcs 610*610*100 mm 4 pcs 610*610*100 mm 4 pcs 610*610*100 mm 4 pcs
Nozzle number(pc) 6 12 18 24 24 24
Efficiency 99.99 % 0.3 um (H14)
Wind(m/s) 20~28
Power 3phase 380V 50HZ( option:220V ,3 phase or 220 V 1phase etc )
Power(KW) 0.75 1.5 2 2.2 3 4.5
Suitable Numbers 1~2 1~2 3 4 many many
