Product Details:
|
|
| Place of Origin: | china |
|---|---|
| Brand Name: | alphaclean |
| Certification: | ce |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Polywood packing |
| Delivery Time: | 10 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200sets |
|
Detail Information |
|||
| Voltage: | 380/220V ,50/60hz Single Or 3phase | Dimension(l*w*h): | Customized |
|---|---|---|---|
| Material: | Stainless Steel Ss304 | Air Shower Time: | 0-99s |
| Type: | For 4- 6 Person | Door: | Electronic Interclock |
| Blowing Side: | Double Side | Warranty: | 1 Year |
| High Light: | 50HZ Decontamination Air Shower,50HZ Air Shower Cleanroom,SS304 Decontamination Air Shower |
||
Product Description

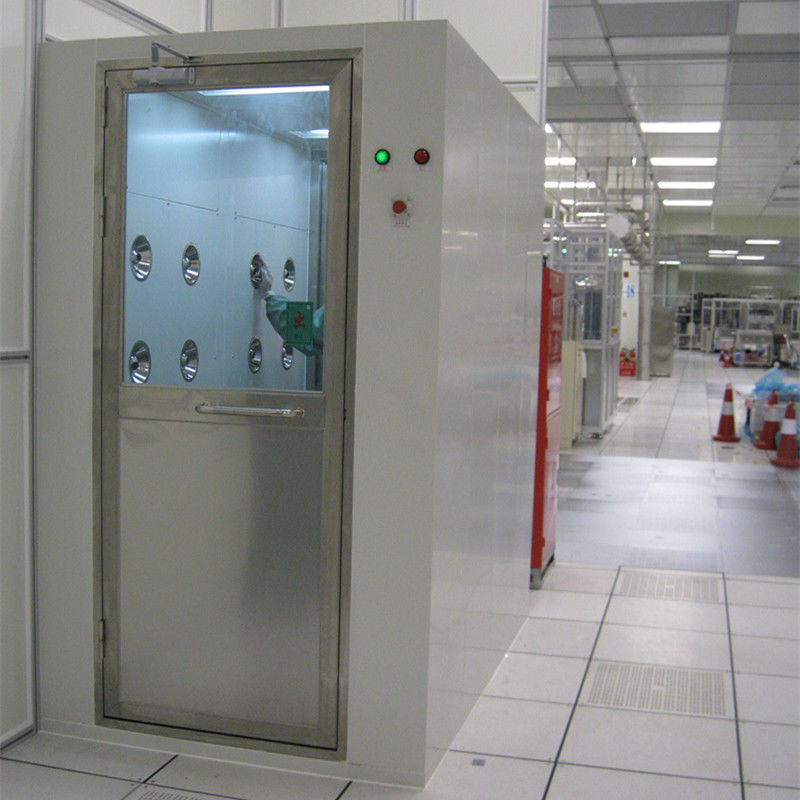

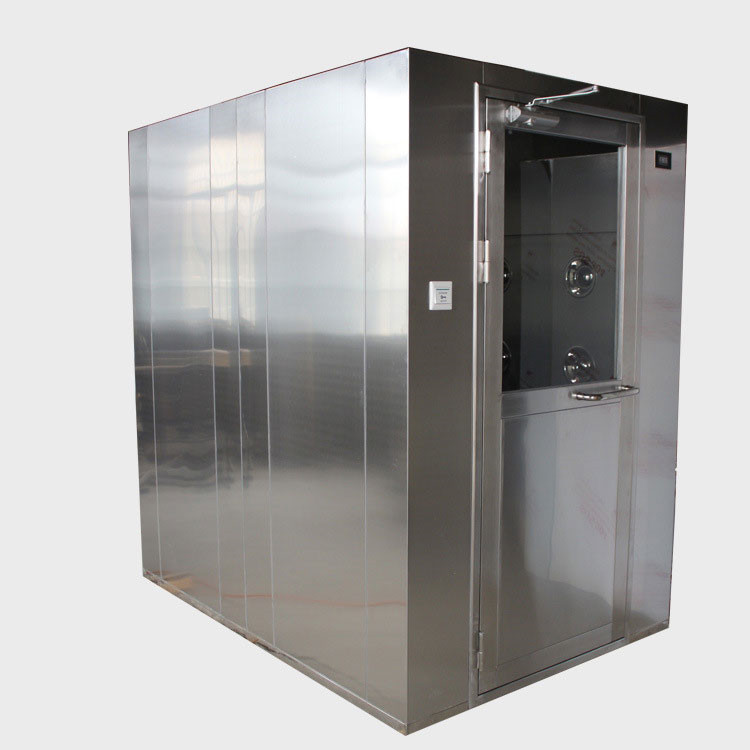

6 Person 50HZ Decontamination Air Shower Electromagnetic Interlock
4 - 6 Person Automatic Air Shower Clean Room Electromagnetic Interlock Door For Biological Manufacturing
Working steps:
The staff enter to the air shower room, the front door is automatically opened → the personnel enters the air shower room, the front door is
automatically closed → the air shower automatically starts the blowing mode → after the set blowing time is reached, the back door is
automatically opened → the personnel walks out of the air shower room, and the back door automatically shut down.
Main characters
Material: Stainless Steel SUS304/201/Q195;
Electronic Interlock. When A door opens, B door is locking. A, B doors can not open when blowing;
Emergency off button is installed according to customers' needs in case of emergency happens. Once press, two doors open;
Color LCD screen, touch-point switch to control blowing time and lamp time.
Infrared sensor automatic blowing, automatic stop;
Two-side blowing, left and right, stainless steel nozzles. Three-side blowing can be provided according to customers' needs;
Germany Dorma door closer, stable. more door closers for choose;
360-degree rotatable nozzles are installed according to customers' needs to keep high efficiency for blowing off particles from personnel;
Feature :
Applicable Number of People:1 person
Materials: All Full Set Stainless SUS304 or coated cold rolled steel
Number of Nozzle:12(Two Sides) Stainless Steel 304
Mouth Diameter of Nozzle:Φ30mm
Control panel: sus304 frame,LCD display, PLC control system
Speed of Air Flow at the Nozzle:>28m/s
Lock: Electronic Interlock, two door can't open at the same time.
Pre-Filter: 600*350*10(mm),2PCs,synthetic fiber with aluminum
HEPA Filter: 2PCs,600*600*100(mm),
FAN:2PCs,Power: 0.55KW, Air Volume:1000/PCS,Air Pressure:1200Pa
LAMP:1PCs LED light,Power:1*7W.
Shower Time: 0-99s adjustment
HEPA Filter Efficiency: H13,99.995%@0.38um.
Maximum Power Consumption:1.1KW
Voltage available: 380VAC / 5Phase,50HZ(can make other standard voltage
| Specifications | FL1R115 | FL1R1401 | FL2R1402 | FL3R1403 | FL1800 | FL2100 |
| L×W×H(mm) Air shower room size |
1150×1000×2050 | 1400×1000×2050 | 1400×1600×2050 | 1400×2000×2050 | 1800×2000×2050 | 2100×2000×2050 |
| L×W×H(mm) The showing area size |
790×910× 1930 | 790×910× 1930 | 790×1530×1930 | 790×1910× 1930 | 1200×1910× 1930 | 1500×1910× 1930 |
| HEPA filter nos | 610*610*100 mm 1 pc | 610*610*100 mm 2 pcs | 610*610*100 mm 2 pcs | 610*610*100 mm 4 pcs | 610*610*100 mm 4 pcs | 610*610*100 mm 4 pcs |
| Nozzle number(pc) | 6 | 12 | 18 | 24 | 24 | 24 |
| Efficiency | 99.99 % 0.3 um (H14) | |||||
| Wind(m/s) | 20~28 | |||||
| Power | 3phase 380V 50HZ( option:220V ,3 phase or 220 V 1phase etc ) | |||||
| Power(KW) | 0.75 | 1.5 | 2 | 2.2 | 3 | 4.5 |
| Suitable Numbers | 1~2 | 1~2 | 3 | 4 | many | many |
