Product Details:
|
|
| Place of Origin: | china |
|---|---|
| Brand Name: | alphaclean |
| Certification: | ce |
| Model Number: | 4*2 feet |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Polywood packing |
| Delivery Time: | 10 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000sets |
|
Detail Information |
|||
| Frame: | Galvalume | Air Flow: | 2000 M3/h |
|---|---|---|---|
| Warranty: | 1 Year | Hepa Filter: | 99.99% 0.3 Um |
| Noise: | 52-58dbA | Out Power: | 150W, 190W, 255W |
| High Light: | 150W FFU Fan Filter Unit,190W FFU Fan Filter Unit,150W Cleanroom Fan Filter Units |
||
Product Description

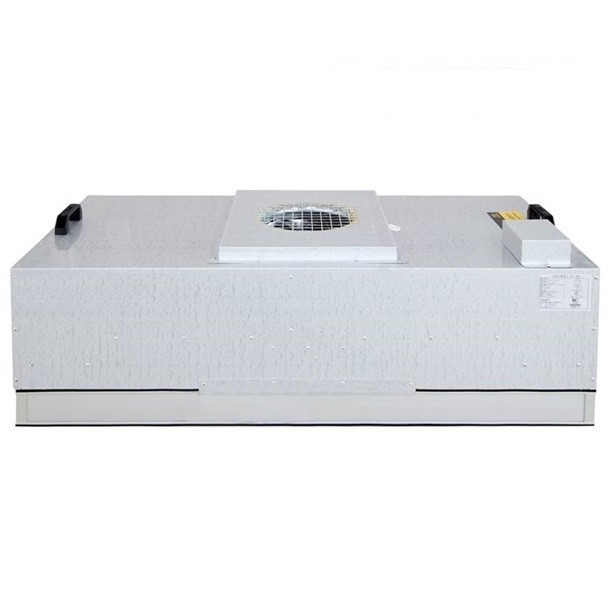

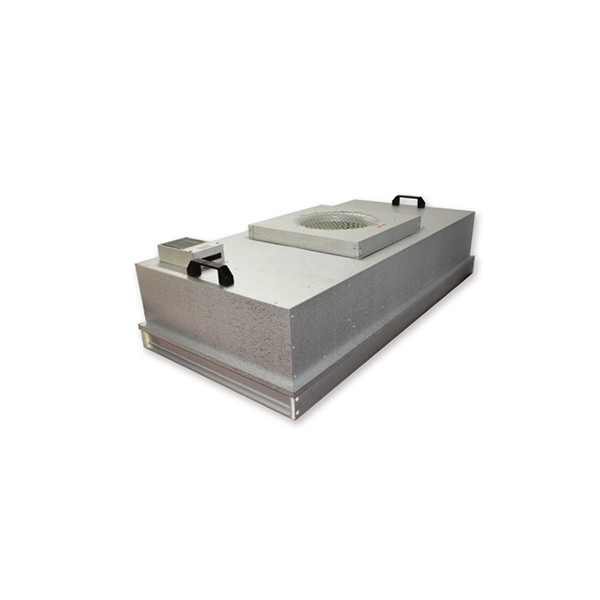

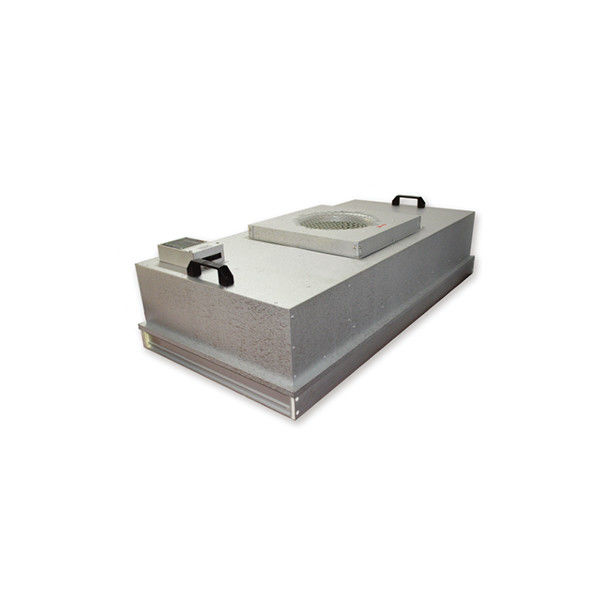

4*2 Feet Housing Out Power 150W FFU Fan Filter Unit For Clean Room
FFU fan filter unit is mainly used for purify the air into the clean area to make sure it can reach requirement cleanliness class,
Uniform air wind blow out at a speed of 0.45m/s with adjustable speed ±20%..
Suitable for Class 1-1000 clean room
Simple and light design,low height ,which can save space and is easily for installation and daily maintenance.
Unique inlet air channel ,Low vibration and noise
Uniform and steady air flow
High efficiency motor ,three speed control ,low current consumption and electricity saving
|
Model |
FFU-1175S |
FFU-57S |
FFU-87S |
FFU-1175S2 |
FFU-725S |
|
FFU-1175Z |
FFU-57Z |
FFU-87Z |
FFU-1175Z2 |
FFU-725Z |
|
|
Nominal Volume (m3/h) |
1080 |
530 |
1650 |
2200 |
1700 |
|
Noise Db(A) |
48-54 dbA |
48-54dbA |
50-56dbA |
52-58dbA |
50-56dbA |
|
Hepa filter efficiency |
≥99.99% ~ 99.9995%( @≥0.3μm) |
||||
|
Power |
AC220V/110V±10%,single phase ,50Hz~60HZ |
||||
|
The Out Power (W) |
150 |
150 |
190 |
255 |
190 |
|
Casing size L*W*H(mm) |
1175*575*277 |
575*575*262 |
875*1175*350 |
1175*1175*350 |
725*1475*345 |
|
Hepa Filter (mm) |
1170*575*70 |
575*575*70 |
875*1175*70 |
1170*1170*70 |
720*1470*70 |
|
|
protection grid on top |
||||
