Alpha Clean Air Technology Co.,Ltd

304 Stainless Steel Frame Hepa H13 FFU Fan Filter Unit Air Purification

Product Details:
Place of Origin: china
Brand Name: alphaclean
Certification: CE
Model Number: 4*2 feet
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Polywood packing
Delivery Time: 10 days
Payment Terms: L/C, T/T
Supply Ability: 2000sets
  • Detail Information
  • Product Description

Detail Information

Frame: 304 Stainless Steel Air Flow: 1200 M3/h
Warranty: 1 Year Filter Efficiency: H13~U17
Function: Air Purification Wind Speed: 0.45 M/s
High Light:

H13 FFU Fan Filter Unit

,

U17 FFU Fan Filter Unit

,

H13 Hepa Fan Filter Unit

Product Description

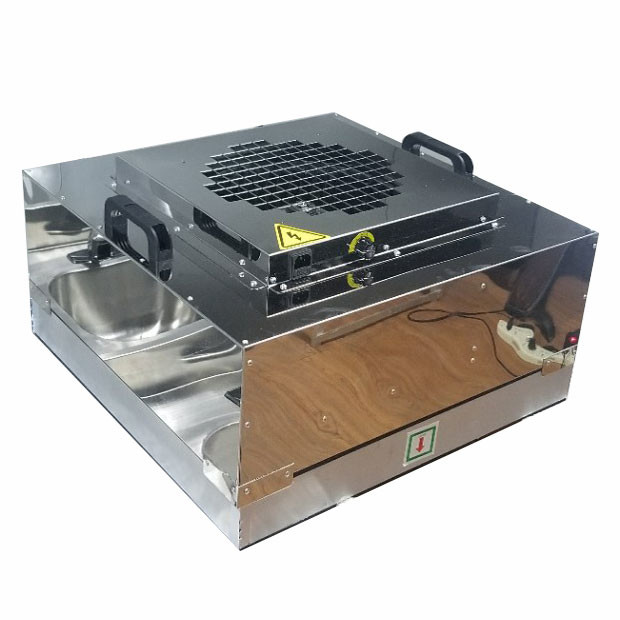

304 Stainless Steel Frame Hepa H13 FFU Fan Filter Unit Air Purification



304 Stainless Steel Casing Fan Powered Hepa Filter



FFU is self-clean air equipment. It can be installed to the ceiling or settled on the holder, which can reach Class 100. This FFU has HEPA filter and pre-filter. The fan absorbs the air from the top of it, and through the pre-filter and HEPA filter. The clean air after filtering will be send out by the whole air supply grille.



Material Data
Casing material: Galvalume sheet, stainless steel or aviation aluminum.
Fan: Domestic motor or imported motor.
Filter material: Ultra-fine fiberglass or PTFE.
Filter efficiency: H13~U17.
Sealing gasket: Sealing gasket in double air supply sides.
Temperature: Maximum 90°C in continuous service.



AC 220V 50 HZ FFU / BFU  Intake Fan Filter Assembly For Clean Room 0



































  • Suitable for Class 1-1000 clean room

  • Simple and light design,low height ,which can save space and is easily for installation and daily maintenance.

  • Unique inlet air channel ,Low vibration and noise

  • Uniform and steady air flow

  • High efficiency motor ,three speed control ,low current consumption and electricity saving



Model
Parameters

FFU-1175S

FFU-57S

FFU-87S

FFU-1175S2

FFU-725S

FFU-1175Z

FFU-57Z

FFU-87Z

FFU-1175Z2

FFU-725Z

Nominal Volume (m3/h)

1080

530

1650

2200

1700

Noise Db(A)

48-54 dbA

48-54dbA

50-56dbA

52-58dbA

50-56dbA

Hepa filter efficiency

≥99.99% ~ 99.9995%( @≥0.3μm)

The Out Power (W)

150

150

190

255

190

Casing size L*W*H(mm)

1175*575*277

575*575*262

875*1175*350

1175*1175*350

725*1475*345

Hepa Filter (mm)

1170*575*70

575*575*70

875*1175*70

1170*1170*70

720*1470*70

Pre Filters (mm)

as required

power

AC 110 or 220 50 Hz or 60 Hz single phase

speed control

three speed control (manual or computer group control)

operative mode

the power indicator switch operation and failure indicator

overload protection

Double overload protection with motor and controller switch

power access

socket or terminal block
