Product Details:
|
|
| Place of Origin: | china |
|---|---|
| Brand Name: | alphaclean |
| Certification: | ce |
| Model Number: | 4*2 feet |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Polywood packing |
| Delivery Time: | 10 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000sets |
|
Detail Information |
|||
| Frame: | Galvalume | Air Flow: | 2000 M3/h |
|---|---|---|---|
| Warranty: | 1 Year | Hepa Filter: | 99.99% 0.3 Um |
| Motor: | DC Brushless | Type: | DC FFU |
| High Light: | 60Hz Portable Hepa Fan Filter Unit,DC Portable Hepa Fan Filter Unit,DC Fan Filter Unit FFU |
||
Product Description

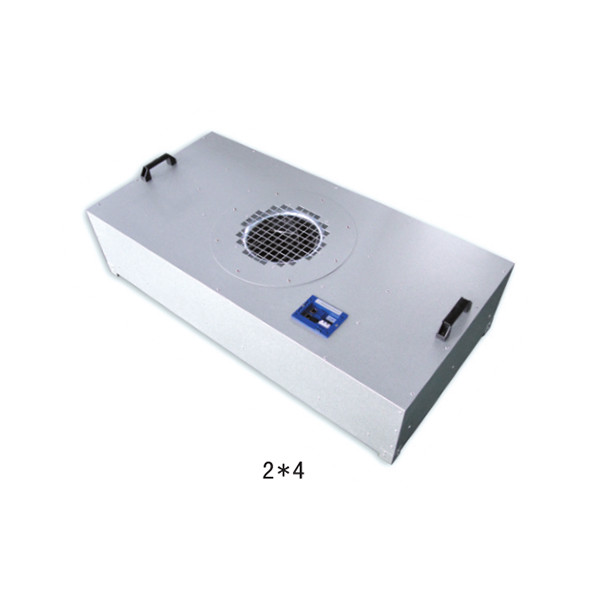

DC Motorized Powe 60Hz Portable Hepa Fan Filter Unit Dust Free Room
DC Motorized Hepa Fan Filter Unit For Dust Free Room
Dust-free air supply fan filter unit series products are mainly used to purify the air into the clean area, in order to meet the requirements of clean environment. It is installed in the clean area or on the T-GRID or on the machine,
Application
Semiconductor, electron, flat-panel display, disc-drive, manufacture and optics, bio-engineering, clean bench, clean room, and any other places.
Operating features:
DC-powered unit has the following benefit and advantage
long life span,low noize,small vibration,adjudtable speed. It can control thousand unit together
Advantage
1. Energy saving: EC direct current smooth voltage wave line to save energy
2. Intelligent control:Use the lisa remote automatic control system and intelligent control to achieve
a perfect match of the mechanical components and electronic control systems
3. Easy start and stop:start up current is only 1/5 AC fan, and can start up many fans at the same time
,good braking performance
4. Low heat power: DC fans with high energy efficiency Low heat power, so you can make additional workspace reduce the heat power
|
Model |
FFU-1175SD |
FFU-87SD |
FFU-1175S2D |
FFU-725SD |
|
FFU-1175ZD |
FFU-87ZD |
FFU-1175Z2D |
FFU-725ZD |
|
|
Nominal Volume (m3/h) |
1080 |
1650 |
2200 |
1700 |
|
Noise Db(A) |
48-54 dbA |
50-56dbA |
52-58dbA |
50-56dbA |
|
Hepa filter efficiency |
≥99.99% ~ 99.9995%( @≥0.3μm) |
|||
|
The Out Power (W) |
90 |
190 |
255 |
190 |
|
Casing size L*W*H(mm) |
1175*575*320 |
875*1175*400 |
1175*1175*400 |
725*1475*330 |
|
Hepa Filter (mm) |
1170*575*70 |
875*1175*70 |
1170*1170*70 |
720*1470*70 |
|
Pre Filters (mm) |
as required |
|||
|
power |
AC 220 50 Hz or 60 Hz single phase |
|||
|
speed control |
Stepless |
|||
|
operative mode |
the power indicator switch operation and failure indicator |
|||
|
overload protection |
Double overload protection with motor and controller switch |
|||
|
power access |
Quick clip terminal board or male/female connector or power line |
|||
