Alpha Clean Air Technology Co.,Ltd

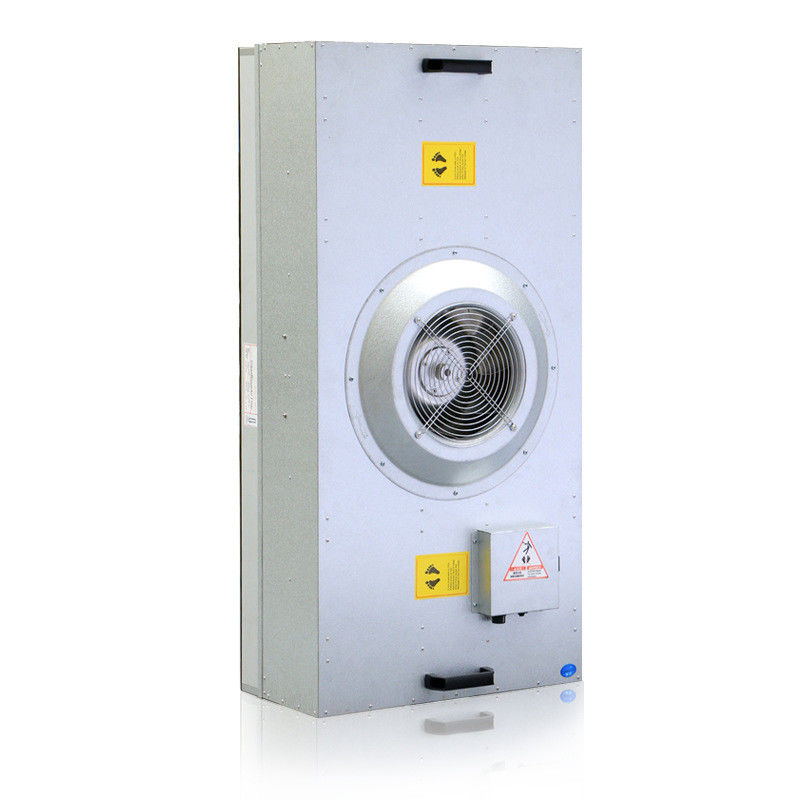

Low Noise 52 dBA Dust Free Air Supply AC220V FFU Fan Filter Unit

Product Details:
Place of Origin: china
Brand Name: alphaclean
Certification: ce
Model Number: 4*2 feet
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Polywood packing
Delivery Time: 10 days
Payment Terms: L/C, T/T
Supply Ability: 2000sets
  • Detail Information
  • Product Description

Detail Information

Frame: Galvalume Air Flow: 1200 M3/h
Warranty: 1 Year Hepa Filter: 99.99% 0.3 Um
OEM: Yes Noise: 52 DBA
High Light:

AC220V FFU Fan Filter Unit


52 dBA FFU Fan Filter Unit


AC220V FFU Unit

Product Description

Low Noise 52 dBA Dust Free Air Supply AC220V FFU Fan Filter Unit


Low Noise Dust Free Air Supply AC Ffu Unit


FFU fan filter unit is mainly used for purify the air into the clean area to make sure it can reach requirement cleanliness class,
Uniform air wind blow out at a speed of 0.45m/s with adjustable speed ±20%..


fan filter units can use modular connecting , fan filter units are widely used in the clean room, Clean Booth Station ,clean work station, clean production lines, packaged applications, laboratories, medical facilities ,local 100 class occasion etc.


Material Data
Casing material: Galvalume sheet, stainless steel or aviation aluminum.
Fan: Domestic motor or imported motor.
Filter material: Ultra-fine fiberglass or PTFE.
Filter efficiency: H13~U17.
Sealing gasket: Sealing gasket in double air supply sides.
Temperature: Maximum 90°C in continuous service.


AC 220V 50 HZ FFU / BFU  Intake Fan Filter Assembly For Clean Room 0


















  • Suitable for Class 1-1000 clean room
  • Simple and light design,low height ,which can save space and is easily for installation and daily maintenance.
  • Unique inlet air channel ,Low vibration and noise
  • Uniform and steady air flow
  • High efficiency motor, three speed control, low current consumption and electricity saving


FFU-1175S FFU-57S FFU-87S FFU-1175S2 FFU-725S
FFU-1175Z FFU-57Z FFU-87Z FFU-1175Z2 FFU-725Z
Nominal Volume (m3/h) 1080 530 1650 2200 1700
Noise Db(A) 48-54 dbA 48-54dbA 50-56dbA 52-58dbA 50-56dbA
Hepa filter efficiency ≥99.99% ~ 99.9995%( @≥0.3μm)
Power AC220V/110V±10%,single phase ,50Hz~60HZ
The Out Power (W) 150 150 190 255 190
Casing size L*W*H(mm) 1175*575*277 575*575*262 875*1175*350 1175*1175*350 725*1475*345
Hepa Filter (mm) 1170*575*70 575*575*70 875*1175*70 1170*1170*70 720*1470*70
Pre Filters (mm) as required
power AC 110 or 220 50 Hz or 60 Hz single phase
speed control three speed control (manual or computer group control)
operative mode the power indicator switch operation and failure indicator
overload protection Double overload protection with motor and controller switch
power access socket or terminal block
