Alpha Clean Air Technology Co.,Ltd

1175*575mm 99.99% 0.3 um FFU Fan Filter Unit With 3 Speed Control

Product Details:
Place of Origin: china
Brand Name: alphaclean
Certification: ce
Model Number: 4*2 feet
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Polywood packing
Delivery Time: 10 days
Payment Terms: L/C, T/T
Supply Ability: 2000sets
  • Detail Information
  • Product Description

Detail Information

Body Sheet: Galvalume Air Flow: 1000 M3/h
Warranty: 1 Year Hepa Filter Efficiency: 99.99% 0.3 Um
Name: Speed Control Switch FFU Application: Clean Booth,clean Room
High Light:

0.3 Um FFU Fan Filter Unit


99.99% FFU Fan Filter Unit


Fan Powered Hepa Filter Units

Product Description

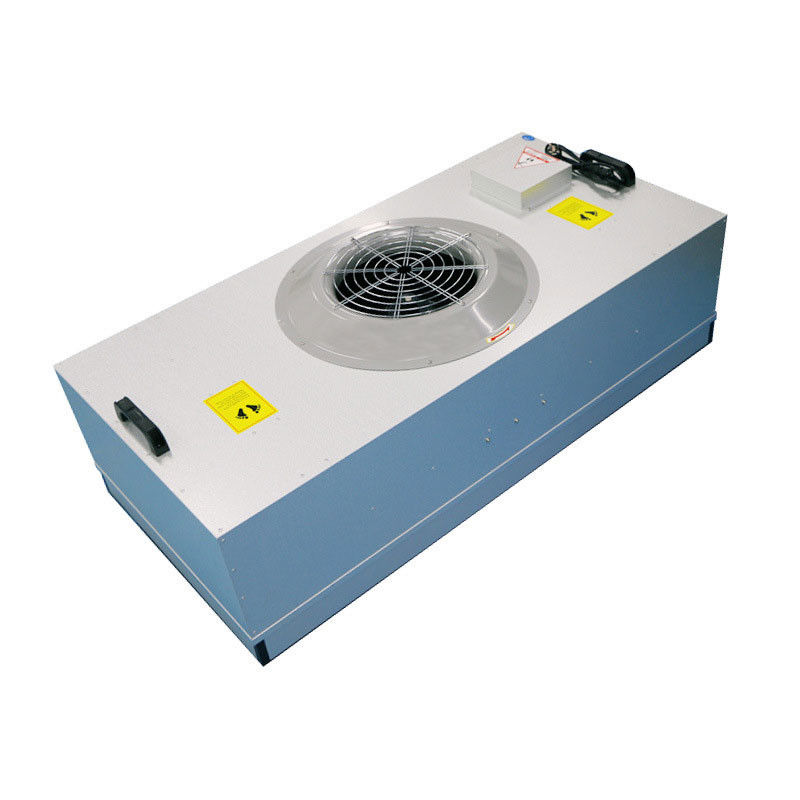

1175*575mm 99.99% 0.3 Um FFU Fan Filter Unit With 3 Speed Control


1175*575mm Fan Filter Unit Ffu With 3 Speed Control


FFU is a single or modular installation of laminar flow filter air supply unit, with FFU as the core can make cleanbooth cleanbench (cleanbench), clean production line (cleanliness) and other requirements of clean space and local purification equipment.


FFU features:

1. Low energy consumption, high performance, low operating cost


2. Perfect structure, low height, uniform wind speed

Scientific air duct design, low resistance, low noise, effectively save the space of technical interlayer.


3. different size available ,adapt to a variety of GRID system; Be able to timely respond to customer's change of external box material, special power supply or fan configuration;


4. Safe and humanized design

Can walk high strength box, to ensure the safety of installation or maintenance personnel, can be remote monitoring and adjustment, easy to operate;


5. Multiple safety protection devices

Equipped with overcurrent relay, motor protection device, fault display lamp, fault signal circuit, and can be installed temperature protector, fuse, motor circuit breaker, etc.


AC 220V 50 HZ FFU / BFU  Intake Fan Filter Assembly For Clean Room 0


















FFU-1175S FFU-57S FFU-87S FFU-1175S2 FFU-725S
FFU-1175Z FFU-57Z FFU-87Z FFU-1175Z2 FFU-725Z
Nominal Volume (m3/h) 1080 530 1650 2200 1700
Noise Db(A) 48-54 dbA 48-54dbA 50-56dbA 52-58dbA 50-56dbA
Hepa filter efficiency ≥99.99% ~ 99.9995%( @≥0.3μm)
Power AC220V/110V±10%,single phase ,50Hz~60HZ
The Out Power (W) 150 150 190 255 190
Casing size L*W*H(mm) 1175*575*277 575*575*262 875*1175*350 1175*1175*350 725*1475*345
Hepa Filter (mm) 1170*575*70 575*575*70 875*1175*70 1170*1170*70 720*1470*70
Pre Filters (mm) as required
power AC 110 or 220 50 Hz or 60 Hz single phase
speed control three speed control (manual or computer group control)
operative mode the power indicator switch operation and failure indicator
overload protection Double overload protection with motor and controller switch
power access socket or terminal block
