4 Persons Cleanroom Air Shower Booth Electronically Interclock

Product Details:
Place of Origin: china
Brand Name: alphaclean
Certification: ce
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Polywood packing
Delivery Time: 10 days
Payment Terms: L/C, T/T
Supply Ability: 200sets
  • Detail Information
  • Product Description

Detail Information

Voltage: 380/220V ,50/60hz Single Or 3phase Dimension(l*w*h): Customized
Material: Stainless Steel Air Shower Time: 0-99s
Type: For 3-4 Persons Door: Electronically Interclock
Blowing Side: Double Side
High Light:

CE 4 Persons Cleanroom Air Shower

,

220V Cleanroom Air Shower

,

380V Stainless Steel Air Shower

Product Description

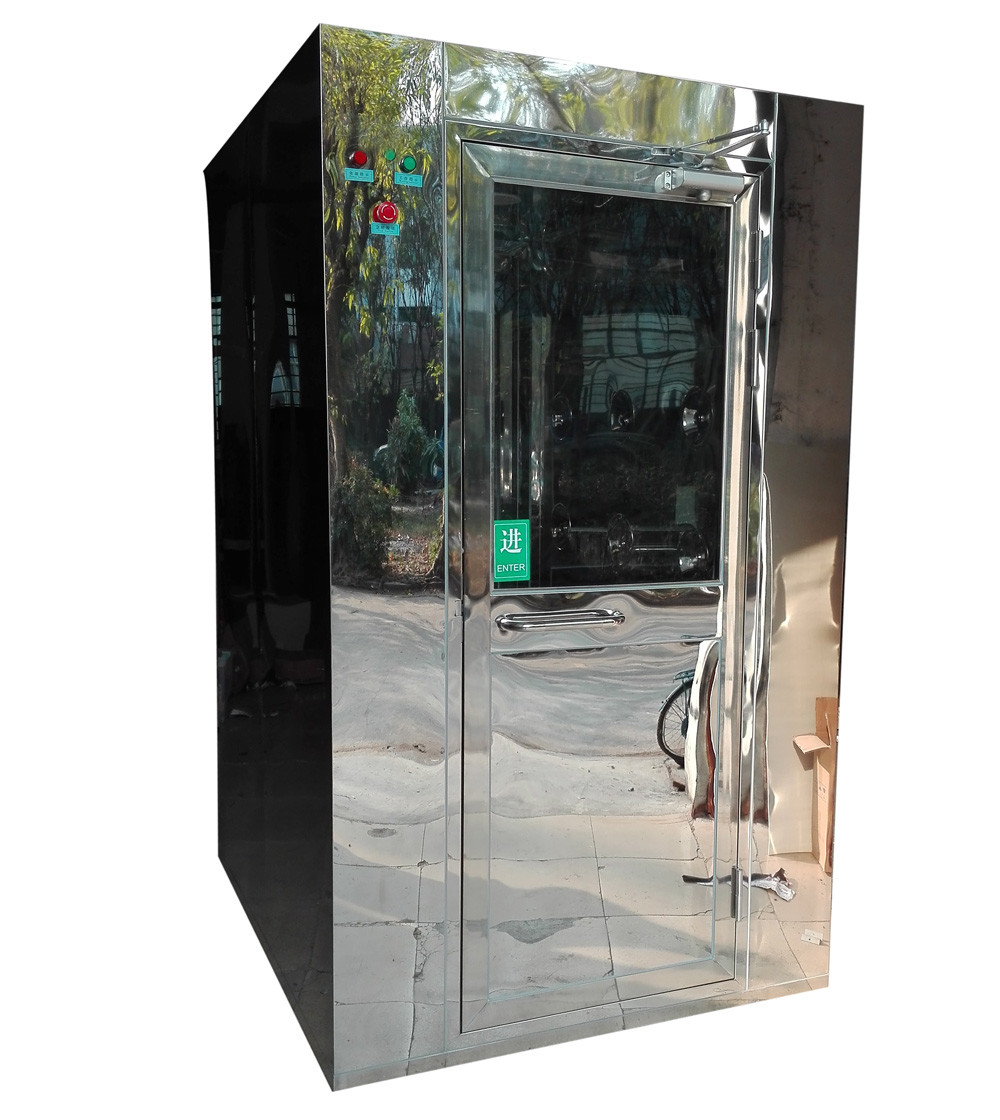

4 Persons Cleanroom Air Shower Booth Electronically Interclock



Factory Stainless Steel Air Shower Room with HEPA filter



Air shower is equipment of cleanroom and fabricated small Room,used for blowing off ppl’s and belongs’s carry on dust,as Well as act as air valve usage,preventing air into the cleanroom without purification which effectively prevent the cleanroom be polluted. The air by the action of fan though the primary filter access Air to plenum chamber.after though HEPA filter cleaning, by the highly speed blowing though air shower nozzle which,direction can be adjusted .the blowing off dust was,recycling to the pre filter to achieve ppl and goods and air shower’s indoor self-recycling clean systems.

System: infrared Automatic reaction system,

Interlock: electric/ mechanical

Showering time: The 0-99 seconds adjustable (99s factory defaults)

Structure: open side by side or right-angle to open the door

External frame: Stainless steel or coated cold-roll steel Door, floor, nozzle and panel: stainless steel

Filter: primary and hepa filter

Fan: low vibration, low noise, imported or domestic fan

Winds: 20~28 m/s

Power: 220v/110v/380v

Optional: Alternative frame materials and size available on request.



Specifications FL1R115 FL1R1401 FL2R1402 FL3R1403 FL1800 FL2100
L×W×H(mm)
Air shower room size
1150×1000×2050 1400×1000×2050 1400×1600×2050 1400×2000×2050 1800×2000×2050 2100×2000×2050
L×W×H(mm)
The showing area size
790×910× 1930 790×910× 1930 790×1530×1930 790×1910× 1930 1200×1910× 1930 1500×1910× 1930
HEPA filter nos 610*610*100 mm 1 pc 610*610*100 mm 2 pcs 610*610*100 mm 2 pcs 610*610*100 mm 4 pcs 610*610*100 mm 4 pcs 610*610*100 mm 4 pcs
Nozzle number(pc) 6 12 18 24 24 24
Efficiency 99.99 % 0.3 um (H14)
Wind(m/s) 20~28
Power 3phase 380V 50HZ( option:220V ,3 phase or 220 V 1phase etc )
Power(KW) 0.75 1.5 2 2.2 3 4.5
Suitable Numbers 1~2 1~2 3 4 many many
