Product Details:
|
|
| Place of Origin: | china |
|---|---|
| Brand Name: | alphaclean |
| Certification: | ce |
| Model Number: | customized |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Polywood packing |
| Delivery Time: | 10 days |
| Payment Terms: | L/C, T/T, Western Union |
|
Detail Information |
|||
| Product Name: | Downflow Clean Booth With Hepa Filter | Material: | Alluminum Alloy |
|---|---|---|---|
| Warranty: | 1 Year | Clean Level: | ISO5 - 8 |
| FFU Nos.: | 100% Covering | Wall Material: | Plexiglass,acrylic And Pvc |
| Type: | Class 100 -10000 Clean Room | Wall: | Soft Anti Static PVC Curtain Etc. |
| High Light: | Class 100 Laminar Air Flow Cabinet,Laminar Airflow Cabinet,Class 100 Vertical Laminar Flow Cabinet |
||
Product Description

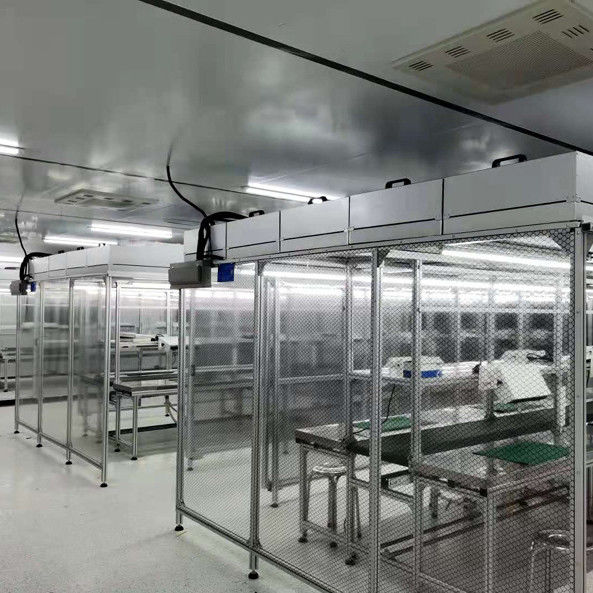

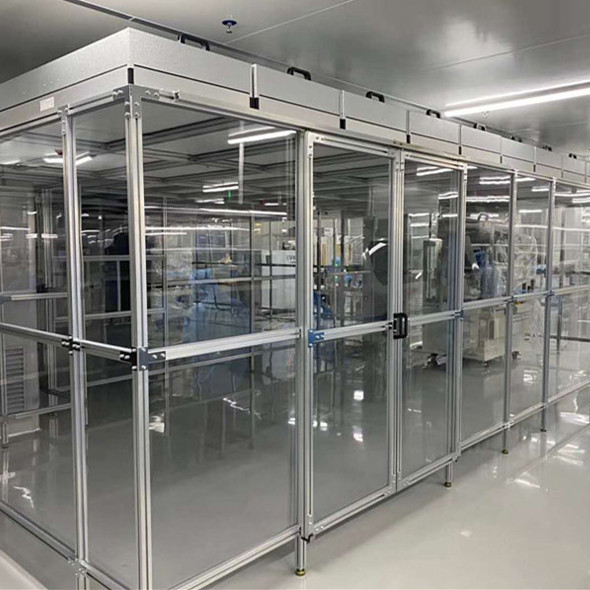

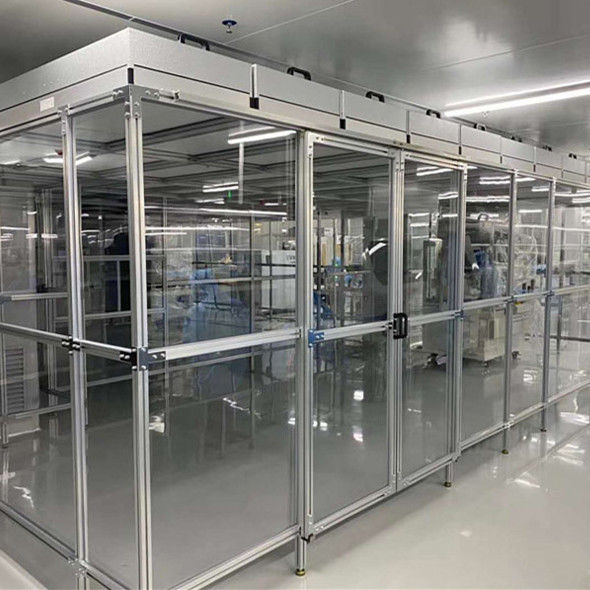

Assembly Line Class 100 Laminar Air Flow Cabinet With Opertaion Table
Vertical Flow Class100 Cleanroom Booth For Assembly Line With Opertaion Table
The fans of Clean Booth press the air in HEPA Air Filters with regular wind pressure, after passing through HEPA Air Filters, vertical and unidirectional airflow is well distributed to the work area, which ensures the high cleanlines.
Structure:
The main frame is a square , surrounded by glass or curtain type, underneath is swivel casters (can be moved at will),
platform is made of punched stainless steel plate (for dust removal)
Mainly used for partial purification stations of assembly lines. Mobile phone film, etc., professional design.
750 mm high counter, two anti-static soft curtain doors, used in conjunction with the assembly line
Product Function:
The clean booth adopts industrial aluminum (or stainless steel square pass, iron square pass spray) as the frame, fan filter unit group (FFU) air supply, surrounding glass or tempered glass, and its internal purification level can reach 100-10000. It is suitable for areas with high local purification requirements in the operation area.
Features:
1. Frame: stainless steel square tube, industrial aluminum alloy square tube, stable, beautiful, no rust, no dust;
2. The clean roof cover is made of 4 cm thick aluminum-plastic composite panels
3. Special purification lamps for clean rooms are used inside.
4. The fan filter unit FFU: adopts centrifugal fan, 1. It has the characteristics of long life, low noise, maintenance-free, low vibration, stable performance, etc. The quality of the fan is reliable, the working life is 100,000 hours or more, and the noise is 50 decibels.
| TYPE | SOFTWALL CLEAN BOOTH | HARDWALL CLEAN BOOTH |
| Wall Material | Anti-static soft PVC wall curtain 106~109Ω | Anti-static acrylic 106~109Ω |
| Cleanliness | From Class 100 to Class 10,000 | |
| Frame Material | Coated steel, anodized aluminum, Stainless Steel | |
| FFU | 2'X4' Galvalume in standard size ,110/220v AC 50/60 hz | |
| HEPA Filter | H14 Hepa filter 99.997% 0.3micro | |
| Lighting | Available in LED and T5 | |
| Air condition |
For your requirement, Available in constant temperature air conditioner /constant temperature and humidity conditioner |
|
CLEANLINESS CLASS LEVEL
| ISO Class | Fed 208 | Controls | HEPA filter coverage as % of ceiling | Air velocity at table level in FPM | Air changes rate per hour |
| 1 | - | Stringent | 100 | ||
| 2 | - | Stringent | 100 | 70 - 130 | ＞ 750 |
| 3 | 1 | Stringent | 100 | 70 - 130 | ＞ 750 |
| 4 | 10 | Stringent | 100 | 70 – 110 | 500 - 600 |
| 5 | 100 | Stringent | 100 | 70 - 90 | 150 - 400 |
| 6 | 1,000 | Intermediate | 33-40 | 25 - 40 | 60 - 100 |
| 7 | 10,000 | Intermediate | 10-15 | 10 - 15 | 25 - 40 |
| 8 | 100,000 | Less stringent | 05-10 | 3 - 5 | 10 - 15 |
