Product Details:
|
|
| Place of Origin: | china |
|---|---|
| Brand Name: | alphaclean |
| Certification: | ce |
| Model Number: | customized |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Polywood packing |
| Delivery Time: | 10 days |
| Payment Terms: | L/C, T/T, Western Union |
|
Detail Information |
|||
| Name: | Downflow Clean Booth With FFU | Material: | Alluminum Alloy OR Spray Coated Steel |
|---|---|---|---|
| Warranty: | 1 Year | Clean Level: | ISO5 - 8 |
| FFU Nos.: | 100% Covering | Wall Material: | Plexiglass,acrylic And Pvc |
| Type: | Class 100 -10000 Clean Room | Wall: | Soft Anti Static PVC Curtain Etc. |
| High Light: | Class 100 Cleanroom Booth,FFU Clean Room Booth,FFU Portable Clean Booth |
||
Product Description

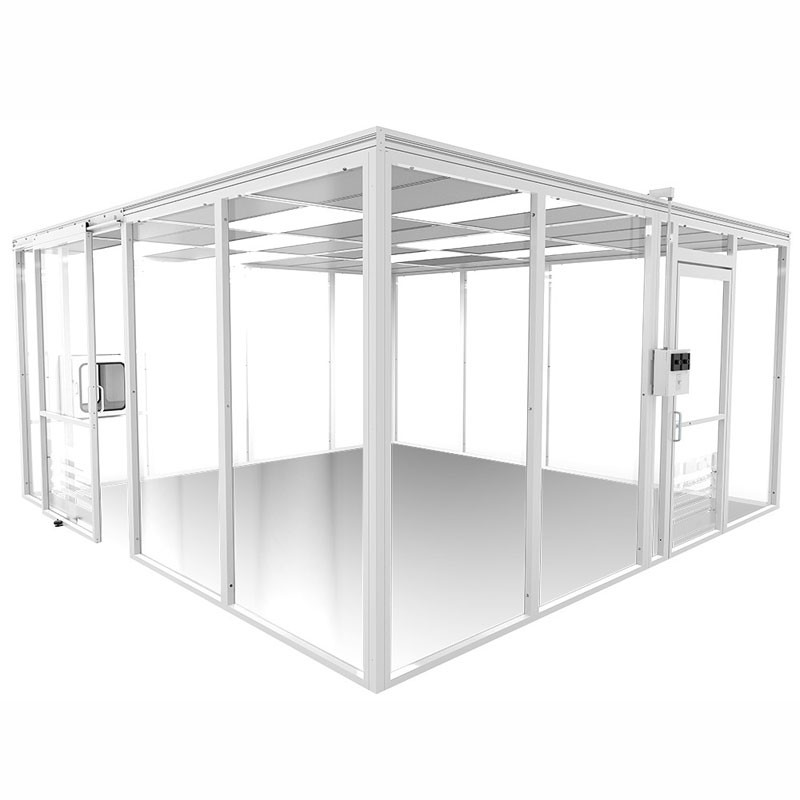

OR Spray Coated Steel Portable Class 100 Cleanroom Booth Laminar Flow
12*12 Feet CLASS 100 Portable Laminar Flow Clean Room Booth
With FFU (Fan Filter Unit) as the core, clean booth provides a high level of cleanliness. It is a good option to create a cleaner space within an existing normal room or a room with low-level of cleanliness.
Easy installation, low cost, modularized design and easy upgrading
Application: LCM, CMOS Camera Module, Touch Play, Optical Module, FILM, Biological Pharmacy,Packing,Food
The structure is made of coated square steel, and the fan filter unit is assembly used to supply air. The surrounding is covered with anti-static drape, and the top is covered with a blind plate to form aarea. The internal purification class can reach 10 --- 100000.
|
|
Main structure Frame and sealing blind plate material : Stainless steel / coated square steel(mm) 50*50 / 100*100 Anodized aluminum (mm) 40*40 / 50 * 50 / 40* 80 Stable, not easy to rust, not easy to produce dust Quick installation of patent structureman The blind plate is closed by paint steel panel or stainless steel panel |
|
Surrounding materials adopts: Anti static drape curtain 2mm ( anti static 106~ 109 Ω) Grid type soft curtain 0.3/0.5mm Acrylic 5mm Tempered glass 5 mm Clear grid, high transparency, visual transparency, and no aging Door and featured accessories Spray Steel plate / stainless steel handle door (double insulated glass window with German DORMA door closer and stainless steel handle) Or PVC anti static strip curtain Fixed foot cup / universal wheel |
|
Purification system FFU fan filter unit Galvanized casing or stainless steel Large air flow centrifugal fan Air flow ( m3 / h) :520/1080/1800/2210 Can run continuously for more than 50,000 hours Low noise, built in diversion wind tunnel Mini pleat HEPA filter 99.99@0 .3 um (H 14) Optional With G4 Pre filter
|
|
Control system Adopt 7 inch / 10 inch LCD touch screen man-machine interface Switch On/Off and mode settings for FFU (operating mode, on duty mode) Realize wind speed adjustment of remote FFU and fault alarm of FFU
|
|
Modular cleanroom floor
Types of flooring : Epoxy resin floor is impact resistant, high load abrasion resistant and easy to clean; PVC dust-proof floor / dust-proof anti-static PVC floor, With rolled / sheet, environmentally friendly, stain-resistant, no dust
|
