Product Details:
|
|
| Place of Origin: | china |
|---|---|
| Brand Name: | alphaclean |
| Certification: | ce |
| Model Number: | customized |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Polywood packing |
| Delivery Time: | 10 days |
| Payment Terms: | L/C, T/T, Western Union |
|
Detail Information |
|||
| Product Name: | Downflow Clean Booth With Hepa Filter | Material: | Aluminum Alloy |
|---|---|---|---|
| Warranty: | 1 Year | Clean Level: | ISO5 - 8 |
| Ffu Nos.: | As Designed | Wall Material: | Plexiglass,acrylic And Pvc |
| High Light: | ISO8 Cleanroom Booth,Downflow Clean Room Booth,Hepa Downflow Booth Pharmaceutical |
||
Product Description

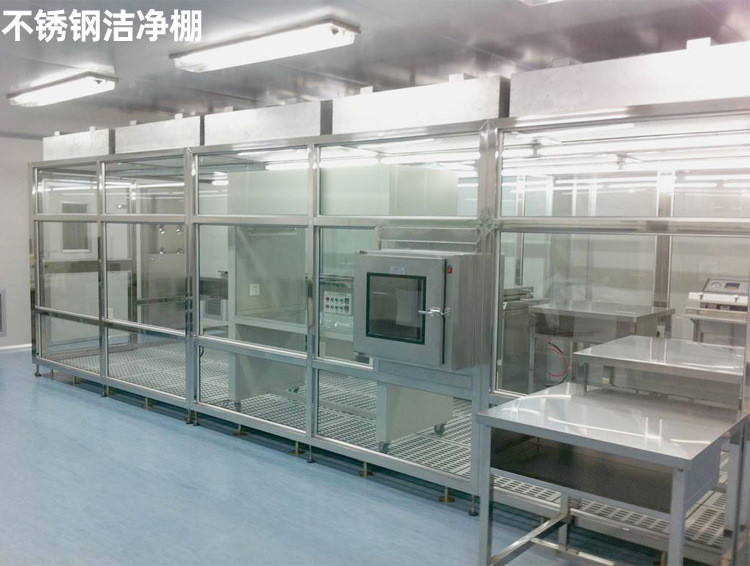

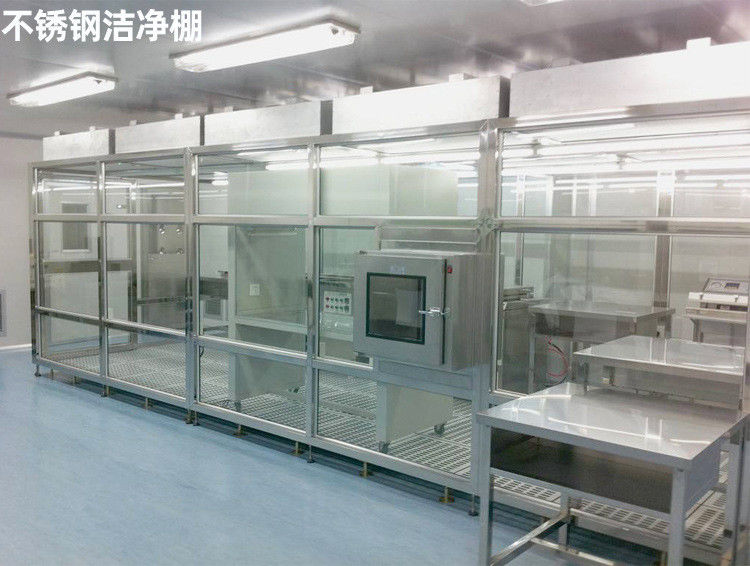

Downflow Aluminum Alloy ISO8 Cleanroom Booth With Hepa Filter
ISO Approved Clean Room Modular Soft Wall downflow clean booth with hepa filter
cleanbooth is the most quick and easy creation of a simple clean room,provide local high air purification area
Assembly structure , easy installation
Greatly shorten the delivery cycle
Removable
Easy to raise the Cleanroom level
Easy to expand the cleanroom area
Effective internal space available
Low cost, fast construction and no floor height limit
Totally customized to meet your demand
| TYPE | SOFTWALL CLEAN BOOTH | HARDWALL CLEAN BOOTH |
| Wall Material | Anti-static soft PVC wall curtain 106~109Ω | Anti-static acrylic 106~109Ω |
| Cleanliness | From Class 100 to Class 10,000 | |
| Frame Material | Coated steel, anodized aluminum, Stainless Steel | |
| FFU | 2'X4' Galvalume in standard size ,110/220v AC 50/60 hz | |
| HEPA Filter | H14 Hepa filter 99.997% 0.3micro | |
| Lighting | Available in LED and T5 | |
| Air condition |
For your requirement, Available in constant temperature air conditioner /constant temperature and humidity conditioner |
|
CLEANLINESS CLASS LEVEL
| ISO Class | Fed 208 | Controls | HEPA filter coverage as % of ceiling | Air velocity at table level in FPM | Air changes rate per hour |
| 1 | - | Stringent | 100 | ||
| 2 | - | Stringent | 100 | 70 - 130 | ＞ 750 |
| 3 | 1 | Stringent | 100 | 70 - 130 | ＞ 750 |
| 4 | 10 | Stringent | 100 | 70 – 110 | 500 - 600 |
| 5 | 100 | Stringent | 100 | 70 - 90 | 150 - 400 |
| 6 | 1,000 | Intermediate | 33-40 | 25 - 40 | 60 - 100 |
| 7 | 10,000 | Intermediate | 10-15 | 10 - 15 | 25 - 40 |
| 8 | 100,000 | Less stringent | 05-10 | 3 - 5 | 10 - 15 |
