Negative Pressure Paint Laminar Flow 50 hz Cleanroom Booth

Product Details:
Place of Origin: china
Brand Name: alphaclean
Certification: ce
Model Number: dispensing booth
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden pallet packing
Delivery Time: 10 - 20 days
Payment Terms: T/T, L/C
Supply Ability: 1000sets
  • Detail Information
  • Product Description

Detail Information

Product Name: Weighing Booth Type: Laminar Flow Clean Booth
Power Supply: AC 220V Single Phase 50 Hz Atmospheric Pressure: 86 KPa - 106 KPa
Material: Full Stainless Steel Air Flow: 0.4 - 0.7 M/s Ajustable
Filter Effciency: HEPA ,medium And Pre Filter Cleanliness Class: Class A/ Class 100 / ISO 5
High Light:

50 Hz Cleanroom Booth


Class 100 Cleanroom Booth


50 Hz Negative Pressure Paint Booth

Product Description

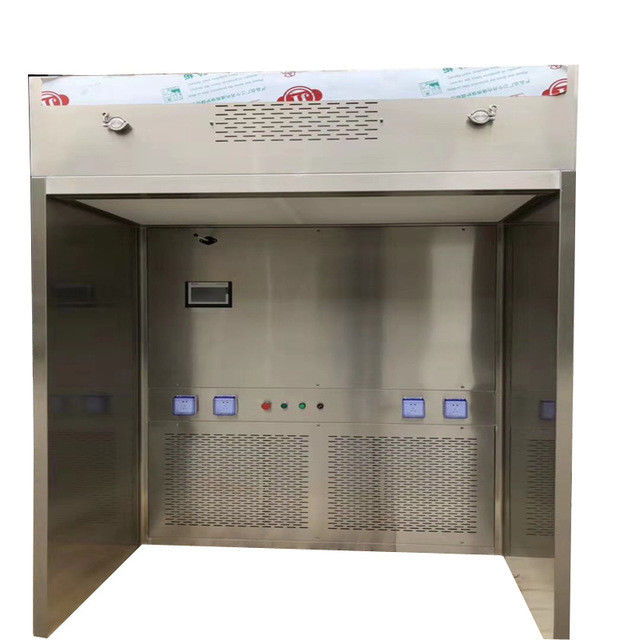

Negative Pressure Paint Laminar Flow 50 Hz Cleanroom Booth


Laminar Flow Negative Pressure Weighing Booth


  Weighing Booth also know as laminar flow booth, dispensing booth is for the pharmaceutical, microbiological research and scientific experiments and other places dedicated local purification equipment, which provides a vertical unidirectional airflow, some clean air circulation in the work area, partly discharged to the nearby area, so that the work area produce negative pressure to prevent cross contamination in order to ensure the high clean class level of the working area.




1) Filter: three-stage filtration of primary, middle and high-efficiency HEPA filters, blue jelly gel sealed high-efficiency filters (efficiency: 99.99%~99.999%@0.3μm), which can meet the test requirements of DOP or PAO;


2) Differential pressure gauge: local made or optional


3) Polymer flow film: significantly improve the uniformity of wind speed on the air outlet;


4) Control part: the frequency converter adjusts the wind speed and speed, and the button controls the lighting, power supply and emergency stop;


5) Illumination: The average illuminance on a plane one meter away from the ground in the weighing room is greater than 300Lux,


6) Weighing platform: for placing electronic balance and filling in records (optional)


7) Socket: equipped with waterproof and dustproof socket, grade: IP66. The quantity is configured according to customer needs.


TNegative Pressure Paint Laminar Flow 50 hz Cleanroom Booth 0

Negative Pressure Paint Laminar Flow 50 hz Cleanroom Booth 1Negative Pressure Paint Laminar Flow 50 hz Cleanroom Booth 2Negative Pressure Paint Laminar Flow 50 hz Cleanroom Booth 3Negative Pressure Paint Laminar Flow 50 hz Cleanroom Booth 4
