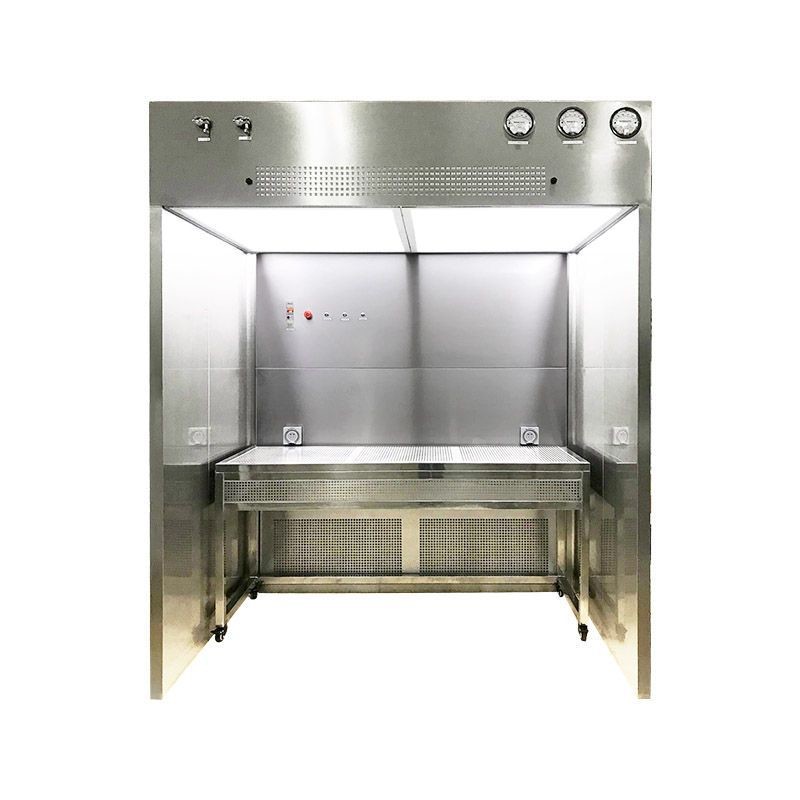

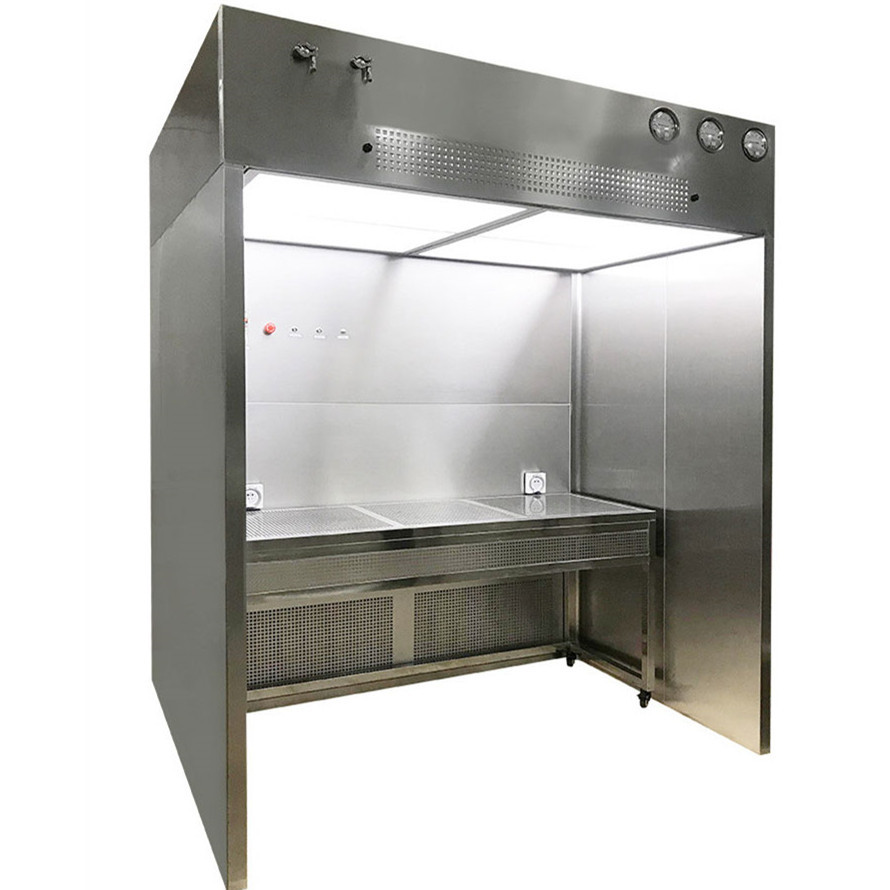

Laminar Air Flow HEPA Cleanroom Booth With Differential Pressure Gauge

Product Description

Laminar Air Flow HEPA Cleanroom Booth With Differential Pressure Gauge

Pharmaceutical Weighing Hood With Differential Pressure Gauge

  Weighing Booth also know as laminar flow booth, dispensing booth is for the pharmaceutical, microbiological research and scientific experiments and other places dedicated local purification equipment, which provides a vertical unidirectional airflow, some clean air circulation in the work area, partly discharged to the nearby area, so that the work area produce negative pressure to prevent cross contamination in order to ensure the high clean class level of the working area.

1) Filter: three-stage filtration of primary, middle and high-efficiency HEPA filters, blue jelly gel sealed high-efficiency filters (efficiency: 99.99%~99.999%@0.3μm), which can meet the test requirements of DOP or PAO;

2) Differential pressure gauge: local made or optional

3) Polymer flow film: significantly improve the uniformity of wind speed on the air outlet;

4) Control part: the frequency converter adjusts the wind speed and speed, and the button controls the lighting, power supply and emergency stop;

5) Illumination: The average illuminance on a plane one meter away from the ground in the weighing room is greater than 300Lux,

6) Weighing platform: for placing electronic balance and filling in records (optional)

7) Socket: equipped with waterproof and dustproof socket, grade: IP66. The quantity is configured according to customer needs.

Main Features

Unique designed air duct effectively controls the noise.

Smooth transitions of wall and ground can eliminate the blind angle.

Differential pressure gauge is equipped to real-time monitor the filters.

Intelligent control mode and alarm system ensure the reliability of running.

Automatic changeable frequency system monitors the air velocity to ensure its stability in the work area.

Uniform flow design of main working area can protects the operators and prevent environmental pollution and cross contamination of products.

Dispensing Booth(Sampling or Weighing Booth) has primary filters, medium efficiency filters and HEPA filters to keep air cleanliness of work area.
