Product Details:
|
|
| Place of Origin: | china |
|---|---|
| Brand Name: | alphaclean |
| Certification: | ce |
| Model Number: | customized |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Polywood packing |
| Delivery Time: | 10 days |
| Payment Terms: | L/C, T/T, Western Union |
|
Detail Information |
|||
| Product Name: | Cleanroom Booth With Hepa Filter | Material: | Alluminum Alloy |
|---|---|---|---|
| Clean Level: | ISO5 - 8 | FFU Nos.: | 100% Covering |
| Wall Material: | Plexiglass,acrylic And Pvc | Type: | Class 100 -10000 Clean Room |
| Wall: | Soft Anti Static PVC Curtain Etc. | ||
| High Light: | Cleanroom Booth 220v,Aluminum Alloy Cleanroom Booth,50hz Cleanroom Booth |
||
Product Description

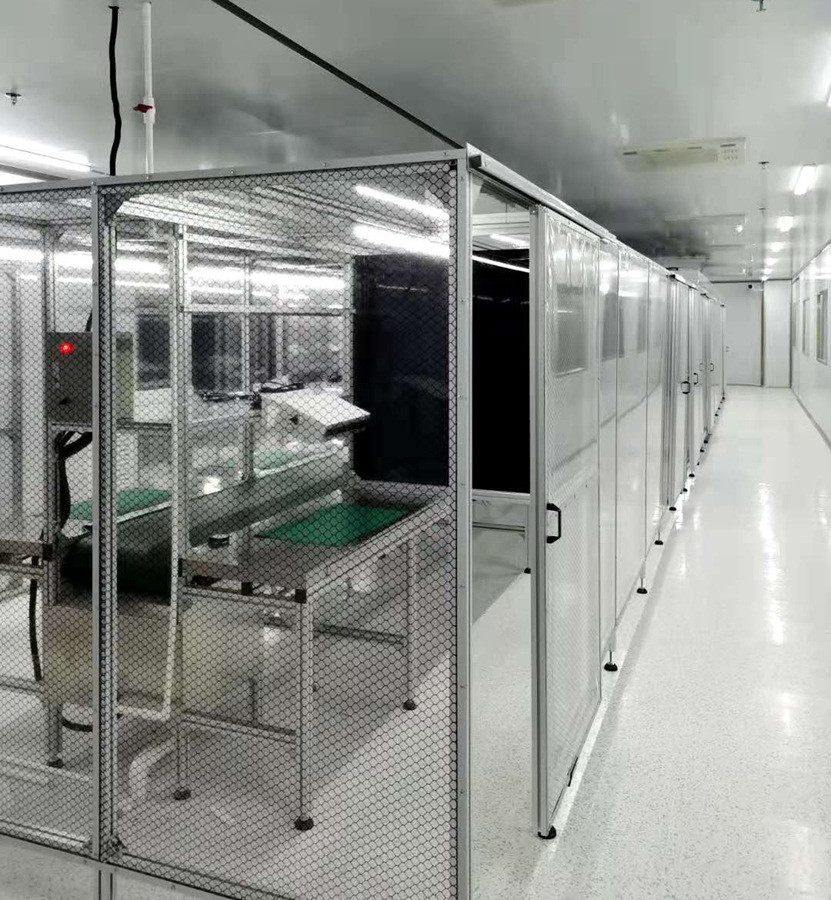

Vertical Flow Class100 Cleanroom Booth For Assembly Line With Opertaion Table
The fans of Clean Booth press the air in HEPA Air Filters with regular wind pressure, after passing through HEPA Air Filters, vertical and unidirectional airflow is well distributed to the work area, which ensures the high cleanlines.
Structure:
The primary structure consists of a square frame, enclosed by glass or curtains, and supported by swivel casters for easy movement. The platform is designed with punched stainless steel plates to aid in dust removal.
This unit is primarily utilized as a partial purification station for assembly lines, specifically for the production of mobile phone films. It has been expertly designed to meet these specific needs.
Additionally, it features a 750 mm high counter, two anti-static soft curtain doors, and is intended to be used in conjunction with assembly line operations.
Features:
The structure is made of stainless steel square tube and industrial aluminum alloy square tube, which provides stability and an attractive appearance, while preventing rust and dust accumulation.
The roof cover is constructed from aluminum-plastic composite panels that are 4 cm thick and designed for easy cleaning.
Inside, special purification lamps are used to maintain cleanliness in the room.
The FFU (fan filter unit) is equipped with a centrifugal fan, which offers long life, low noise, maintenance-free operation, low vibration, and stable performance. The fan is highly reliable and has a working life of over 100,000 hours, with a noise level of only 50 decibels.
| TYPE | SOFTWALL CLEAN BOOTH | HARDWALL CLEAN BOOTH |
| Wall Material | Anti-static soft PVC wall curtain 106~109Ω | Anti-static acrylic 106~109Ω |
| Cleanliness | From Class 100 to Class 10,000 | |
| Frame Material | Coated steel, anodized aluminum, Stainless Steel | |
| FFU | 2'X4' Galvalume in standard size ,110/220v AC 50/60 hz | |
| HEPA Filter | H14 Hepa filter 99.997% 0.3micro | |
| Lighting | Available in LED and T5 | |
| Air condition |
For your requirement, Available in constant temperature air conditioner /constant temperature and humidity conditioner |
|
CLEANLINESS CLASS LEVEL
| ISO Class | Fed 208 | Controls | HEPA filter coverage as % of ceiling | Air velocity at table level in FPM | Air changes rate per hour |
| 1 | - | Stringent | 100 | ||
| 2 | - | Stringent | 100 | 70 - 130 | ＞ 750 |
| 3 | 1 | Stringent | 100 | 70 - 130 | ＞ 750 |
| 4 | 10 | Stringent | 100 | 70 – 110 | 500 - 600 |
| 5 | 100 | Stringent | 100 | 70 - 90 | 150 - 400 |
| 6 | 1,000 | Intermediate | 33-40 | 25 - 40 | 60 - 100 |
| 7 | 10,000 | Intermediate | 10-15 | 10 - 15 | 25 - 40 |
| 8 | 100,000 | Less stringent | 05-10 | 3 - 5 | 10 - 15 |
