Rapid Roll Up Shutter Doors Large Cargo Air Showers For Clean Rooms

Product Details:
Place of Origin: china
Brand Name: alphaclean
Certification: ce
Model Number: customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Polywood packing
Delivery Time: 10 days
Payment Terms: T/T, L/C
Supply Ability: 100sets
  • Detail Information
  • Product Description

Detail Information

Voltage: 380, 220v/ 50, 60hz,single Or 3phase Type: Remote Control
Door: High Speed PVC Roller Door Product Name: Full-automatic Air Shower Tunnel
Application: Cleanroom Entrance For Cargo Forklift ,cart Overal Material: SUS 201/ SUS 304, Sanded Stainless Steel Plate
Nozzels: 96 Pcs Stainless Steel Air Filtration: HEPA Filter 99.995%
High Light:

SUS 201 Air Showers


Rapid Roll Doors Air Showers


220v Air Showers

Product Description

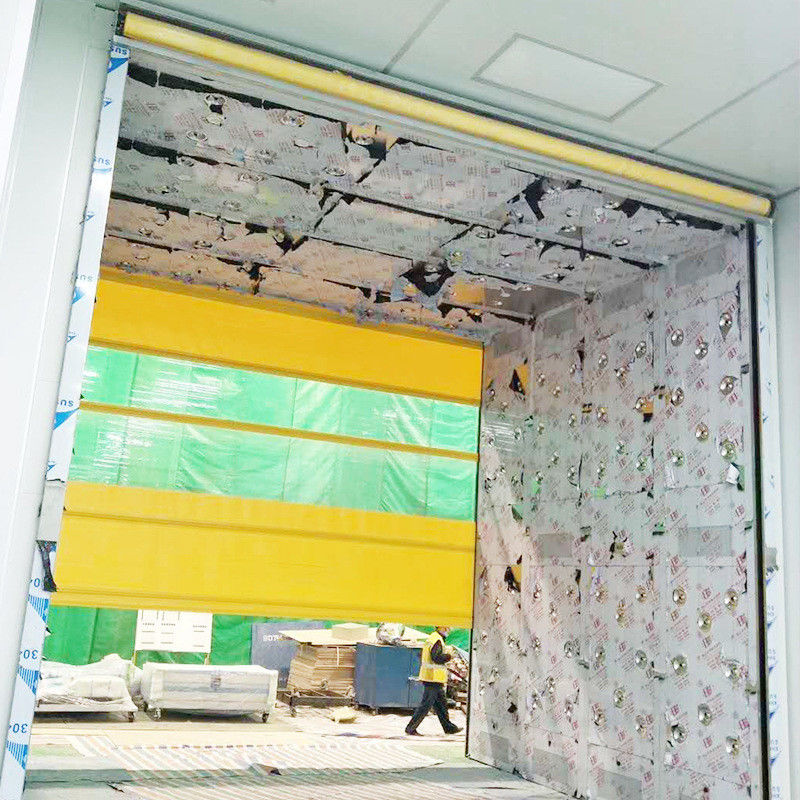

Large Cargo Air Showers For Clean Rooms With Rapid Roll - Up Shutter Doors

  1. Individuals approach the air shower room's outer door from the non-clean area.
  2. Upon entering the induction zone, the door is triggered to open automatically.
  3. Once inside the air shower room, the door will automatically close after a pre-set time period.
  4. The individual passes through an infrared sensor and the air shower fan activates to blow.
  5. After the set duration, the inner door opens, and the individual exits the air shower room.
  6. Upon exiting, the automatic door closes according to a predetermined time and returns to standby mode.

Roller door cargo shower room open mode optional:
1. Wireless remote control
2. Microwave Automatic Induction Switch
3. Non-contact induction switch
The Air Shower is available in full stainless steel construction, stainless steel interior, or powder-coated steel plate.
Patented air shower design technology ensures a tight seal to prevent contamination seepage and reduces the amount of dust particles brought in by personnel.
Features 360-degree air jet nozzles that operate at a speed of over 25 m/s.
Equipped with automatic induction air showering and clear working indication lights for easy operation.
Comes with integrated programming, allowing for easy customization and modification.
Includes a high-speed rolling shutter door that runs faster than 0.6 meters per second, providing fast and barrier-free isolation.


Model HL2300-2 HL2300-3
Overall Size(mm) W2300*D2000*H2280 W2300*D3000*H2280
Internal Size(mm) W1500*D2000*H1980 W1500*D3000*H1980
Number Of Nozzles 24 36
Air Showering Time (S) 10s Factory Setting,10- 99s Adjustable
Material Of Main Body 1.2mm Power Coated Steel, Surface Electrostatic Spraying
Material Of Door SUS 201/ SUS 304 ,Mirror/ Sanded Stainless Steel Plate
HEPA Filter 610*610*69*4pcs,99.99%@0.3um 610*610*69*6pcs,99.99%@0.3um
Fan Power (W) 750*4 750*6
Light Power (W) 20*2 20*3
Voltage Supply 380v 50hz
