SS304 Conveyor Roller 50HZ Clean Room Air Shower Tunnel Goods Pass Through

Product Details:
Place of Origin: china
Brand Name: alphaclean
Certification: ce
Model Number: customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Polywood packing
Delivery Time: 10 days
Payment Terms: T/T, L/C
Supply Ability: 100sets
  • Detail Information
  • Product Description

Detail Information

Voltage: 380, 220v/ 50, 60hz,single Or 3phase Type: Clean Room Channel
Door: Roll Up Door Application: Clean Room Entrance
Function: UV Disinfection Tunnel Name: PLC Pass Through Tunnel
High Light:

50HZ Air Shower Tunnel


220v Air Shower Tunnel


UV disinfection tunnel

Product Description

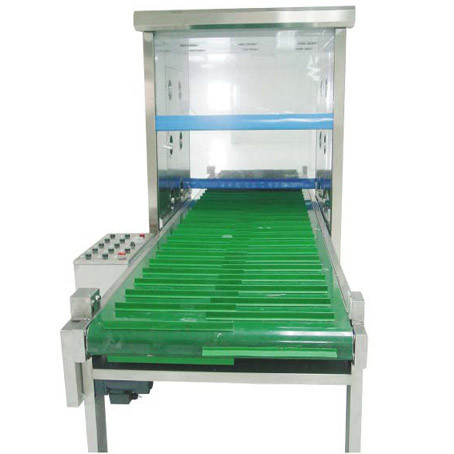

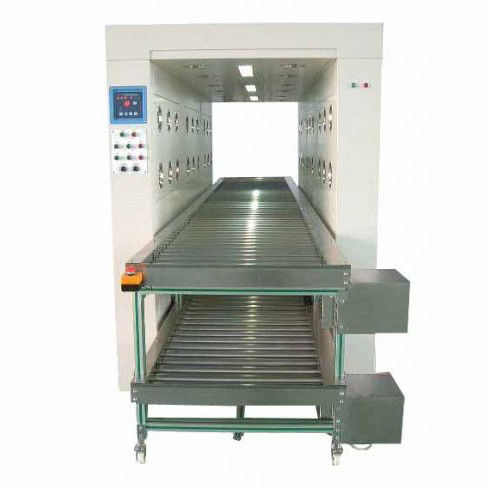

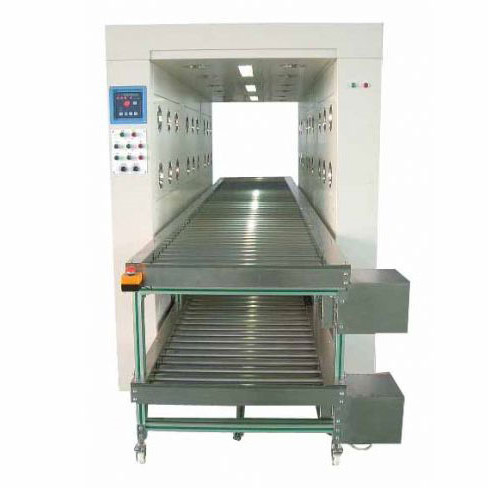

SS304 Conveyor Roller Clean Room Air Shower Tunnel Goods Pass Through


Clean Room Purifying SS304 Goods Air Shower With Roller Conveyor Pass Through Tunnel


Tunnel Conveyor Air Shower


This products family is aimed at dust removal and disinfection processes using UV light, cleanly, quickly and . without wastes. Thanks to the fans in the equipment and the high induction nozzles, dust is removed with great efficiency and collected in the equipment's filters.


The PASS BOX TUNNEL AIR SHOWER is the solution for automatically passing boxes and bags througha continuous tunnel on a roller conveyor. It includes an air shower system for dust removal, functioning with high efficiency EC fans and an interior system of high induction nozzles made of POM. This equipment can be ftted with UV lamps for the simultaneous disinfection of the load.


Applications: Pharmaceutical, veterinary, food, biotechnology and research, areas classifed as per ISO14644, GMP, FDA, BRC, IPS, etc.



Technical Properties


AISI 304 stainless steel finishes as per hygienic standards. Without empty bodies.


Modular construction in one-metre sections for different throughput levels.

Hygienic stainless steel roller conveyor. The conveyors can be disassembled for the easy cleaning of the chamber's interior.

Cycle status indicator light.


Hygienic automatic roll-up doors.

Filtering system using F9 and F7 filters.


Siemens PLC S71200 + 2 HMI TP700.


Exterior emergency shut-down buttons +LOTO.


Air recovery system to reduce the air flow from the clean area to the dirty area.


Product type Straight Through Painted Steel Clean Room Air Shower Tunnel With Stainless Steel 304 Doors
Material for casing T=1.2MM Power coated steel for outside, SS304 for inside
Material for doors Stainless steel 304
Nozzles Stainles steel
Door leaf single leaf
Door type Sliding doors
Blowing way 3-side blowing
Control system English intelligent control panel with human voice
Locks Electric interlocked
HEPA filter efficinecy: 99.99%
Pre filter G3
Light brand
Photoelectric sensor OMRON brand
Shower time 0-99s adustable
Spurt wind speed 25-27m/s above
Power supply 380V/50HZ/3PH
Safeguard Leakage switch and thermal overload relay (Protect people from electric leakage)




Can custom air showers be manufactured?


We offers both standard and custom air showers. Please contact us for more information.


Is it possible to alter the settings on the air shower?


Our air showers allow the operator flexibility to program numerous settings using an easy-to-use touch-screen control panel. You can easily set operationcycle times, entrance/exit delays, when the lights turn off/on, and more.


Testing in factory:


All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment.


Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.


Testing before shipment:

1. Appearance inspection

2. Electrical safety tests

3. Air wind speed testing

4. Function testing




The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual with testing report.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.


Replacement parts:

1. HEPA filter: It should be changed in half or one year once.

2. Pre filter: It should be changed in 3-6 month once.
