Product Details:
|
|
| Place of Origin: | china |
|---|---|
| Brand Name: | alphaclean |
| Certification: | ce |
| Model Number: | customized |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Polywood packing |
| Delivery Time: | 10 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100sets |
|
Detail Information |
|||
| Warranty: | 1 Year | Voltage: | 380, 220v/ 50, 60hz,single Or 3phase |
|---|---|---|---|
| Type: | Clean Room Channel | Door: | Sliding Door |
| Application: | Clean Room Entrance | Power: | 1.5KW |
| High Light: | 1.5KW Air Shower Chamber,380V Air Shower Chamber,1.5KW Air Shower Sanitizing Tunnel |
||
Product Description

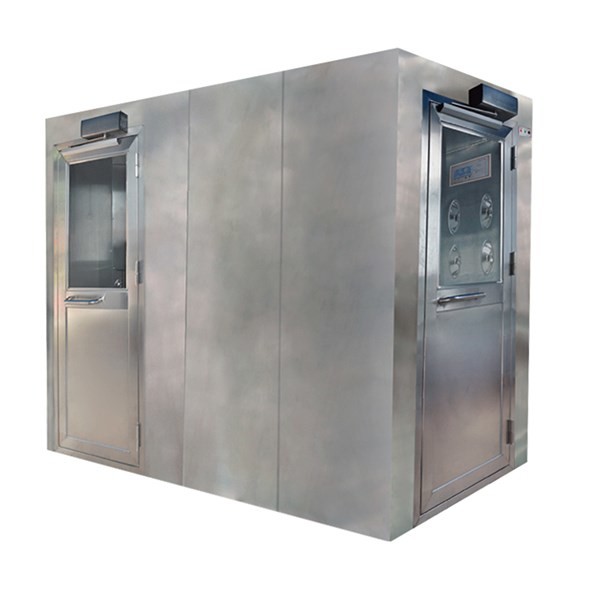

90 Degree L Turn 1.5KW Air Shower Chamber Painted Steel Sanitizing Tunnel
90 Degree L Turn Personnel Clean Room Equipments Air Shower Tunnel With Painted Steel
We offer a wide range of Air Shower which is recommended for superior quality and efficiency.
These products are specially designed to supply concentrated Class 100 air flow.
The contamination sticking to the clothing surface can easily be blown off before a man enters a clean room.
Manufactured with the latest technologies, our air shower is capable of passing the pressurized air through adjustable nozzles at a velocity of 7500 approx. feet per minute.
These nozzles are installed in side walls and ceiling.
Our air shower is a fully automatic system and has the electromagnetic door interlocking system which ensures to open the door one at a time.
Parameter:
| Product type | Straight Through Painted Steel Clean Room Air Shower Tunnel With Stainless Steel 304 Doors |
| Material for casing | T=1.2MM Power coated steel for outside, SS304 for inside |
| Material for doors | Stainless steel 304 |
| Nozzles | Stainles steel |
| Door leaf | single leaf |
| Door type | Sliding doors |
| Blowing way | 3-side blowing |
| Control system | English intelligent control panel with human voice |
| Locks | Electric interlocked |
| HEPA filter efficinecy: | 99.99% |
| Pre filter | G3 |
| Light | brand |
| Photoelectric sensor | OMRON brand |
| Shower time | 0-99s adustable |
| Spurt wind speed | 25-27m/s above |
| Power supply | 380V/50HZ/3PH |
| Safeguard | Leakage switch and thermal overload relay (Protect people from electric leakage) |
FAQ
Can custom air showers be manufactured?
We offers both standard and custom air showers. Please contact us for more information.
Is it possible to alter the settings on the air shower?
Our air showers allow the operator flexibility to program numerous settings using an easy-to-use touch-screen control panel. You can easily set operationcycle times, entrance/exit delays, when the lights turn off/on, and more.
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment.
Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Replacement parts:
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
