Alpha Clean Air Technology Co.,Ltd

3 Sides Auto Blowing 36 Nozzles Air Shower Tunnel PVC Rolling Door

Product Details:
Place of Origin: china
Brand Name: alphaclean
Certification: ce
Model Number: customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Polywood packing
Delivery Time: 10 days
Payment Terms: T/T, L/C
Supply Ability: 100sets
  • Detail Information
  • Product Description

Detail Information

Warranty: 1 Year Voltage: 380, 220v/ 50, 60hz, Single Or 3phase
Type: Remote Control Door: High Speed PVC Roller Door
Dimension(l*w*h): Customized Product Name: Full-automatic Air Shower Tunnel
Application: Cleanroom Entrance For Cargo Forklift ,cart Overal Material: SUS 201/ SUS 304, Sanded Stainless Steel Plate
Nozzels: 96 Pcs Stainless Steel Air Filtration: HEPA Filter 99.995%
High Light:

10s Air Shower Tunnel


10s Air Shower Tunnel


Air Showers And Pass Thrus

Product Description

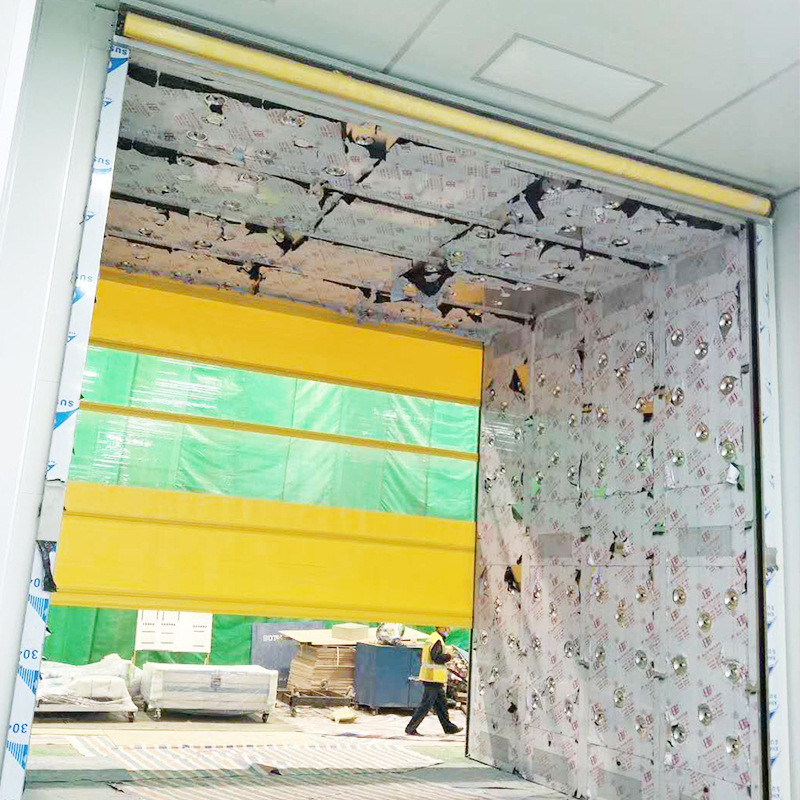

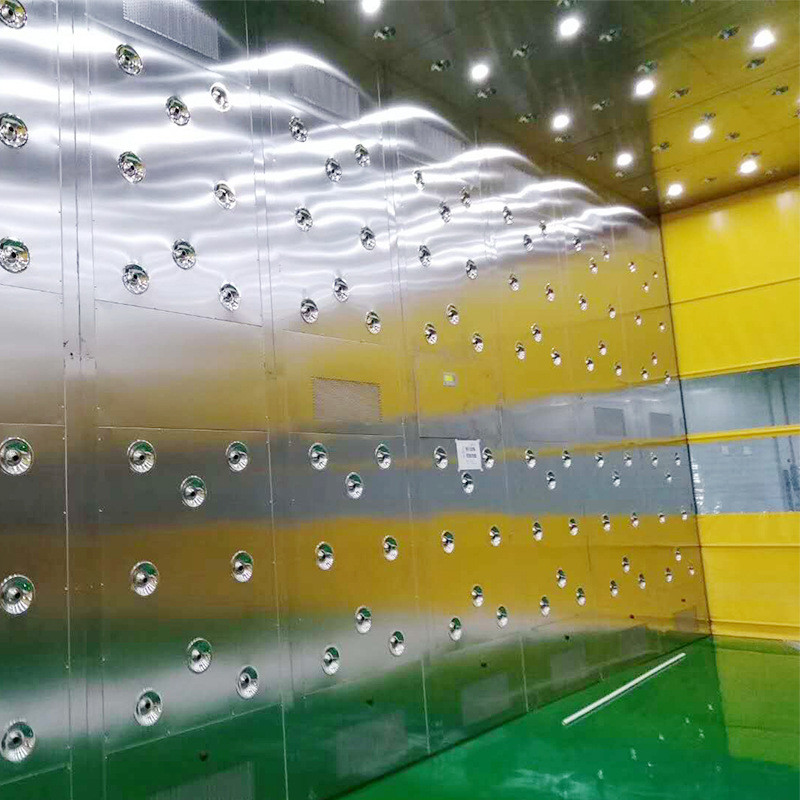

3 Sides Auto Blowing 36 Nozzles Air Shower Tunnel PVC Rolling Door


3 Sides Auto Blowing Automatic Rolling Door Air Shower Clean Room Tunnel


The blowing space is significantly enlarged in the Air shower Tunnel type.

Air Showers are used to remove contaminate off personel and equipment as they enter a clean environment or exit a contaminated environment.

Air showers also create a protective barrier between the clean and contaminated areas.


PVC Fast-rolling door air shower design equipped with advanced infrared sensor automatic door opening system,

Person or goods enter into the infrared sensing area , the entering rolling door automatically open and close,

person or cargo into dust blowing area, once completed, the exit rolling door will automatically open and close,

fast rolling door automatically move up and down during the entire dust blow process.

Automatic rolling door cargo air shower with two doors electronic interlock so also played "gas chamber” effect, to prevent outside contamination and has not been purified air into the clean area.


Roller door cargo shower room open mode optional:

1. Wireless remote control

2. Microwave Automatic Induction Switch

3. Non-contact induction switch



1. Air Shower material : full Stainless Steel, Stainless Steel Interior, and powder coated steel plate

2. patented air shower design technologies that which ensures a clean seal that prevents contaminant seepage,

    it can educe large amounts of  dust particles brought by staff

3. includes 360-degree air jet nozzles that work at more than 25 m/s.

4. with automatic indution air showering type and clear working indication lights for easy operation.

5. Integrated programming: it is easy for programming, modification, and customization.

6. the high speed rolling shutter door that is runs faster than 0.6 meters per second.

    It is a fast lifting and barrier free isolation door.


Model HL2300-2 HL2300-3
Overall Size(mm) W2300*D2000*H2280 W2300*D3000*H2280
Internal Size(mm) W1500*D2000*H1980 W1500*D3000*H1980
Number Of Nozzles 24 36
Air Showering Time (S) 10s Factory Setting,10- 99s Adjustable
Material Of Main Body 1.2mm Power Coated Steel, Surface Electrostatic Spraying
Material Of Door SUS 201/ SUS 304 ,Mirror/ Sanded Stainless Steel Plate
HEPA Filter 610*610*69*4pcs,99.99%@0.3um 610*610*69*6pcs,99.99%@0.3um
Fan Power (W) 750*4 750*6
Light Power (W) 20*2 20*3
Voltage Supply 380v 50hz
