Product Details:
|
|
| Place of Origin: | china |
|---|---|
| Brand Name: | alphaclean |
| Certification: | ce |
| Model Number: | customized |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Polywood packing |
| Delivery Time: | 10 days |
| Payment Terms: | L/C, T/T, Western Union |
|
Detail Information |
|||
| Product Name: | Downflow Clean Booth With Hepa Filter | Material: | Alluminum Alloy |
|---|---|---|---|
| Warranty: | 1 Year | Clean Level: | ISO5 - 8 |
| FFU Nos.: | As Designed | Wall Material: | Plexiglass,acrylic And Pvc |
| Type: | Class 100 -10000 Clean Room | Door: | Soft PVC Curtain Etc. |
| High Light: | FFU Softwall Cleanroom,Mobile Softwall Cleanroom,FFU Mobile Clean Room |
||
Product Description

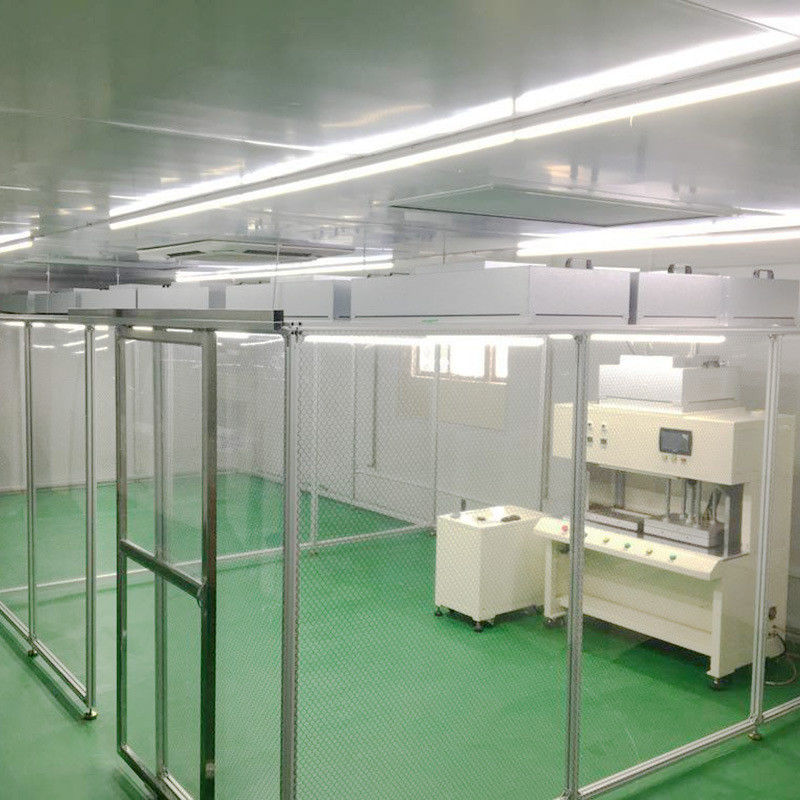

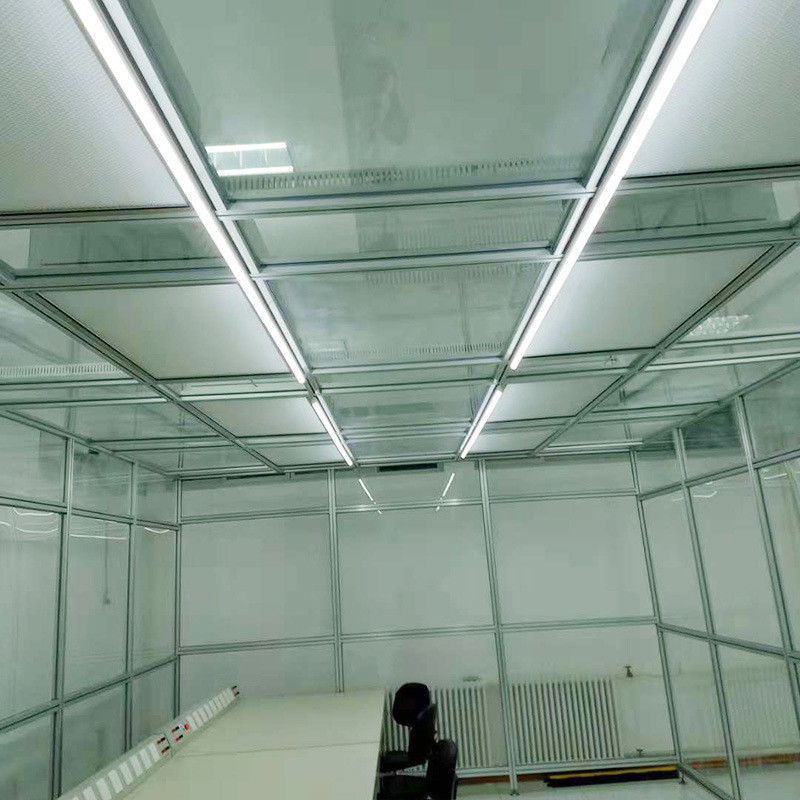

Aluminum Mobile FFU Softwall Cleanroom PVC Anti Static Curtain
Aluminum Profile Mobile Softwall Cleanroom FFU With PVC Anti Static Curtain
We specialize in Class 10 to Class 100,000 (ISO 4 – ISO 8) GMP directional Wheels ISO6 PVC Wall Dehumidifier Modular Cleanbooth
Cleanrooms that are used for some of the following activities: Pharmaceutical Production Cleanrooms, Medical Production Cleanroom, pharmaceutical storage rooms, temperature controlled rooms, bio-safety laboratories, pharmaceutical research laboratories, stem cell research laboratories, server control rooms, organic chemistry laboratories, laser rooms, microbiology laboratories, dry rooms and more.
The fans of Clean Booth press the air in HEPA Air Filters with regular wind pressure, after passing through HEPA Air Filters, vertical and unidirectional airflow is well distributed to the work area, which ensures the high cleanlines.
Features
1. Frame structure, easy for mounting and can be dismounted again.
2. Move easily(rotary wheel available)
3. Modular structure at the top, FFU quantity can be adjustable to improve inside cleanness of the clean booth, and also can be recycled.
4. It is large useful and effective area,while compared with traditional clean room,low investment,high return and stable
5. quick production time and installation in short period
| TYPE | SOFTWALL CLEAN BOOTH | HARDWALL CLEAN BOOTH |
| Wall Material | Anti-static soft PVC wall curtain 106~109Ω | Anti-static acrylic 106~109Ω |
| Cleanliness | From Class 100 to Class 10,000 | |
| Frame Material | Coated steel, anodized aluminum, Stainless Steel | |
| FFU | 2'X4' Galvalume in standard size ,110/220v AC 50/60 hz | |
| HEPA Filter | H14 Hepa filter 99.997% 0.3micro | |
| Lighting | Available in LED and T5 | |
| Air condition |
For your requirement, Available in constant temperature air conditioner /constant temperature and humidity conditioner |
|
CLEANLINESS CLASS LEVEL
| ISO Class | Fed 208 | Controls | HEPA filter coverage as % of ceiling | Air velocity at table level in FPM | Air changes rate per hour |
| 1 | - | Stringent | 100 | ||
| 2 | - | Stringent | 100 | 70 - 130 | ＞ 750 |
| 3 | 1 | Stringent | 100 | 70 - 130 | ＞ 750 |
| 4 | 10 | Stringent | 100 | 70 – 110 | 500 - 600 |
| 5 | 100 | Stringent | 100 | 70 - 90 | 150 - 400 |
| 6 | 1,000 | Intermediate | 33-40 | 25 - 40 | 60 - 100 |
| 7 | 10,000 | Intermediate | 10-15 | 10 - 15 | 25 - 40 |
| 8 | 100,000 | Less stringent | 05-10 | 3 - 5 | 10 - 15 |
