Stainless Steel Sampling Dispensing GMP Cleanroom Booth In Pharma

Product Description

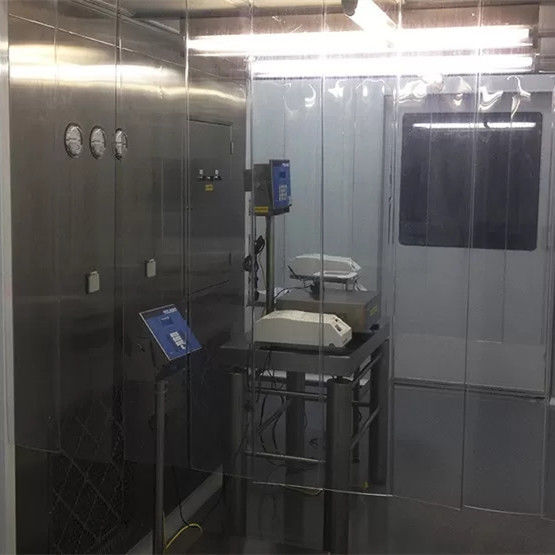

Stainless Steel Sampling Dispensing GMP Cleanroom Booth In Pharma

GMP Stainless Steel Sampling Dispensing Booth

Weighing booth is a kind of local clean equipment specially used in places such as pharmacy, microbiological research and scientific experiment. It provides a vertical one-way air flow. Some clean air is circulated in the work area and some air is discharged to the nearby area. Negative pressure prevents cross-contamination and is used to ensure a high cleanliness environment in the work area.

Dust / reagent weighing, and packaging in the weighting booth which can control dust, reagent spillage, rise, prevent dust, reagents from entering the human body, and still avoid dust and reagent cross-contamination, and protect the external environment and the safety of indoor personnel.

The weighing operation area is protected by Class 100 vertical laminar flow ISO7 (NF, EN, ISO14644-1)

Structure

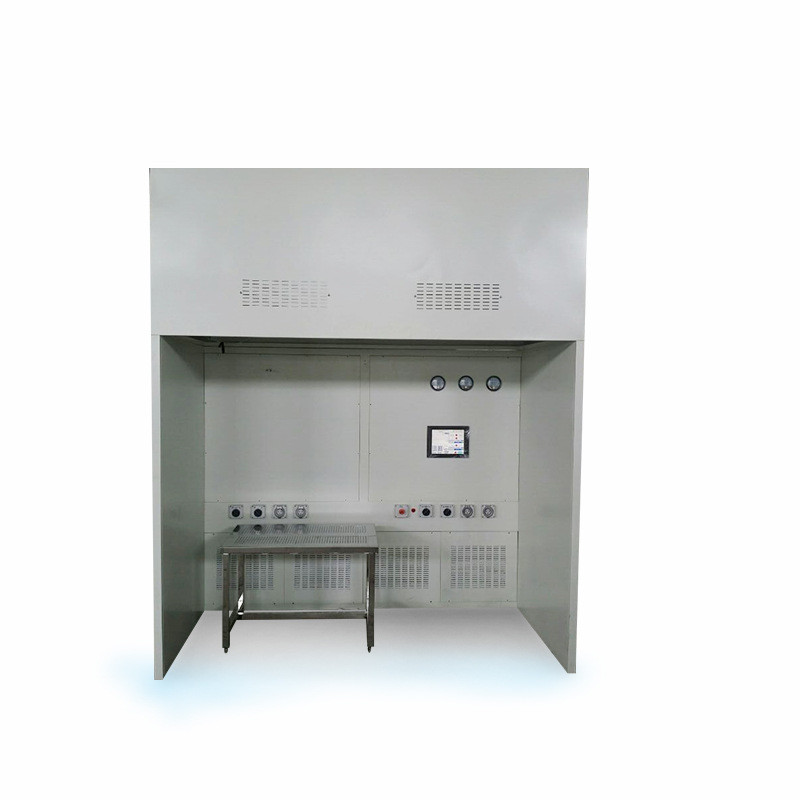

This equipment is assembled by the working area, the return air box, the fan box, the air supply box and the outer casing.

The control panel is located on the front of the internal working area of ​​the equipment. The control panel adopts the inverter control system, which can control the start and stop of the fan, adjust the frequency of the fan, and adjust the wind speed required in the work area (when the equipment is installed and used, the frequency must be adjusted by a dedicated person).

There are two differential pressure sensors below it to test the resistance of the high-efficiency HEPA filter (when the pressure exceeds 1.5 times the initial pressure, which is greater than 280Pa, please replace the high-efficiency HEPA filter).

There are 4 sockets on the lower side of the control panel, 220V, 10A sockets are used for temporary power supply for weighing equipment.

The return air area is equipped with pre and medium-efficiency filters to ensure the cleanliness of the return air. There is a fan part on the upper part, and a high-efficiency filter is arranged at the air outlet of the fan to ensure the cleanliness of the air supply.

There is also an exhaust air regulating plate inside the air supply box body, which can adjust the exhaust air volume of the equipment within a reasonable range (after the equipment is installed in place, it should be tested by professionals and do not adjust without authorization). Equipped with a flow film on the wind surface, the clean air flow through the flow film and the air supply panel will become uniform and straight, which ensures the cleanliness of the working area and also makes the working area negative pressure.

The lighting lamp is located on the top surface of the equipment and adopts the purification lighting lamp for clean room.
