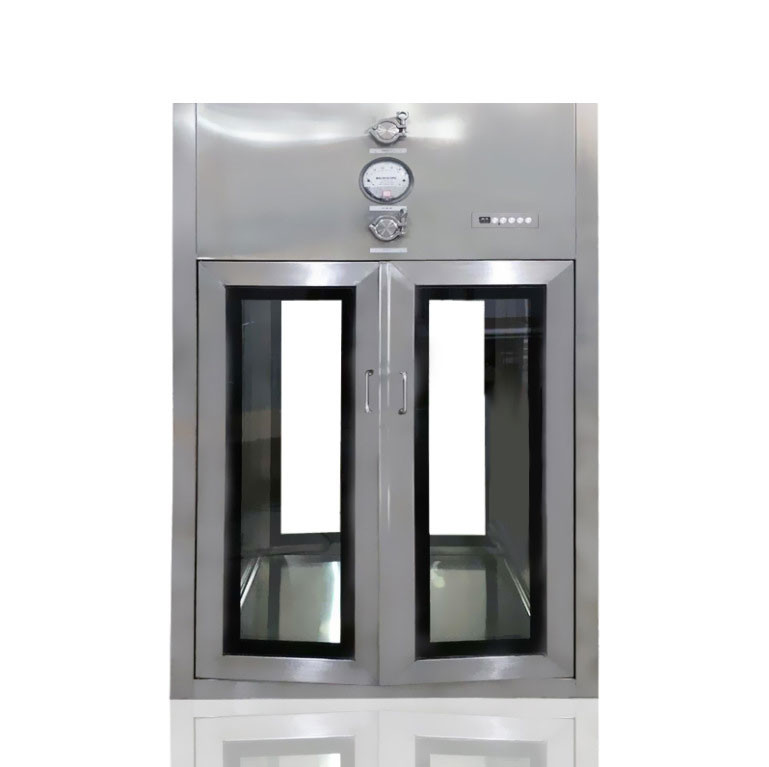

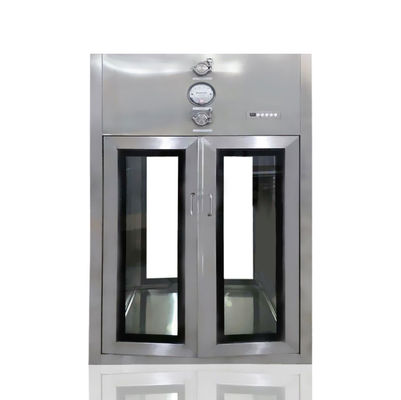

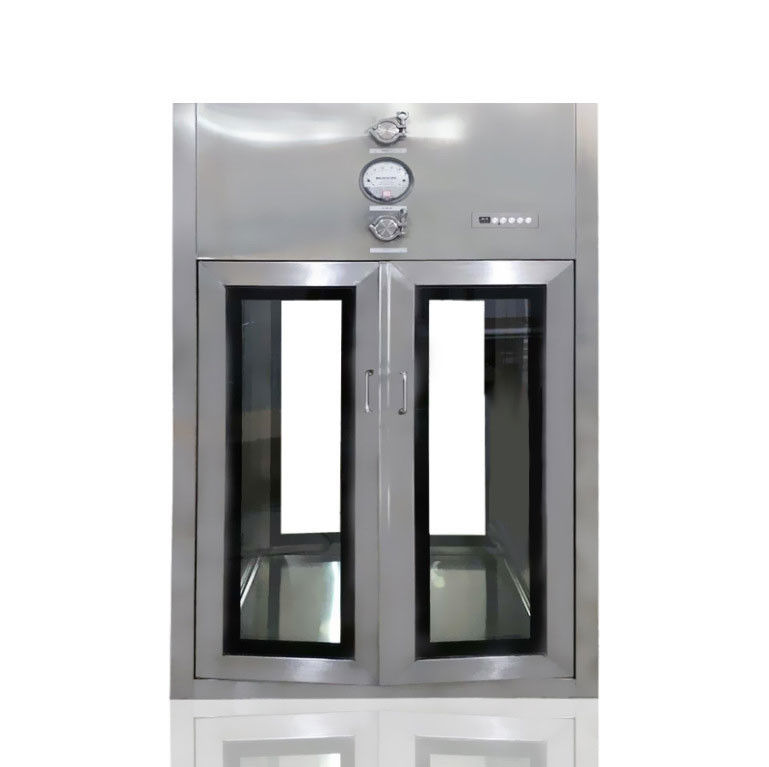

Class 100 HEPA Filter H14 Cleanroom Pass Boxes With Pressure Gauge

Product Description

Class 100 HEPA Filter H14 Cleanroom Pass Boxes With Pressure Gauge

Stainless Steel Class 100 Laminar Flow Dynamic HEPA Filter Pass Box With Pressure Gauge

1. Cleanliness in the laminar flow pass box: Class A;

2. The inner and outer double-layer shells are treated with circular arc inside to ensure seamless connection;

3. Using laminar flow design, the airflow direction adopts the upper-feed-down mode, and the bottom adopts the 304 stainless steel cold-rolled plate punching design, and with the reinforcing rib support;

4. Filter: PRE filter G4, and HEPA Filter H14;

5. Wind speed: 0.36-0.54m/s (tested at 150mm under the high-efficiency airflow equalizer board);

6. Differential pressure function: display filter pressure difference (range high efficiency 0-500Pa / medium efficiency 0-250Pa), accuracy ± 5Pa;

7. Control function: fan start/stop button, configure built-in electronic door interlock; set UV lamp, design separate switch;

8. Set the inspection port at the lower part of the pass box for maintenance of the fan;

9. Noise: <65db;

10. high efficiency airflow equalizer board: 304 stainless steel mesh board.

Pass Box is general auxiliary equipment for cleanroom,mainly in the usage of clean between clean zone or the unclean and clean areas small items transmission, in order to reduce clean room door’s opening times, minimize the pollution

Air shower pass box have dual function as a gate and lock, passed Items must be air showed after enter cleanroom, so it can be effectively prevent passed item be carried dust or bacteria into the clean room.

Basic performance:
1. The inner and outer double-layer shells are treated with circular arc inside to ensure seamless connection;
2. Control function: UV lamp, designed separate switch;
3. Double door interlocking to effectively prevent cross contamination;
4. Can be paired with a intercom;
5. High sealing performance;
