Lab Low Vibration Sterile VHP Cleanroom Pass Boxes With Testing Port

Product Details:
Place of Origin: china
Brand Name: alphaclean
Certification: ce
Model Number: customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Polywood packing
Delivery Time: 10 days
Payment Terms: L/C, T/T
Supply Ability: 1000sets
  • Detail Information
  • Product Description

Detail Information

Function: Clean Room Transfer Interlock: Electrical
Type: Stainless Steel Internal Size: 600x600x600
UV LIGHT: As Request Filter: Hepa Filter And Pre Filter
Application: Chemical Lab
High Light:

VHP Cleanroom Pass Boxes


600mm Cleanroom Pass Boxes


VHP Pass Box

Product Description

Lab Low Vibration Sterile VHP Cleanroom Pass Boxes With Testing Port


Sterilize Pass Box VHP Pass Box With Testing Port


1. Cleanliness in the laminar flow pass box: Class A;

    Embedded ultraviolet germicidal lamp on top

2. The internal circular plate chamfering processing, no dead angle

3. Using laminar flow design, the airflow direction adopts the upper-feed-down mode, and the bottom adopts the 304 stainless steel cold-rolled plate punching design, and with the reinforcing rib support;

4. Filter: PRE filter G4, and HEPA Filter H14;

5. Wind speed: 0.36-0.54m/s (tested at 150mm under the high-efficiency airflow equalizer board);

6. Differential pressure function: display filter pressure difference (range high efficiency 0-500Pa / medium efficiency 0-250Pa), accuracy ± 5Pa;

7. Control function: fan start/stop button, configure built-in electronic door interlock; set UV lamp, design separate switch;

8. Set the inspection port at the lower part of the pass box for maintenance of the fan;

9. Noise: <65db;

10. high efficiency airflow equalizer board: 304 stainless steel mesh board.

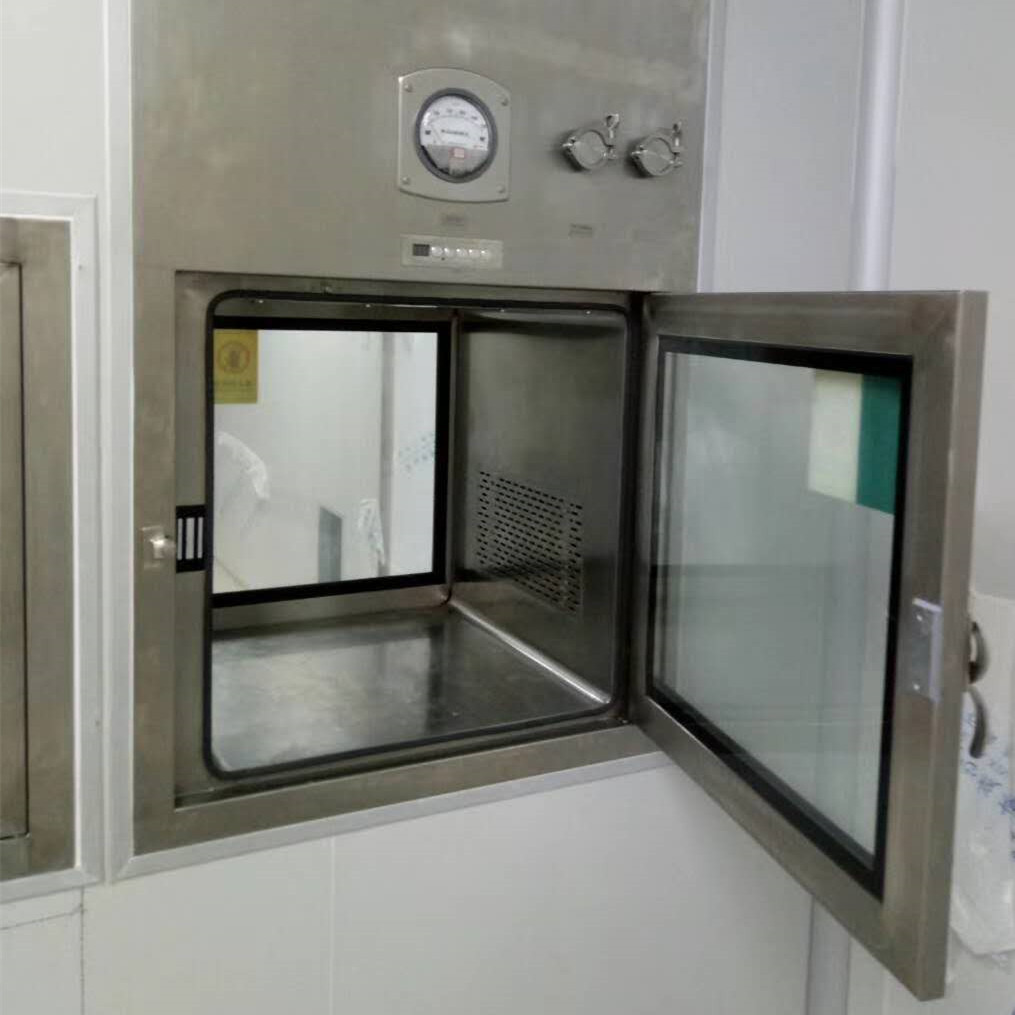

Lab Low Vibration Sterile VHP Cleanroom Pass Boxes With Testing Port 0

    Description :


     1. pressure gauge                       2. control panel


     3. 2layers tempered glass door  4.S.S handle
     5. DOP test port                          6. centrifugal fan
     7. PAO injection hole                  8.gel sealed HEPA filter
     9. UV lamp                                 10.air outlet plate





ACAT-CLCDC400 600x470x1000 400x400x400 230x180x90 0.45±20% A 65 Manual adjust
ACAT-CLCDC500 700x570x1100 500x500x500 330x280x90 0.3
ACAT-CLCDC600 800x670x1200 600x600x600 430x380x90 0.4
ACAT-CLCDC800 1000x870x1400 800x800x800 630x580x90 0.6


Constitute the materials

Outer frame : cold rolled steel or stainless steel

innernal:stainless steel

Filter: pre filter and HEPA filter 99.99% 0.3 micro

Fan: low vibration, low noise, imported or domestical fans

air showering time: 10s (factory setting value, can be set from 10 - 99 s )

Subsidiary parts: Intercom, Ultraviolet sterilization lamp

Optional: Alternative frame materials and size available on request.
