Dynamic Laboratory GMP 300Lx Stainless Steel Pass Through Window

Product Details:
Place of Origin: china
Brand Name: alphaclean
Certification: ce
Model Number: customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Polywood packing
Delivery Time: 10 days
Payment Terms: L/C, T/T
Supply Ability: 1000sets
  • Detail Information
  • Product Description

Detail Information

Function: Clean Room Transfer Interlock: Electromagnetic Interlock
Type: Cold Rolled Steel Coated White Internal Size: 600x600x600
UV LIGHT: As Request Illumination: ≥ 300Lx
Filter: HEPA Filter Gurantee: 1 Year
High Light:

300Lx Stainless Steel Pass Through Window


GMP Stainless Steel Pass Through Window


300 Lx Laboratory Pass Through Window

Product Description

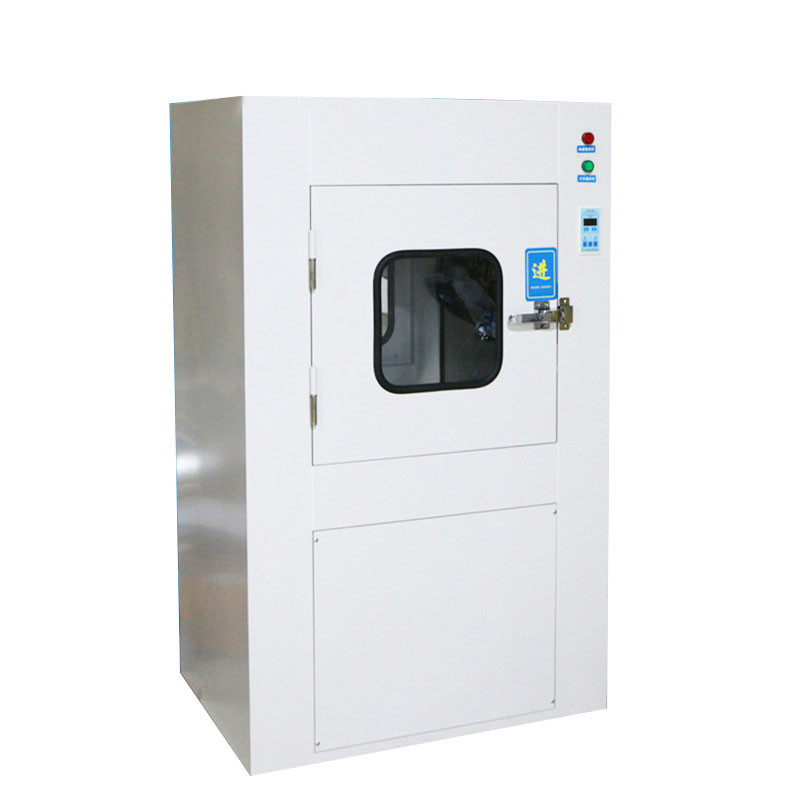

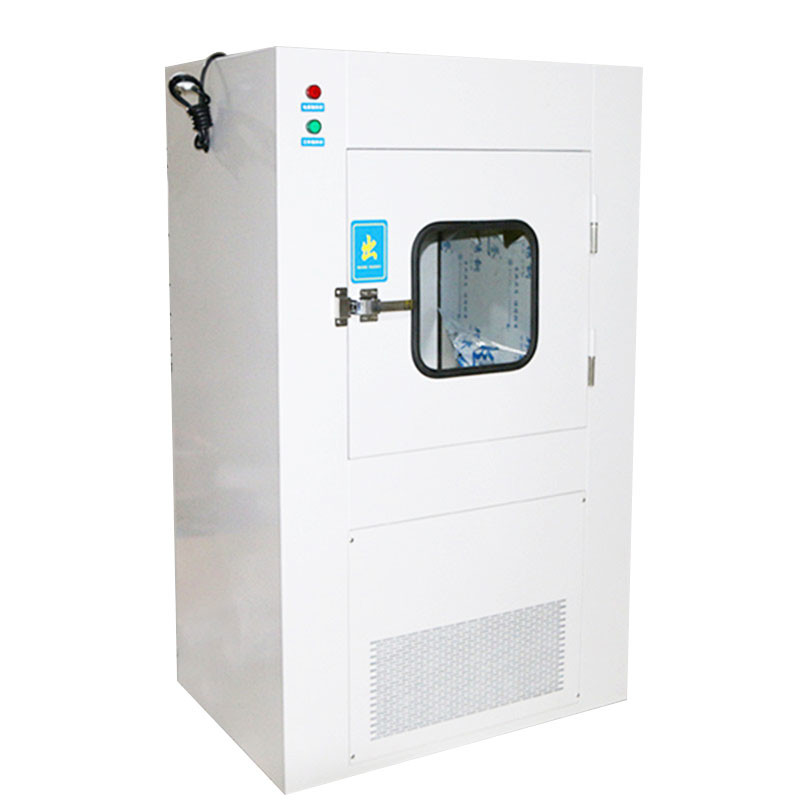

Dynamic Laboratory GMP 300Lx Stainless Steel Pass Through Window


Automatic Door Lift Air Shower Pass Box For Sterile Items Delivery


Pass Box is general auxiliary equipment for cleanroom,mainly in the usage of clean between clean zone or the unclean and clean areas small items transmission, in order to reduce clean room door’s opening times, minimize the pollution


Air shower pass box have dual function as a gate and lock, passed Items must be air showed after enter cleanroom, so it can be effectively prevent passed item be carried dust or bacteria into the clean room.


Constitute the materials

Outer frame : cold rolled steel or stainless steel

innernal:stainless steel

Filter: pre filter and HEPA filter 99.99%0.3 micro

Fan: low vibration, low noise, imported or domestical fans

air showering time: 10s(factory setting value, can be set from 10 - 99 s )

Subsidiary parts: Intercom, Ultraviolet sterilization lamp

Optional: Alternative frame materials and size available on request.


Specification spb-C1 spb-C2
(L×W×H)mm overall dimension 950×680×1550 1120×840×1680
(L×W×H)mm Internal dimensions 600×600×600 800×800×800
Nozzle number and air flow 4,18~22 m/s 5,18~22 m/s
Power supply 380V,50HZ,0.75KW 380V,50HZ,1.1KW


Dynamic Laboratory GMP 300Lx Stainless Steel Pass Through Window 0
