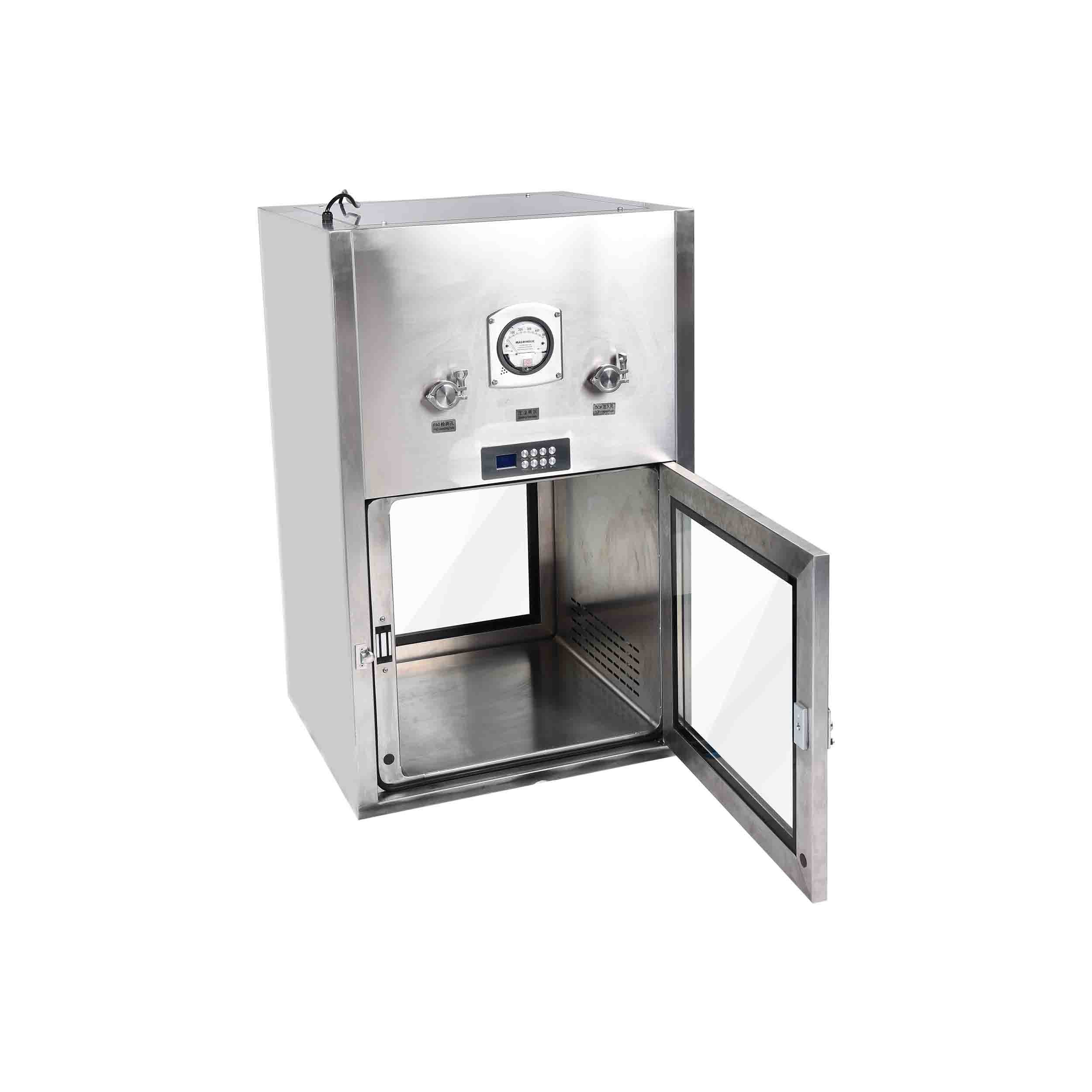

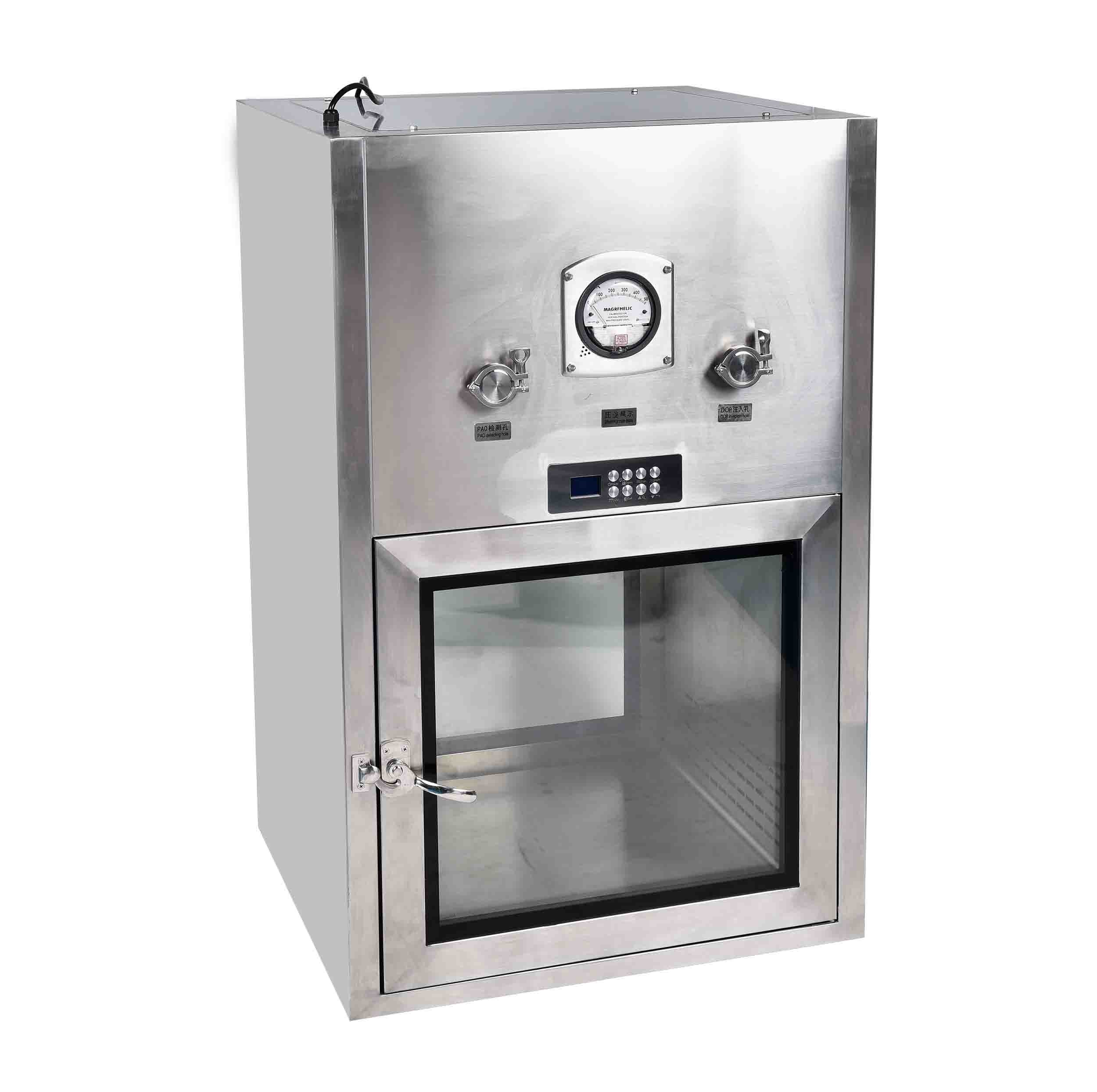

Laminar Flow Dynamic Stainless Steel Cleanroom Pass Boxes HEPA Filter

Product Description

Laminar Flow Dynamic Stainless Steel Cleanroom Pass Boxes HEPA Filter

Stainless Steel Laminar Flow Dynamic HEPA Filter Pass Box

1. Cleanliness in the laminar flow pass box: Class A;

2. The inner and outer double-layer shells are treated with circular arc inside to ensure seamless connection;

3. Using laminar flow design, the airflow direction adopts the upper-feed-down mode, and the bottom adopts the 304 stainless steel cold-rolled plate punching design, and with the reinforcing rib support;

4. Filter: PRE filter G4, and HEPA Filter H14;

5. Wind speed: 0.36-0.54m/s (tested at 150mm under the high-efficiency airflow equalizer board);

6. Differential pressure function: display filter pressure difference (range high efficiency 0-500Pa / medium efficiency 0-250Pa), accuracy ± 5Pa;

7. Control function: fan start/stop button, configure built-in electronic door interlock; set UV lamp, design separate switch;

8. Set the inspection port at the lower part of the pass box for maintenance of the fan;

9. Noise: <65db;

10. high efficiency airflow equalizer board: 304 stainless steel mesh board.

Basic performance:
1. The inner and outer double-layer shells are treated with circular arc inside to ensure seamless connection;
2. Control function: UV lamp, designed separate switch;
3. Double door interlocking to effectively prevent cross contamination;
4. Can be paired with a intercom;
5. High sealing performance;
