Product Details:
|
|
| Place of Origin: | china |
|---|---|
| Brand Name: | alphaclean |
| Certification: | ce |
| Model Number: | ISO clean room |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Polywood packing |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T, Western Union |
|
Detail Information |
|||
| Clean Room Level: | ISO 5 - 8 | Type: | Downflow Laminar Flow |
|---|---|---|---|
| Application: | Pharma,electronics,lab ,food, Hospital | Scope: | Struture , HVAC , Electricity / Monitoring |
| FFU Numbers: | All Covering For The Ceiling | Service: | Commissioning And Training,engineer Are Able To Service Machinery Overseas |
| Document: | Verification And Certification | Filter: | HEPA Filter |
| Efficiency: | 99.99% 0.3um H14 | Name: | ISO Clean Rooms |
| High Light: | 0.3 Um Dust Free Clean Room,Class 100 Dust Free Clean Room,Elevated Flooring ISO Clean Rooms |
||
Product Description

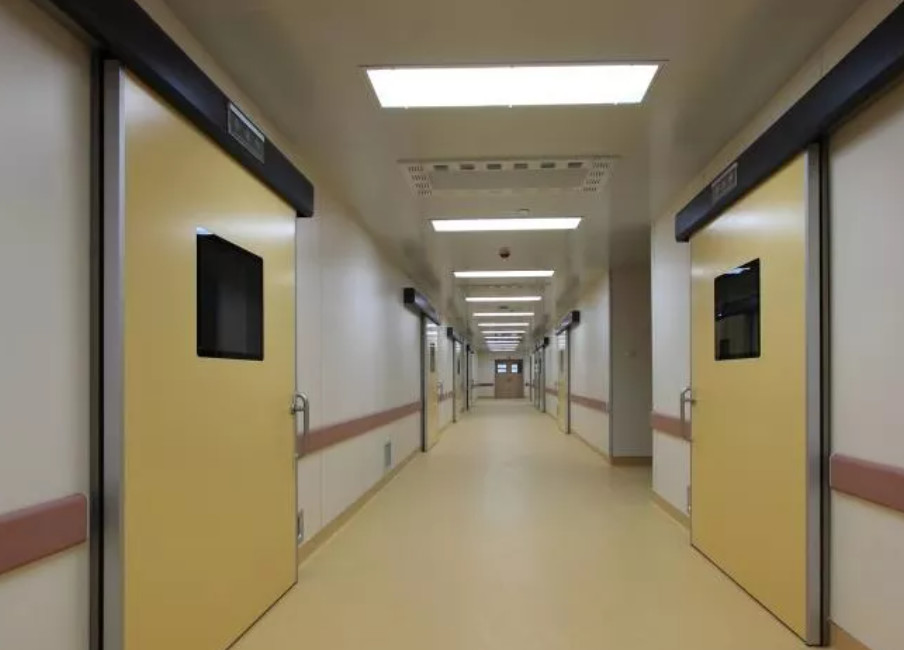

Class 100 0.3 Um Micro Dust Free Clean Room With Elevated Flooring
Cleanliness Standards Level Comparison
USA Federal FS209E and ISO 14644
| ISO14644-1 | FED STD 209E | CLASS | Number of Particles Per Cubic Meter by Micrometer Size | ||||||
| ISO Class | English | Metric | 0.1um | 0.2um | 0.3um | 0.5um | 0.5um | 5um | |
| m3 | m3 | m3 | ft3 | m3 | |||||
| 1 | ISO1 | 10 | 2 | ||||||
| 2 | ISO2 | 100 | 26 | 10 | 4 | ||||
| 3 | 1 | M1.5 | 1SO3 | 1,000 | 265 | 106 | 35 | ||
| 4 | 10 | M2.5 | ISO4 | 10,000 | 2,650 | 1,060 | 10 | 353 | |
| 5(百级) | 100 | M3.5 | ISO5 | 100,000 | 26,500 | 10,600 | 100 | 3,530 | 29 |
| 6(千级) | 1,000 | M4.5 | ISO6 | 1,000,000 | 265,000 | 106,000 | 1000 | 35,300 | 293 |
| 7(万级) | 10,000 | M5.5 | ISO7 | 10000 | 353,000 | 2,930 | |||
| 8(十万级) | 100,000 | M6.5 | ISO8 | 100000 | 3,530,000 | 29,300 | |||
| 9 | ISO9 | 1000000 | 35,300,000 | 293,000 | |||||
The dust-free workshop project is mainly composed of the following systems: air filtration system, environmental monitoring system, fire alarm system, people flow system, process piping system, power system, lighting system, maintenance structure and electrostatic ground treatment systems. The air-conditioning purification system project includes the entire equipment, equipment matching and construction installation.
Feature of ISO Clean Room
CLEAN ROOM PACKAGE SOLUTIONS
♦ FREE DESIGN
♦ FACTORY PRICE
♦ EASY INSTALLATION
♦ VIDEO TESTING FOR YOUR ORDERS
♦ TIMELY AFTER-SALES SERVICE
♥ WELCOME TO CONTACT US TO GET BEST SOLUTIONS FOR YOUR CLEAN ROOM.
ISO Clean Room is a kind of air clean equipment. It has the feature of high cleanliness, new structure, responsible running, low consumption noise and easy maintenance etc. So it has the extensive applications for electronic, mechanical,medicine, food and biological engineering industries.
constructed in accordance with requirements of Good Manufacturing Practice (GMP).Apart from regular installation techniques,the cleanliness,sanitation,disinfection and beauty of the construction environment are also taken into account in installation.Every construction process in conformity with certification requirements of GMP ensures the business owner to obtain GMP certification successfully.
