Product Details:
|
|
| Place of Origin: | guang dong,China |
|---|---|
| Brand Name: | alphaclean |
| Certification: | CE |
| Model Number: | OT010R01Q |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1set |
| Price: | 40-70 USD per square meter |
| Packaging Details: | Standard export packing |
| Payment Terms: | L/C, T/T, Western Union, D/A, D/P |
|
Detail Information |
|||
| Parts: | Wall Panel, Air Tight Door,laminar Flow, | Application: | Hospital,ICU |
|---|---|---|---|
| Advantage: | Modular, Quick Assembly, Movable, Dust-proof | Service: | Free Operating Training |
| Class Level: | Class 100~10000 | Instrument Classfication: | Class II |
| HEPA Filter: | H13 H14 99.99% 99.997%@0.3 Micro | ||
| High Light: | Dust Proof ISO Clean Rooms,Hospital ICU ISO Clean Rooms,H13 Dust Free Clean Room |
||
Product Description

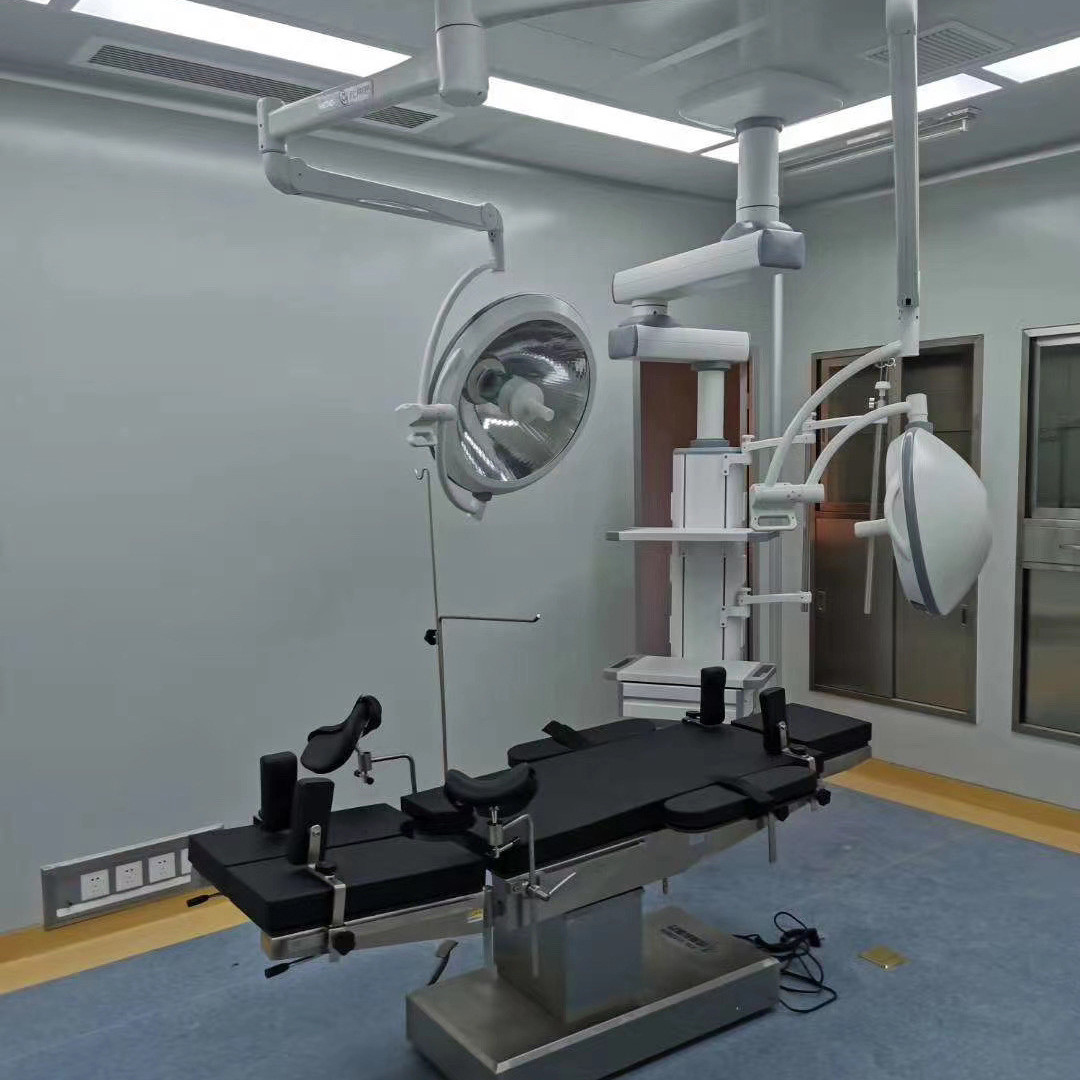

Dust-Proof ISO Clean Rooms Class II For Hospital ICU
Description of ISO Clean Room
ISO Clean Room is a kind of air clean equipment. It has the feature of high cleanliness, new structure, responsible running, low consumption noise and easy maintenance etc. So it has the extensive applications for electronic, mechanical,medicine, food and biological engineering industries.
constructed in accordance with requirements of Good Manufacturing Practice (GMP).Apart from regular installation techniques,the cleanliness,sanitation,disinfection and beauty of the construction environment are also taken into account in installation.Every construction process in conformity with certification requirements of GMP ensures the business owner to obtain GMP certification successfully.
We provide all process from design, manufacturing, installation to after-sales service.
Our design scope
1. Structure: Wall Panel, Ceiling filtering system, Windows, Doors, Various Fittings, Flooring
2. HVAC: AHU, Ducting, Piping, Chiller, dehumidifier, etc.
3. Electric: Lighting, Switch, Cables, Wires, Power Distribution Cabinet, etc
4. Auto-control: PLC Controller, Sensors for Humidity and Temperature, Control Panel
5. Medical Gas System: Medical gas terminal, medical gas pipeline
Basic Devices for whole set OT and ICU room as below:
| Name | Qty | Specification and parameter |
| Built-in device cabinet | 1 set | Each room is provided with 1 set made of L304 stainless steel materials, 900×1700×350, opened by four doors, with the upper and lower layers provided with high strength glass trailers, on which sufficient surgical equipment can be placed. The cabinets are made of 1.2mm frosted stainless steel plates, and the colors of cabinet doors are similar or the same with the main colors of the operating room, with aluminum alloy or stainless steel used for edge wrapping around, and they can be locked. |
| Built-in anesthetic cabinet | 1 set | Each room is provided one set, with other requirements the same as above. |
| Built-in drug cabinet | 1 set | Each room is provided one set, with other requirements the same as above. |
| View boxes (Film Viewer) | 1 set | Built-in; 100-class operating room is provided with six couplet view boxes, and other operating rooms are provided with quadruple view boxes. 4 pieces of flexible shifting masking can achieve film reading without glare; and the exterior panels are made of scratch resistant toughened glass, with interior layers made of advanced optical acrylic plates; and the panels are designed without screws, which are elegant and aesthetic, with the housing subject to powder spraying treatment capable of resisting corrosion by sterilizing agents. |
| Built-in writing table | 1 set | Each operating room is provided with one, made of L304-1.2mmstainless steel material, with lighting and convenience in maintenance and replacement. |
| Heat insulation cabinet | / | Preferably 1 set |
| Multifunctional information control box | 1 set | The operating room is provided with six control panels. The major functions include clock, double timer clock, control screen(common ceiling mounted lighting system switches and electric equipment control switches), telephone functions, air-conditioning system (temperature and humidity control), call and other control. |
| Infusion ducts | 1 set | Each room is provided with 1 set, and each set contains 2 stainless steel rings. |
| Combined power socket box | 3 groups | There are three 220V 15A power sockets for each group, with bottom boxes and covers; and 1 grounding terminal. |
| Combined power socket box | 1 group | Each group is provided with one 3-phase 380V 20A power socket, two 220V 15A power sockets, with bottom boxes and covers; and 1 grounding terminal. |
| Air supply ceiling (laminar hoods) | 1 set | 1) The box is the double layer structure, with the inner layer made of stainless steel plates or attached with PVC film steel plates, and outer layer made of color steel plates, and with the interior filled with Level B1 XPS plates, and high strength aluminum alloy frames to ensure that the boxes have considerable ability to resist pressure, with heat insulation performance and resistance to corrosion; 2) High efficiency side cloth to ensure considerable static pressure volume; 3) Double-layer current equalizers are used to ensure uniform air supply; 4) The middle part is provided with medium-speed air flow compensation devices used to set off the impact of a rise in air flow out of heat from equipment and personnel on the Cleaning result. |
| Anchor bolts for shadowless lamps | / | 1 set/room |
| Tower crane anchor bolts | / | 1 set/room |
Feature of ISO Clean Room
CLEAN ROOM PACKAGE SOLUTIONS
♦ FREE DESIGN
♦ FACTORY PRICE
♦ EASY INSTALLATION
♦ VIDEO TESTING FOR YOUR ORDERS
♦ TIMELY AFTER-SALES SERVICE
♥ WELCOME TO CONTACT US TO GET BEST SOLUTIONS FOR YOUR CLEAN ROOM.
