Alpha Clean Air Technology Co.,Ltd

Automatic Roller Brush Sole Cleaning Machine SUS Stainless Steel For Shoes

Product Details:
Place of Origin: China
Brand Name: alphaclean
Certification: CE
Model Number: RW 13,RW 18,RW 28
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Standard export packing
Payment Terms: L/C, T/T
Supply Ability: 1000 Piece/Pieces
  • Detail Information
  • Product Description

Detail Information

Material: SUS Stainless Steel Brush Type: Roller Brush
Application: Clean Room,clean Area Enterprise Of Semiconductor IT,HACCP,Phamaceutical,cosmetics,lab Use: Sterilizing,disinfecting
Name: Sole Cleaning System Machine Core Components: PLC,Engine
Warranty: 1 Year Dimension: 1838*768*140mm
High Light:

PLC Sole Cleaning Machine

,

SUS Stainless Steel Sole Cleaning Machine

,

PLC Shoe Sole Cleaner Machine

Product Description

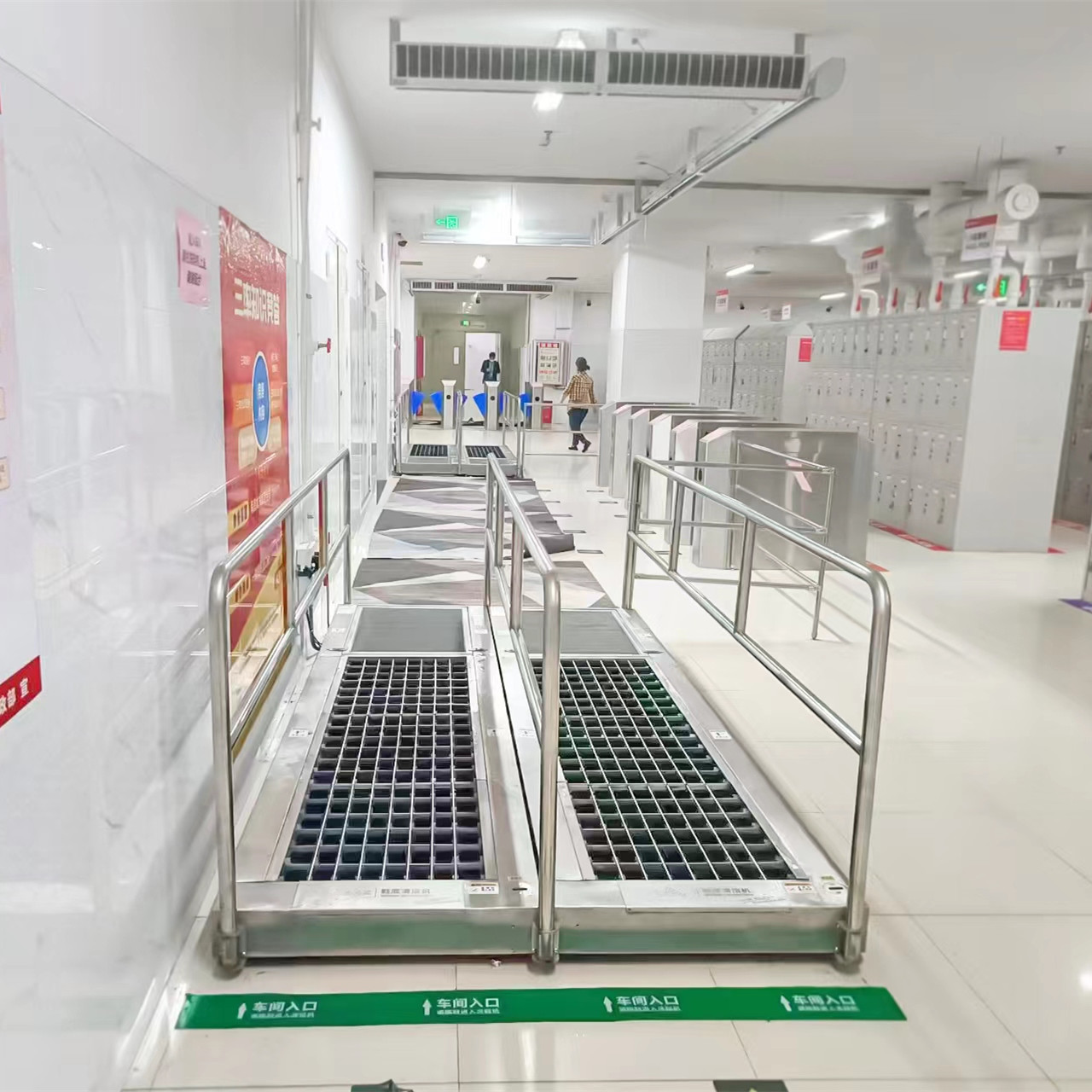

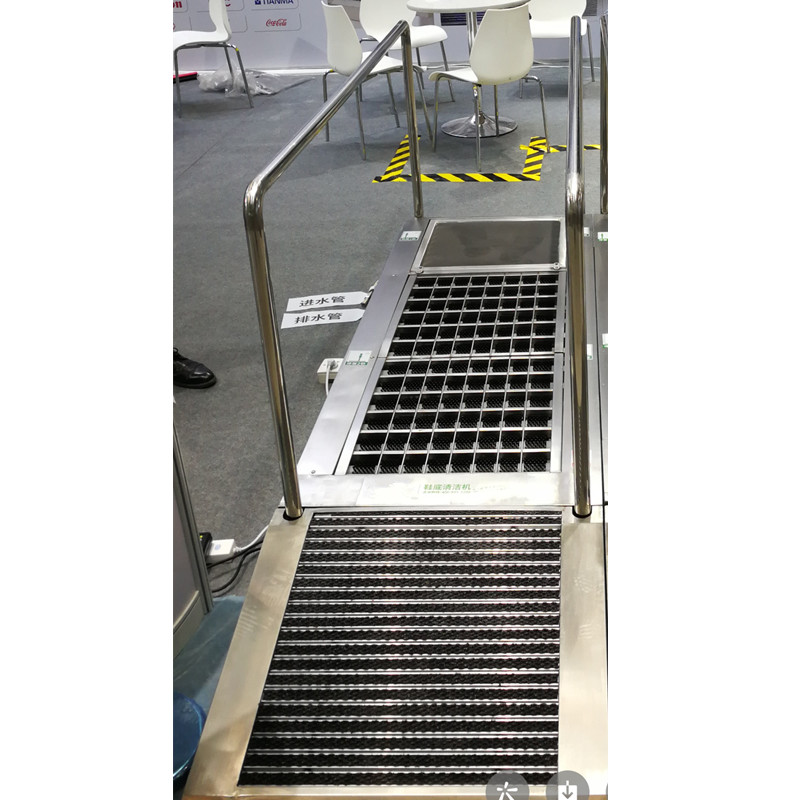

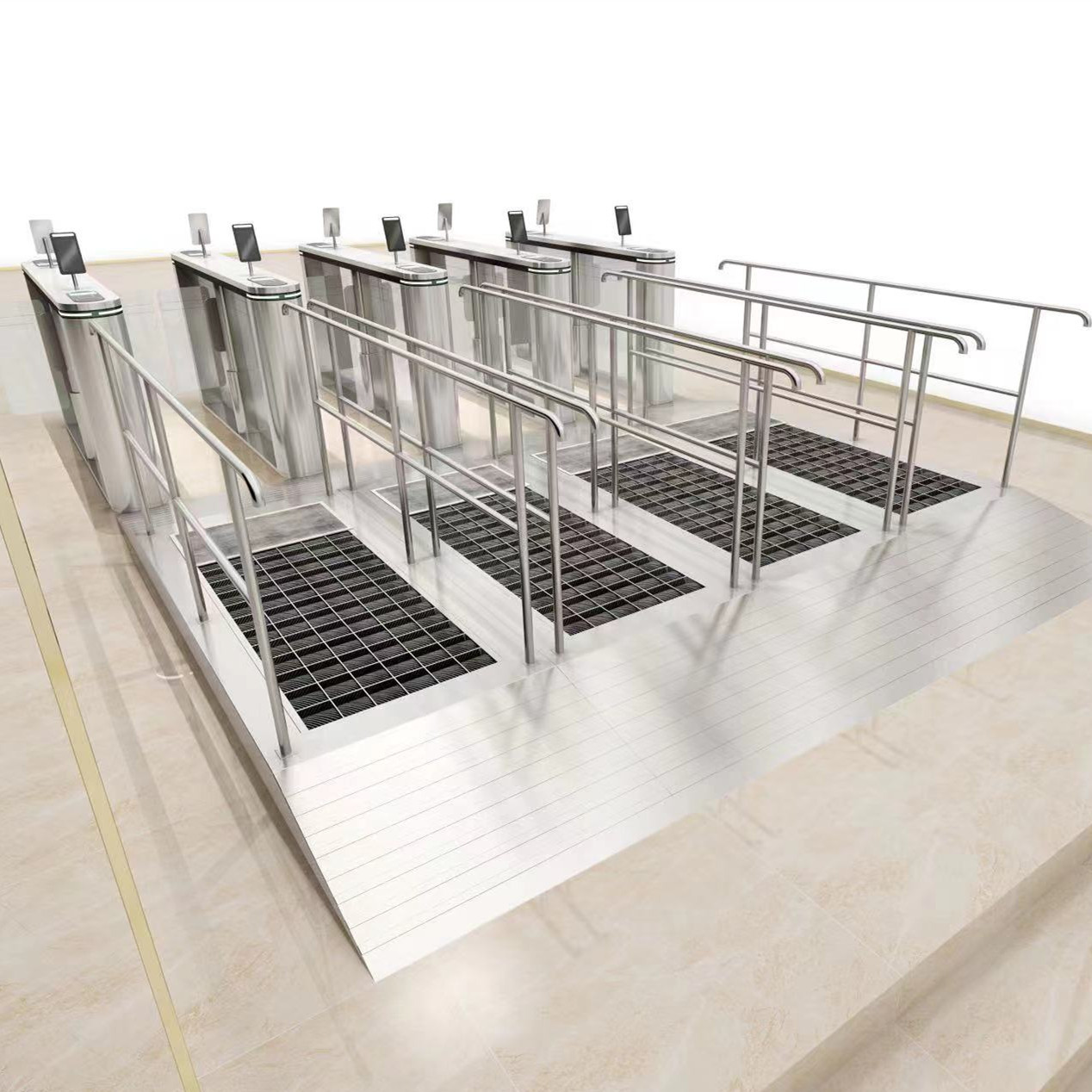

Automatic Roller Brush shoes cleaner Sole Cleaning Machine



Main structure

1.All-in-one welding, independent assembly,stable structure, large deformation resistance,smooth appearance and easy to maintain.

2.Modular design,Electronic control,sink and motor drive are independent compartment.Separation of water and electricity, safety is more guaranteed.

3. Unique brush independent quick release stucture, which is quickly removed by hand within 10 seconds. Greaty improve the cleaning and maintenance eficiency and avoid long time occupy passageway to clean and maintenance.



4. The foot pedal is made of stainless steel integrated welding bracket. Quickly replace and clean.



Dry zone

1.Multi-fold anti-slip board. The multi-fold structure improves the lateral support strength and increases the anti-slip ability of the falling water plate; the unique multi-folder side perforation structure prevents the water from flowing back.



2.The dry pad is composed of a high molecular polymer. Strong water absorption, pressure and extrusion resistance, light weight, dense and finepores.



Electronic control

1. PLC control system, stable and flexible setting; Optional version supports customize control program, remote monitor control

PLC running and status.

2. Using multi-point photoelectric liquid level sensor to break through the variable identification algorithm. Suitable for a wide range of applications, from clean water to "ink", from mixed water to sewage.

3. Using Omron infrared sensor, stable quality and strong applicability , Easy to achieve 5000 units without failure.



Brush

A little length brush hair. After a special design of cleaning brush, combined with mesh bracket, effective brush hair up to 5mm; can more effectively clean the deep-groove shoe sole, widely used in cleaning deep-groove safety shoes, boots and other applications.





Type Size Clean zone Dry zone Water Motor Pump Temperature Voltage Induction Switch Overload Weight
RW10 1025x525x140 455*320 340*314 8 L 90W 100W 0-40℃ 110/220V infrared 95KG 40KG
RW13 1338x768x140 640*510 441*500 15 L 140W 100W 0-40℃ 110/220V infrared 180KG 70KG
RW18 1838x768x140 1160*510 440*500 20 L 200W 100W 0-40℃ 110/220V infrared 280KG 90KG
RW28 2838x768x140 1800*510 819*500 30L 200W 100W 0-40℃ 110/220V infrared 400KG 160KG
