Alpha Clean Air Technology Co.,Ltd

Belt Brush Sole Cleaning Machine Embeded For Air Showering Room

Product Details:
Place of Origin: China
Brand Name: alphaclean
Certification: CE
Model Number: E18,E28,E38
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Standard export packing
Payment Terms: L/C, T/T
Supply Ability: 1000 Piece/Pieces
  • Detail Information
  • Product Description

Detail Information

Material: SUS Stainless Steel Type: Belt Brush Crawler Type
Application: Clean Room,clean Area Enterprise Of Semiconductor IT,HACCP,Phamaceutical,cosmetics,lab Use: Sterilizing,disinfecting
Name: Sole Cleaning System Machine Core Components: PLC,Engine
Warranty: 1 Year Dimension: 1838*768*135mm
High Light:

180W Sole Cleaning Machine

,

220V Sole Cleaning Machine

,

PLC Shoe Sole Cleaner

Product Description

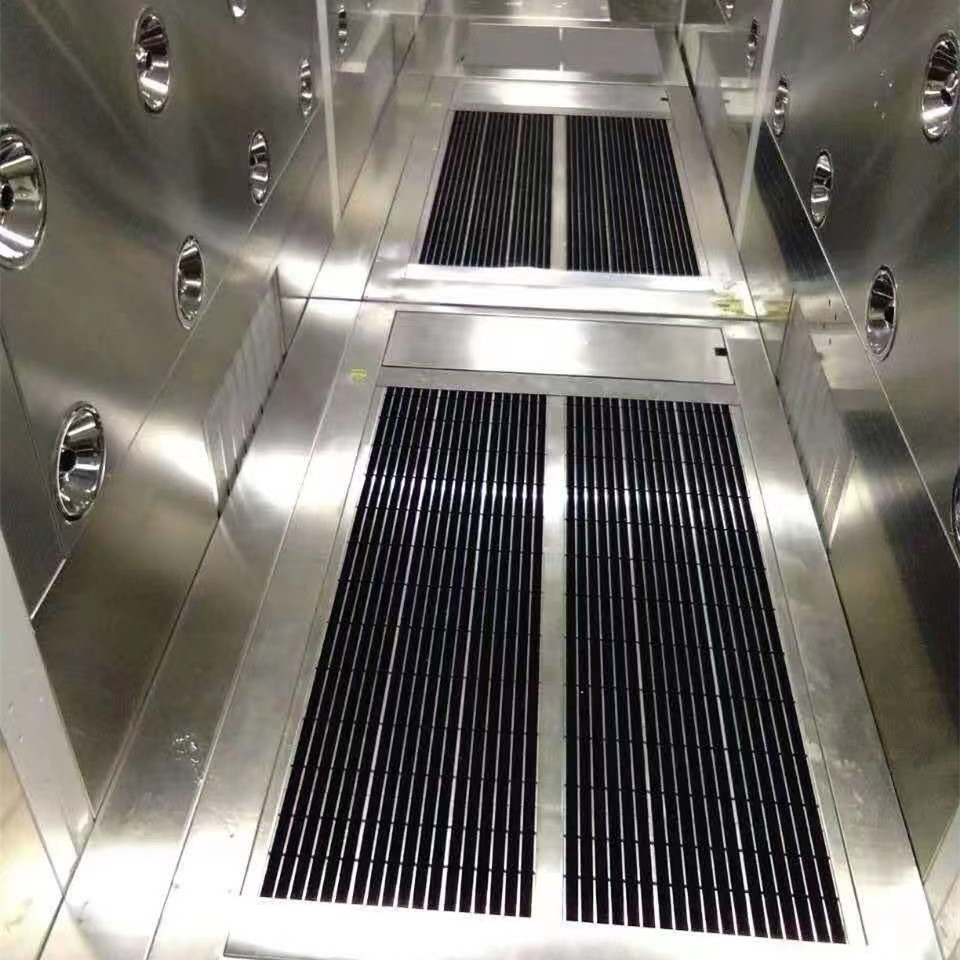

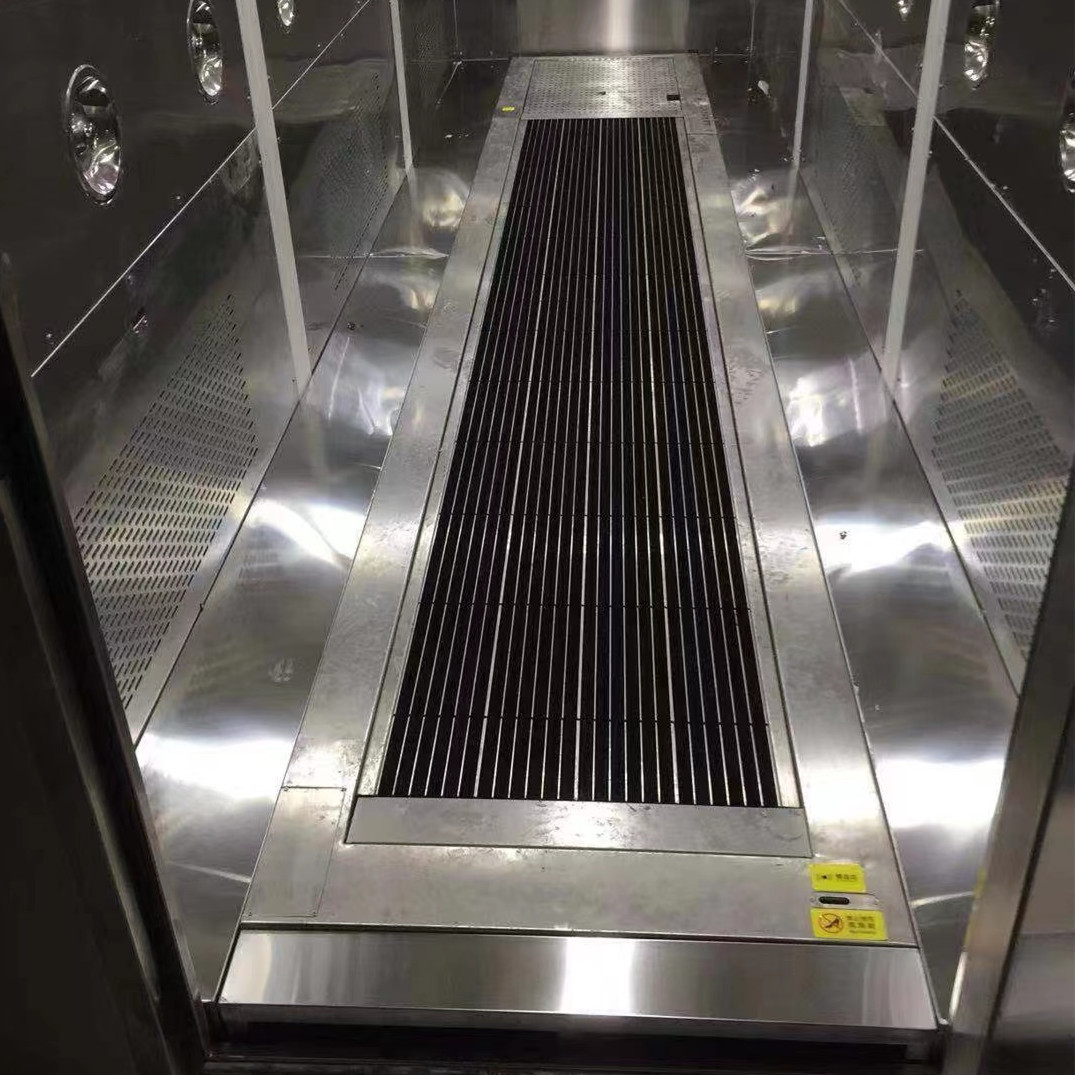

Belt Brush Sole Cleaning Machine Sole Cleaner Embeded In Air Showering Room



Main structure

1. All-in-one welding, independent assembly,stable structure, large deformation resistance,smooth appearance and easy to maintain.

2. Modular design,Electronic control,sink and motor drive are independent compartment.Separation of water and electricity, safety is more guaranteed.

3. lntegrated lift-up cleaning area design, Easily clean the sink,avoid cleaning dead comers and dirt.



Dry zone

1. Multi-fold anti-slip board. The multi-fold structure improves the lateral support strength and increases the anti-slip ability of the falling water plate; the unique multi-folder side perforation structure prevents the water from flowing back.



2.The dry pad is composed of a high molecular polymer. Strong water absorption, pressure and extrusion resistance, light welght, dense and finepores.



Electronic control

1. PLC control system, stable and flexible setting; Optional version supports customize control program, remote monitor control

PLC running and status.

2. Using multi-point photoelectric liquid level sensor to break through the variable identification algorithm. Suitable for a wide range of applications, from clean water to "ink", from mixed water to sewage.

3. Ulsing Omron infrared sensor, stable quality and strong applicability , Easy to achieve 5000 units without failure.



Brush

1. DuPont nylon bristles endless weaving,The belt is made of multi-layer nylon and PVC composite belt, 2mm thickness.Actually tested for 3 years without broken





Type Size Clean zone Dry zone Water Motor Pump Temperature Voltage Induction Switch Overload Weight
E085 850x500x120 365*340 310*350 6 L 75W 100W 0-40℃ 110/220V infrared 95KG 50KG
E13 1338x768x140 615*530 400*520 15L 140W 100W 0-40℃ 110/220V infrared 140KG 70KG
E18 1838x768x140 1115*530 400*520 20 L 180W 100W 0-40℃ 110/220V infrared 180KG 90KG
E28 2838x768x140 1680*530 819*500 31L 200W 100W 0-40℃ 110/220V infrared 280KG 160KG
E38 3838x768x140 2070*532 1460*506 48L 250W 100W 0-40℃ 110/220V infrared 400KG 220KG
