Clean Room High Lumen LED Panel Light 10-36V CCC CQC Approved

Product Details:
Place of Origin: China
Brand Name: alphaclean
Certification: CE
Model Number: LED
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Standard export packing
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs
  • Detail Information
  • Product Description

Detail Information

Light Source: LED Item: Panel Light
Lamp Body: Aluminum Alloy Input VoltageV: 10-36 V
Lamp Shede: Acrylic Certificate: CCC,CQC
Lamp Luminuousflux(lm): 540-7200 Color: Pure White
Color Temperature: 6500k/4500k/3300k Application: Clean Room,hospital,laboratory
High Light:

10V Flat LED Panel Light

,

CQC Clean Room LED Panel Light

,

36V Clean Room LED Panel Light

Product Description

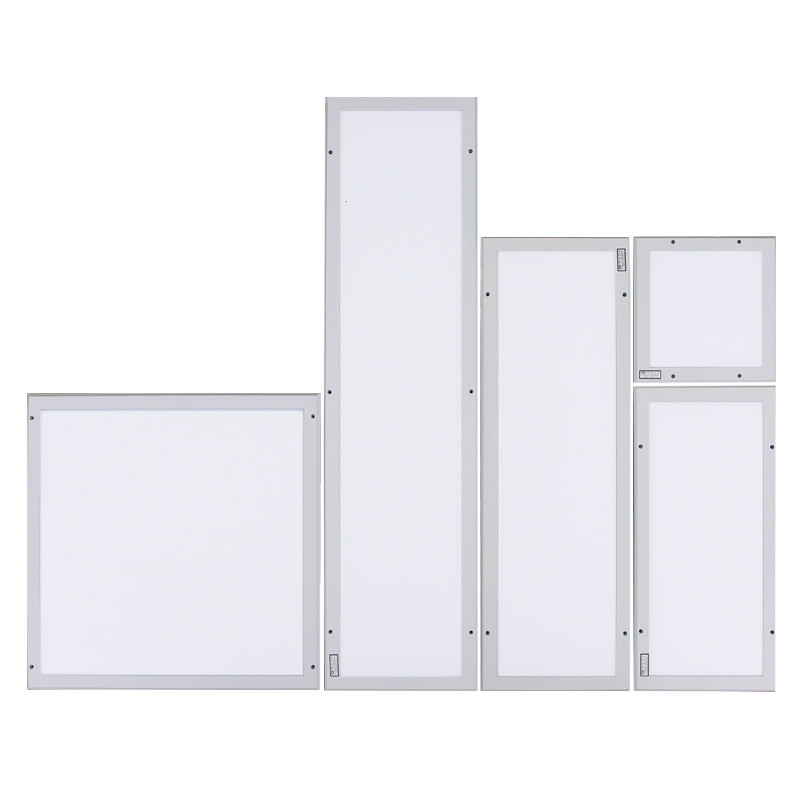

Clean Room High Lumen LED Panel Light



Lamp body:aluminum alloy



Lampshade:acrylic



light guide plate: PMMA,PS



Color temperature:6500k/4500k/3300k



Rated power:6-80w



Specification:300(L)*300(W)*8.5(H)

600(L)*300(W)*8.5(H)

900(L)*300(W)*8.5(H)

600(L)*600(W)*8.5(H)

1200(L)*300(W)*8.5(H)

1200(L)*600(W)*8.5(H)

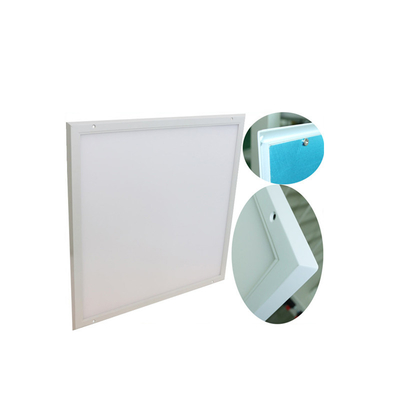

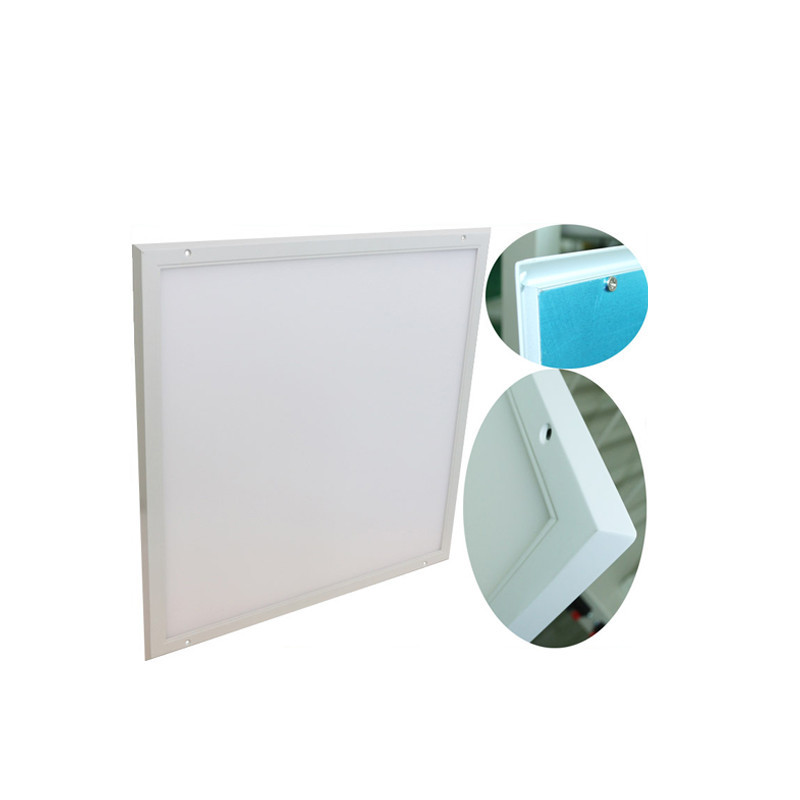

Product Features of Narrow Frame LED Panel Light

 Our products, with invisible structure and unique appearance.

 Aluminum Narrow Frame with 8mm.and there are white color and silver color options.

 Use high brightness low decay Epistar SMD led chip with better heat dissipation.

 Use PMMA light guide plate with light transmittance up to 95%. What's more, PMMA LGP will not turn yellow after using long years.

 With strong functional and decorative effects, It has the advantages of stability, easy to install

 Corrosion prevention, moisture proof, sound absorbing and inflaming retarding.



Model Size (mm) Color temperature CCT(K) Input voltage (v) Power(W) RA Luminous flux (Lm) Warranty
X3030WHZ 300*300*8.5 6500-7000K 100-240/220-240 18 >80 1620 2 years
X3060WHZ 300*600*8.5 6500-7000K 100-240/220-240 28 >80 2520 2 years
X3090WHZ 300*900*8.5 6500-7000K 100-240/220-240 38 >80 3420 2 years
X6060WHZ 600*600*8.5 6500-7000K 100-240/220-240 48 >80 4320 2 years
X30120WHZ 300*1200*8.5 6500-7000K 100-240/220-240 48 >80 4320 2 years
X60120WHZ 600*1200*8.5 6500-7000K 100-240/220-240 78 >80 3600-4000 2 years
Clean Room High Lumen LED Panel Light 10-36V CCC CQC Approved 0
