Easy Installation Surgery Operating Theatre Room Modular Panel Assembly

Product Details:
Place of Origin: guang dong,China
Brand Name: alphaclean
Certification: CE
Model Number: OT010R01Q
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 40-70 USD per square meter
Packaging Details: Standard export packing
Payment Terms: L/C, T/T, Western Union, D/A, D/P
  • Detail Information
  • Product Description

Detail Information

Material: Resin,laminated Board Fire Proof Application: Hospital,ICU,ward Operating Room
Color: Blue, White,green ,optional Feature: Modular,quick Assembly
Service: Free Operating Training,overseas Installation Class Level: Class 100~10000
Instrument Classfication: Class II HEPA Filter: H13 H14 99.99% 99.997%@0.3 Micro
High Light:

Resin Operating Theatre Room


Modular Operating Theatre Room


Modular Panel Assembly ISO Clean Rooms

Product Description

Easy Installation Operating Theater Surgery Room Modular Panel Assembly


Operating Theatre Surgery Room consists on wall panels, ceiling panels, interior doors and windows.
The System is designed for operating theatres, treatment rooms and rooms in which high sanitary and hygienic standards are required.

Our products are designed and manufactured according to ISO 9001:2000 standards.
We prepare each project according to individual needs and demands of our customers.

alphaclean provides one-stop service in clean room such as hospital operating room, ICU, ward,
pharmaceuticals,bio-lab and so on. We provide all process from design, manufacturing, installation to after-sales service, The whole project contains the following parts.


Cleanliness Available from class 100~10000



Design Scope
(from structure, HVAC,
electric to auto-control)

1. Structure: Wall Panel, Ceiling filtering system, Windows, Doors, Various Fittings, Flooring
2. HVAC: AHU, Ducting, Piping, Chiller, dehumidifier, etc.
3. Electric: Lighting, Switch, Cables, Wires, Power Distribution Cabinet, etc
4. Auto-control: PLC Controller, Sensors for Humidity and Temperature, Control Panel
5. Medical Gas System: Medical gas terminal, medical gas pipeline
Temperature 21-27℃ (or as per required)

30-60℃ (or as per required)




















Main product

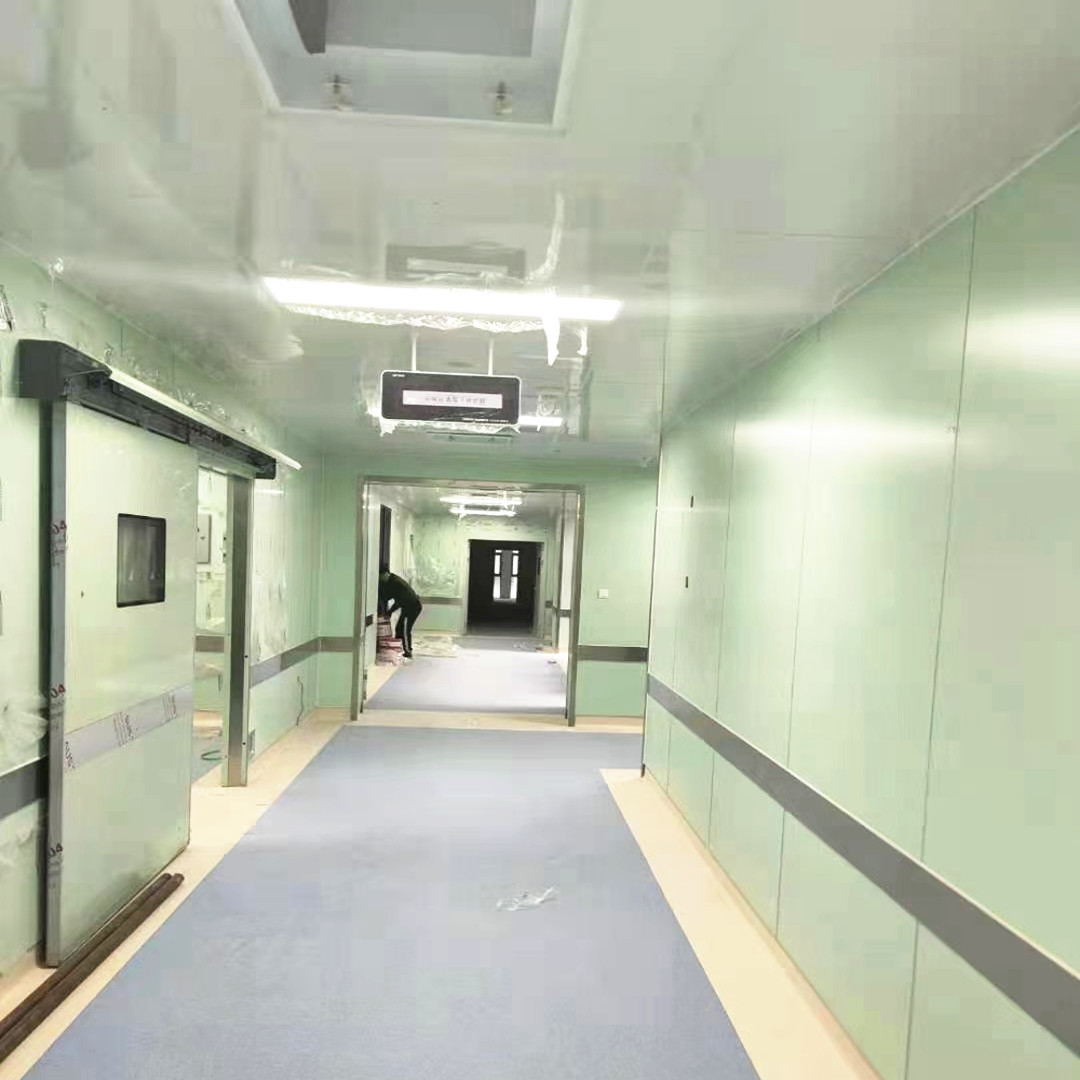

Easy Installation Surgery Operating Theatre Room Modular Panel Assembly 0

PVC Filmed steel wall panels

1:dust-proof and Antibacterial

2:can't be scratched by cart or sharp items

3: no fingerprint,easy to clean

Air tight sliding door

1. Door material: Galvanized sheet.

2. Door color: optional.

3. Rail material: aluminum alloy.

4. Flammability class: A2.

5.Opening/closing speed: 350-650mm/sec.

6. Opening staying time: 0.1-0.9s adjustable.

7. Safety function: Obstacle can open
immediately when opening and closing

8. Power: 220V±10% 50/60HZ.

9. Glass window: 400*600.

10 .Size : 1500*2100mm.

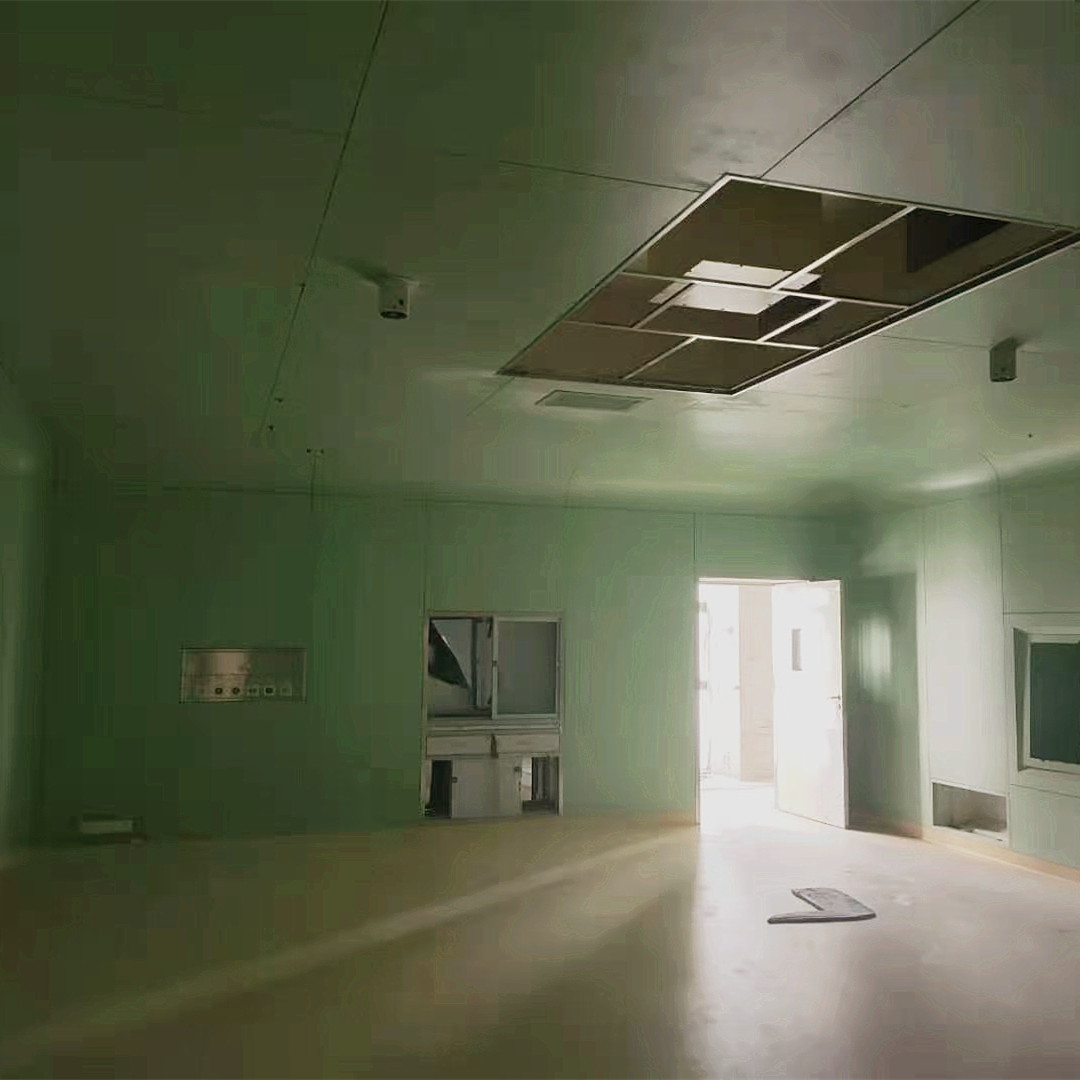

Easy Installation Surgery Operating Theatre Room Modular Panel Assembly 1
Easy Installation Surgery Operating Theatre Room Modular Panel Assembly 2

OT Control system

1. Turn ON or OFF the system power

2. Main Interface.
3. Air conditioning system.
4. System parameter setting interface.
5. Background music / MP3 interface.
6. Telephone interface.
7. Easy dial interface.
8. Medical gas interface.
9. Centralized control screen.

Operating room air ceiling laminar flow

1. Material: Electrolytic plate, cold plate spray, stainless steel production.

2. Size: according to cleanliness request.100-10000 class.
3. Technics: Paint electrolytic steel plate,Polymer coated electrolytic steel plate.
4. High efficiency filter: include H14


Easy Installation Surgery Operating Theatre Room Modular Panel Assembly 3
Easy Installation Surgery Operating Theatre Room Modular Panel Assembly 4

Stainless steel cabinet

Include 3 set cabinet:
1. Medicine cabinet
2. Instrument cabinet
3. Anesthesia cabinet



there are other product we can provide also :

Operating Tables
Operating Theatre Control Panels
Operating Theatre Equipment
Operating Theatre Lighting
Operating Theatre Pendants
Audio-Visual systems and integration
Hygiene monitoring
Infection Prevention
Control Isolated Power Supplies
LED Lighting
Membrane Control Panels
Surgical Teaching Links
Telemedicine Entoli Medical Touch Screen Control Panels
Uninterruptable Power Supplies (UPS)
