Product Details:
|
|
| Place of Origin: | guang dong,China |
|---|---|
| Brand Name: | alphaclean |
| Certification: | CE |
| Model Number: | OT010R01Q |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1set |
| Price: | 40-70 USD per square meter |
| Packaging Details: | Standard export packing |
| Payment Terms: | L/C, T/T, Western Union, D/A, D/P |
|
Detail Information |
|||
| Material: | Resin,laminated Board Fire Proof | Application: | Hospital,ICU,ward Operating Room |
|---|---|---|---|
| Color: | Blue, White,green ,optional | Feature: | Modular,quick Assembly |
| Service: | Free Operating Training,overseas Installation | Size: | On Request |
| Cleanliness: | Class 100~10000 | Instrument Classfication: | Class II |
| High Light: | H14 Filter Operation Theatre Room,PLC Controller Operation Theatre Room,Resin ISO Clean Rooms |
||
Product Description
Quick Install Modular Operation Theatre Room For Hospital
With the continuous development of current medical science and technology, the design and construction of the operating department of the hospital has realized the modern diversification of functions. In order to meet the purification requirements and the tension design requirements, the fast-loading modular operating room is designed according to the above requirements, and after more than ten years of improvement, it is reliable, economical and practical. It has been adopted by large and medium-sized hospitals at home and abroad, and the overall model is quick to install, easy to install, firm and reliable, and cost-saving; the construction time can be completed in 2 days.
OT room specification
| Cleanliness | Available from class 100~10000 |
|
Design Scope |
1. Structure: Wall Panel, Ceiling filtering system, Windows, Doors, Various Fittings, Flooring |
| 2. HVAC: AHU, Ducting, Piping, Chiller, dehumidifier, etc. | |
| 3. Electric: Lighting, Switch, Cables, Wires, Power Distribution Cabinet, etc | |
| 4. Auto-control: PLC Controller, Sensors for Humidity and Temperature, Control Panel | |
| 5. Medical Gas System: Medical gas terminal, medical gas pipeline | |
| Temperature | 21-27℃ (or as per required) |
| Humidity |
30-60℃ (or as per required) |
Main product
|
|

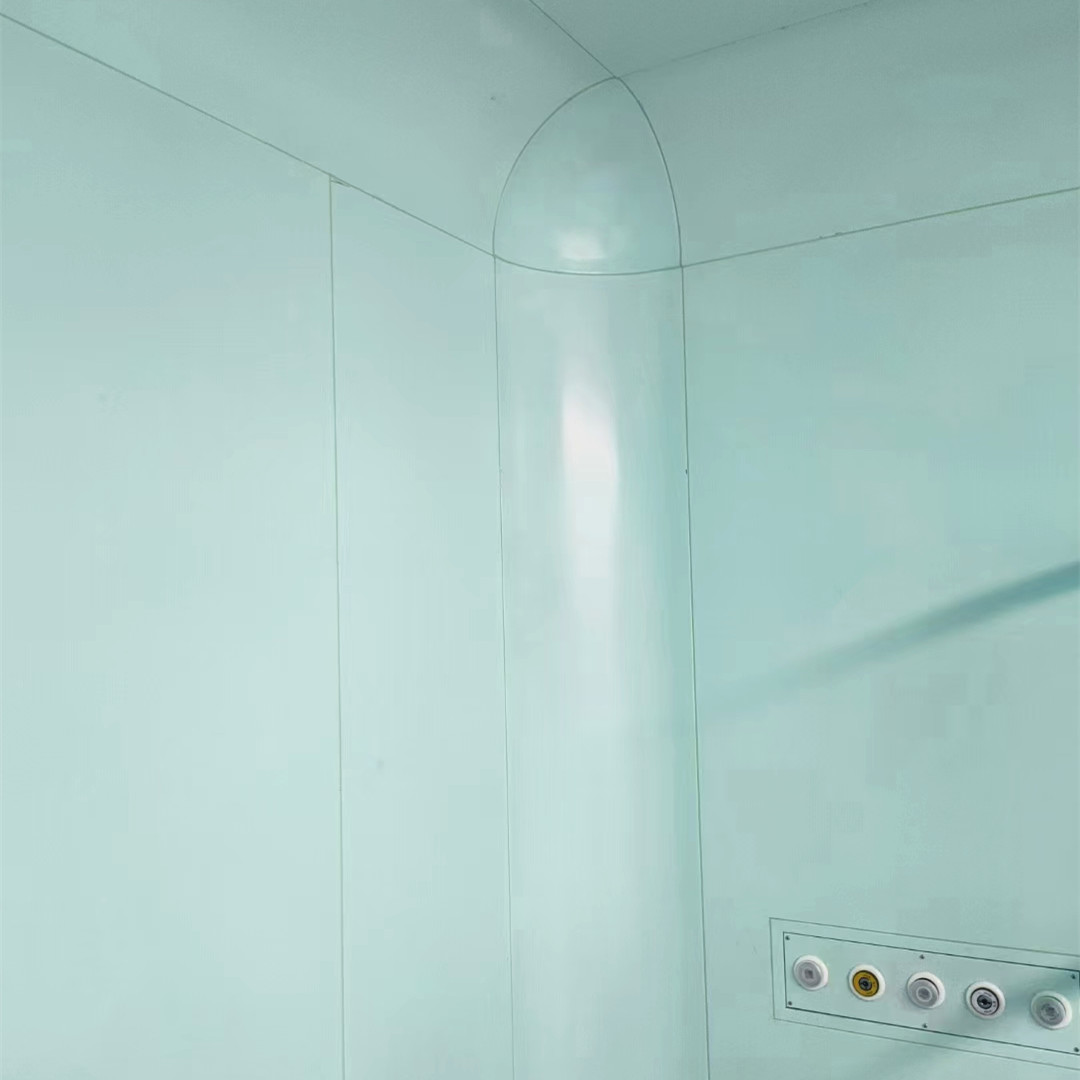

PVC Filmed steel wall panels 1:dust-proof and Antibacterial 2:can't be scratched by cart or sharp items 3: no fingerprint,easy to clean |
|

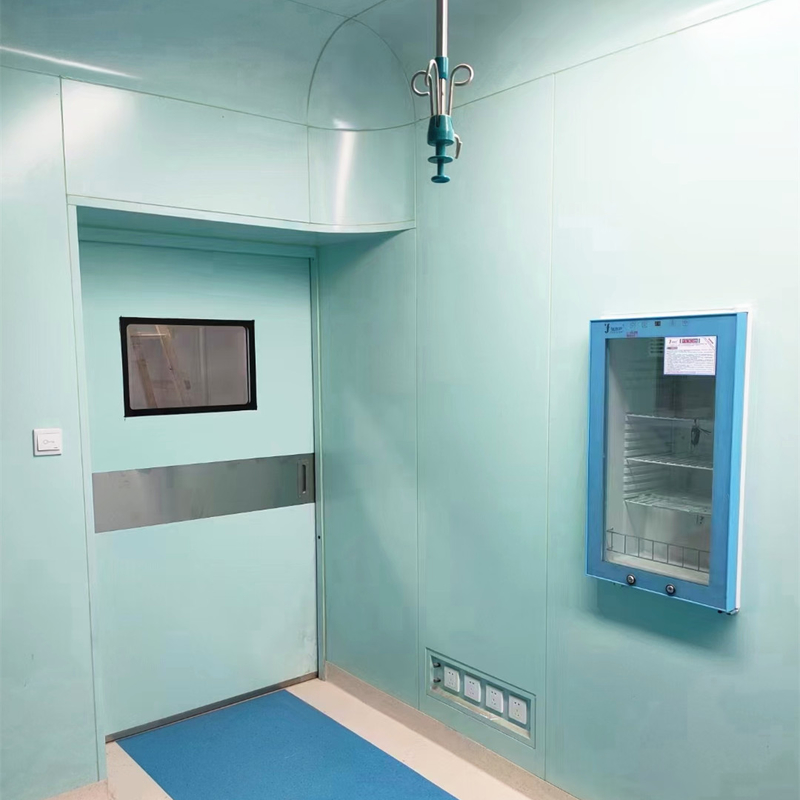

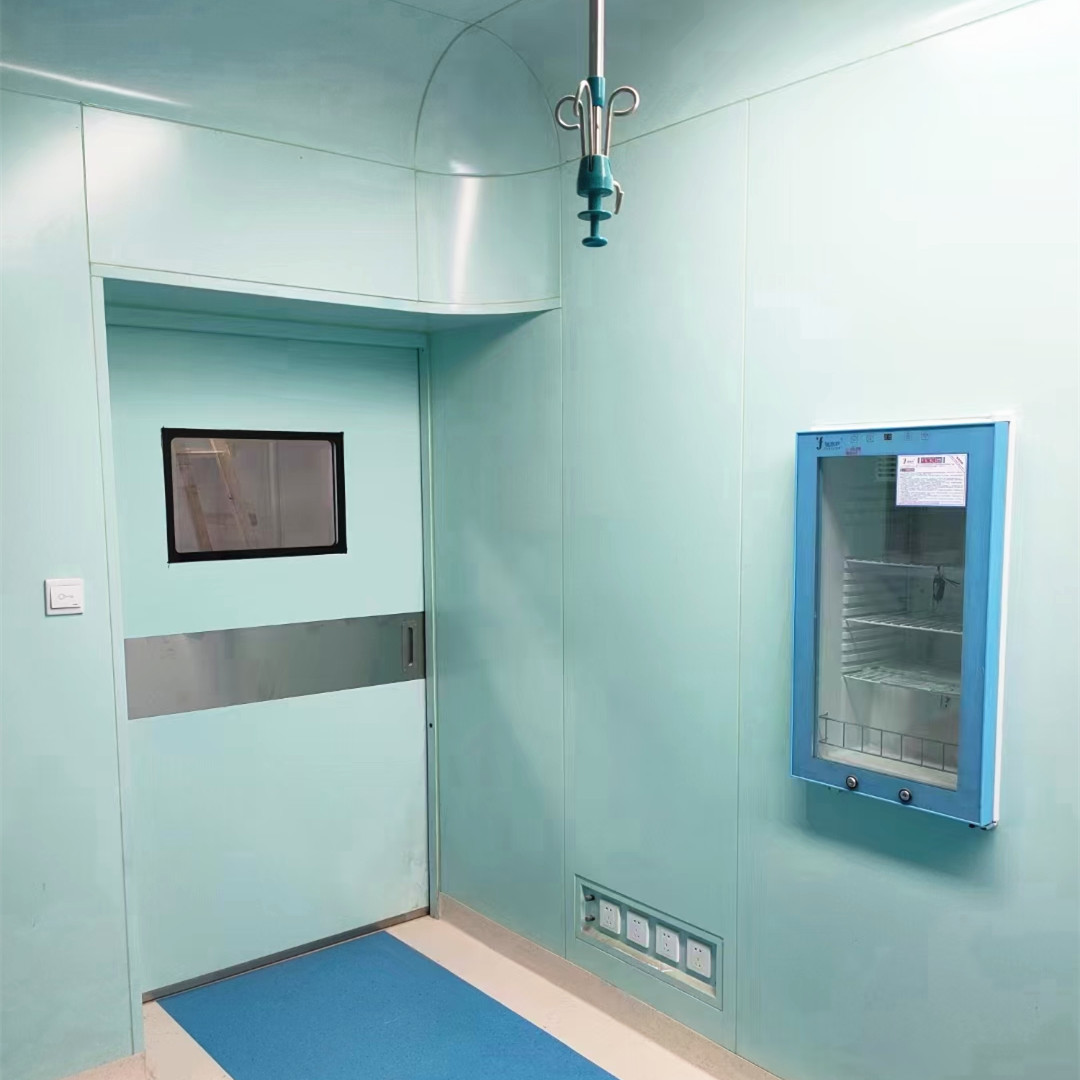

Air tight sliding door 1. Door material: Galvanized sheet. 2. Door color: optional. 3. Rail material: aluminum alloy. 4. Flammability class: A2. 5.Opening/closing speed: 350-650mm/sec. 6. Opening staying time: 0.1-0.9s adjustable. 7. Safety function: Obstacle can open 8. Power: 220V±10% 50/60HZ. 9. Glass window: 400*600. 10 .Size : 1500*2100mm. |
|
|
OT Control system 1. Turn ON or OFF the system power 2. Main Interface. |
|

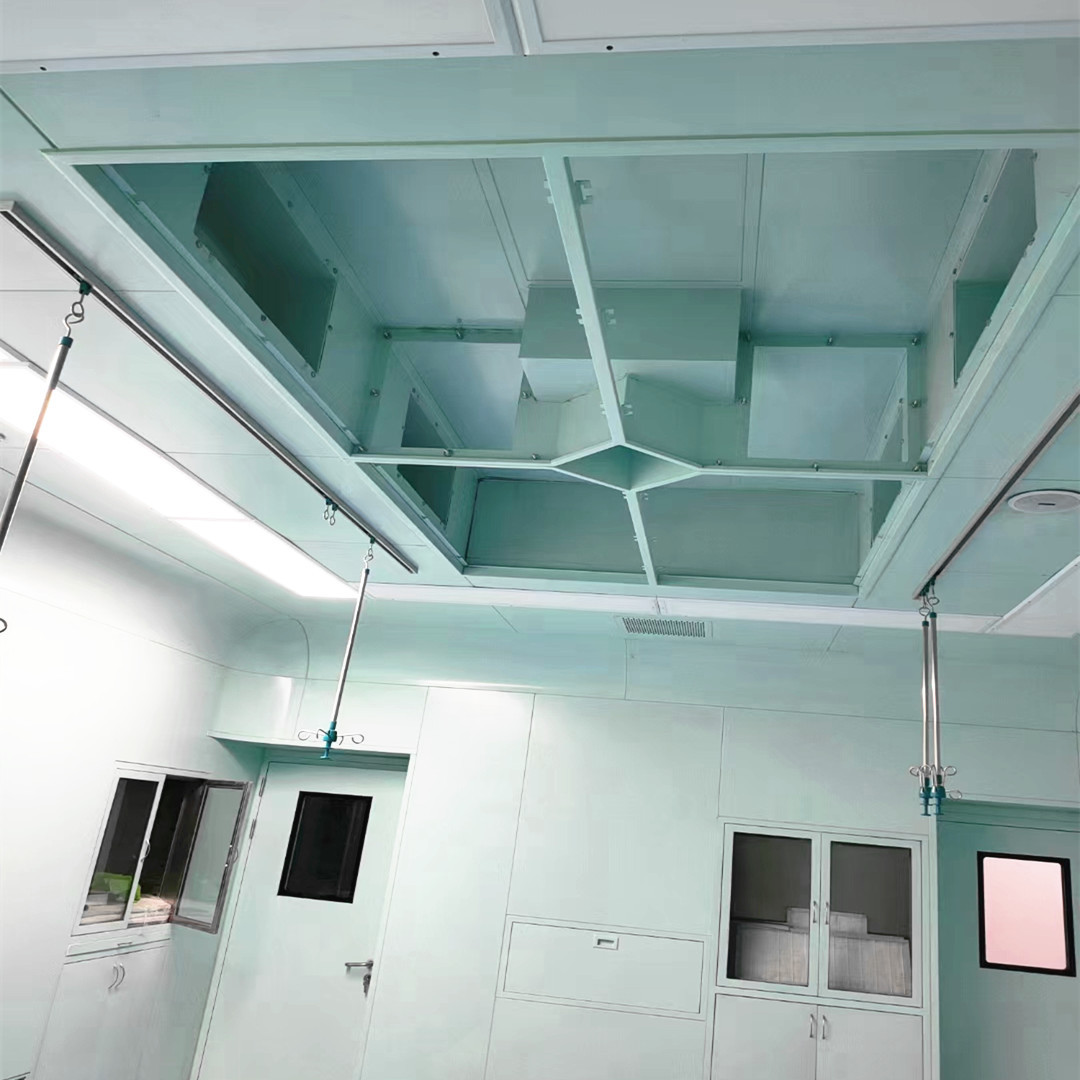

Operating room air ceiling laminar flow 1. Material: Electrolytic plate, cold plate spray, stainless steel production. 2. Size: according to cleanliness request.100-10000 class.
|
|
|

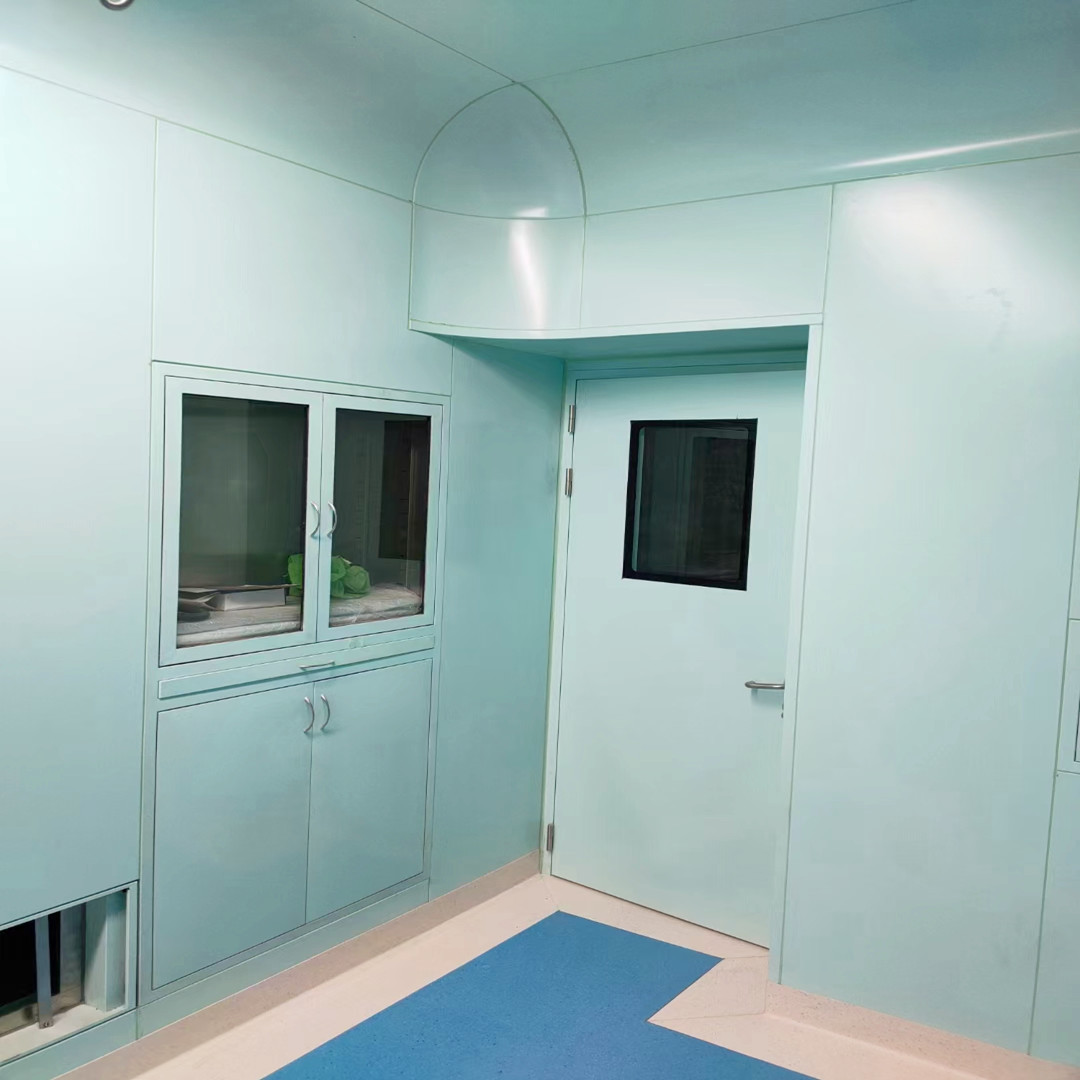

Stainless steel cabinet Include 3 set cabinet:
|
