Product Details:
|
|
| Place of Origin: | china |
|---|---|
| Brand Name: | alphaclean |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Polywood packing |
| Delivery Time: | 10 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100sets |
|
Detail Information |
|||
| Material: | Coated Color Steel | Size: | 1200*800*2350mm/1500*800*2350mm/1800*800*2350mm |
|---|---|---|---|
| Noise: | ≤62dB(A) | Application: | Class 100 Lab / Laboratory Clean Room |
| Air Flow: | Downflow | Hepa Filter: | 99.999% Efficiency At 0.3um |
| Display: | LED Display | ||
| High Light: | Desktop Laminar Flow Hood,Stainless Steel Laminar Flow Hood,Laminar Flow Clean Air Bench |
||
Product Description

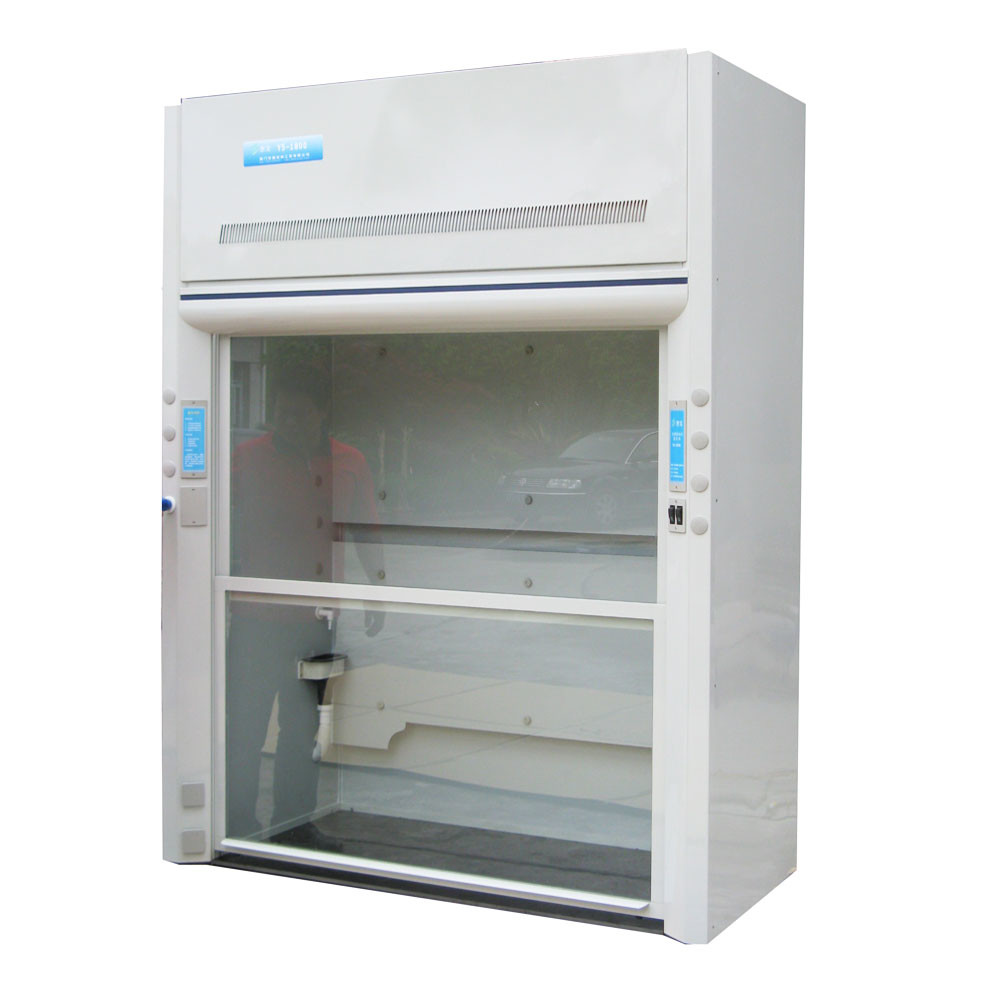

Class 2 Anti Acid Desktop Laminar Flow Hood Adopt 30W Fluorescent Lamp

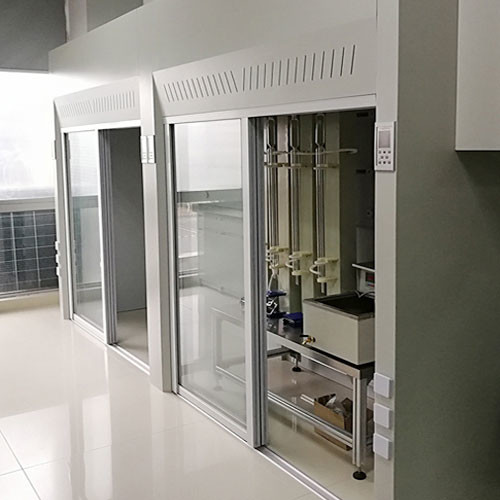

Walki-In Fume Hoods Anti Acid And Alkali Resistant
Description
A. Structural combination: the use of integral combined cabinets, independent water, electricity, and pipeline system containment cabinet design.
B. Outer panic: It is made of steel sheet stamping and forming with a thickness of 1.2mm or more, and the surface is treated with acid and alkali resistant EPOXY powder baking paint.
C. Inner shell: imported acid and alkali resistant fume hoods are specially lined with fume hoods, with a thickness of 6mm and a color surface SOLID PHENOLIC RESIN COMPOSITE LINER
Laminated chemical board installation.
D. Lighting: adopt 30W fluorescent lamp.
E. Handle: SUS304 stainless steel matt square handle.
F. Airflow plate: Adopt special anti-double special airflow plate for 5mm thick fume hood. The installation position and angle need to make the exhaust distribution even, no dead corners. Under standard conditions, guide
The air outlet ratio of the upper, middle and lower air outlets of the flow plate is about 50+10% respectively to ensure that the gases of different specific gravity can be effectively eliminated, and the ratio of the air outlets can be manually adjusted.
Case design can increase the ratio of the air outlet at the middle and lower air outlets to more than 80% to meet the needs of different experiments.
G.: Use 5mm thick tempered explosion-proof glass. The internal pituitary balance device can stay in any position up and down.
H. Cabinet operation [door opening height above and below: 600 ~ 700mm.
1. Wind speed on working surface: 0.25 ~ 0.38m/s.
J. Exhaust air volume: 1080 ~ 1400m3/h.
K. Exhaust resistance: 5~ 12mmH2O.
L. Working voltage: AC220V ~ 380V.
M. Motor power: 0.04 ~ 2.2kw.
0. Electrical accessories: use socket (220V/10A), light, fan to start and stop control.
P.. Sheung Shui: 1 set of DN25. (Configure according to user requirements)
Q. Launching: 1 set of DN50. (Configure according to user requirements)
R. Air outlet size: φ300mm.
S. Fan: Made of glass fiber reinforced plastic, resistant to acid and alkali, and anti-aging.
| Product Name | walki-in fume hoods anti Acid and alkali resistant | Product NO. | L |
| Material | aluminum | Size | 4500*1500*900mm |
| Desk Top | MDF, PP, HPL... | Brand Name | |
| MOQ | 1 Sets | Delivery Time | 15~30days |
| Accessories | Socket, Faucet, Gas Fitting, Eyewash, Light,Etc | ||
