Product Details:
|
|
| Place of Origin: | china |
|---|---|
| Brand Name: | alphaclean |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Polywood packing |
| Delivery Time: | 10 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100sets |
|
Detail Information |
|||
| Name: | Vertical Laminar Air Flow Clean Cabinet | Size: | 1 Person Working |
|---|---|---|---|
| Noise: | ≤50dBA | Air Flow: | Downflow |
| Hepa Filter: | 99.999% Efficiency At 0.3um | Weight: | About 48 Kg |
| Highlight: | 50dBA Laminar Flow Clean Bench,50dBA Vertical Laminar Flow Hood,48 kg Laminar Flow Clean Bench |
||
Product Description

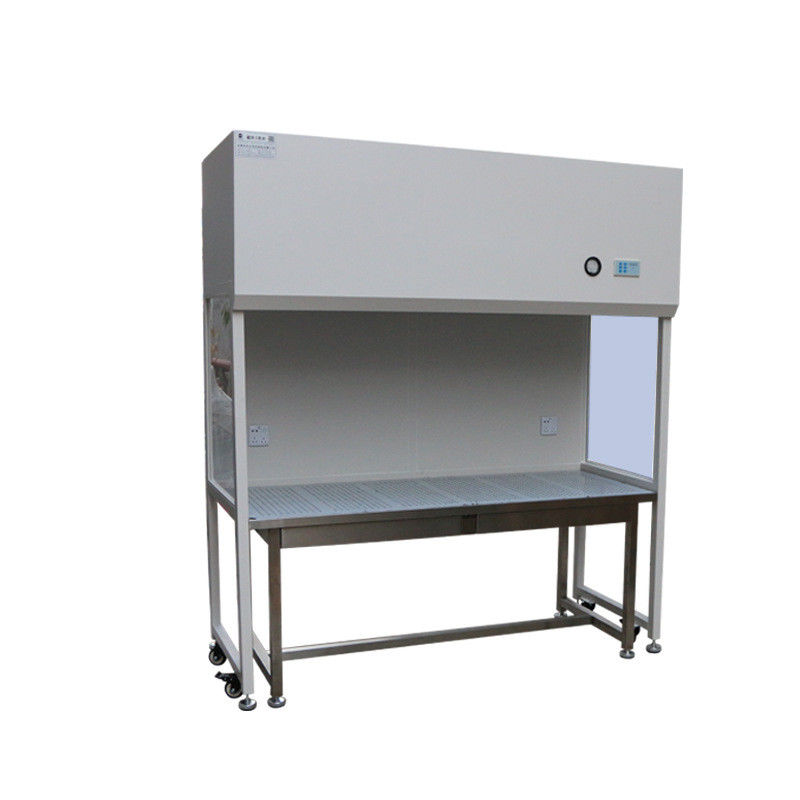

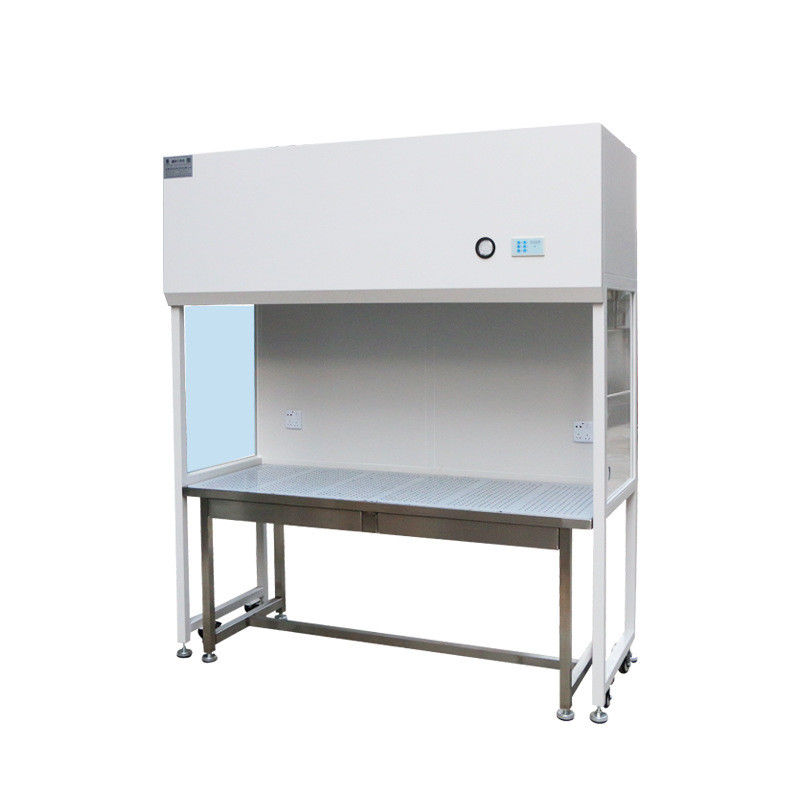

Vertical Air Low Noise 50dBA Laminar Flow Clean Bench With Split Table
Vertical Laminar Flow Hood Air Flow Bench With Split Table
Introduction :
Vertical Laminar Air Flow Clean Carbinet is a kind of clean air equipment that provides local clean an sterile working environment , which can make the working area meet the requirement of 100% purification . Comparing with building clean rooms , this equipment reduces cost in initial investment and operating cost and create a favorable environment for improving the production quality and yield .
Application :
Electronics , Semi - conductors, Medicine and Health , Biological pharmaceuticals , Aerospace , Aseptic laboratory , Scientific research , Food , Hard-disk manufactory , Precise instrument , Opto - electronics
Operation Features :
1. The air moves downward from filter positioned in the ceiling toward to the working area .
2. Vertical Laminar Clean Air Flow cabinet offers the benefits of vertical airflow around objects on the work surface and horizontal outflow through the work access opening acting as a barrier against contamination .
3. The work surface on each vertical laminar air flow clean carbinet is constructed from stainless steel for easy cleaning and decontamination .
4. Wind velocity can be adjusted with optional wind velocity controller .
5. The design of glass on the two side windows and no front sash ensure a bright and spacious working area .
6. Easily and flexibly moving with high quality casters and conveniently and reliably fixation with support legs .
7. High efficiency and high cleanliness .
8. low noise level of 50dBA.
| Product Name | Vertical air low Noise 50dBA Laminar Flow Clean Bench With Split Table | Product NO. | L |
| Material | aluminum | Size | 4500*1500*900mm |
| Desk Top | MDF, PP, HPL... | Brand Name | |
| MOQ | 1 Sets | Delivery Time | 15~30days |
| Accessories | Socket, Faucet, Gas Fitting, Eyewash, Light,Etc | ||
![]()
![]()
Illustration:
1: Pre - filter , 2: Centrigugal blower , 3: Pressure gauge , 4; Mini-pleats Hepa filter , 5:Control panel , 6; Fluorescent lamp , 7; Toughhened glass , 8; Socket , 9: Working table ( SUS ) , 10: Removable wheel , 11; Support leg
